Actuators TC1 and TC2 can initiate a two-hand cycle if the mute enable ME1 is not active.
ME1 must be active for the MSP1 mute sensors to keep the SO On after the TC1 and TC2 actua-
tors are in the Stop state.
Two Hand Control
with Muting
M0:ME1
M0:SO1
M0:TC1
M0:TC2
A1 Output
M0:MSP1

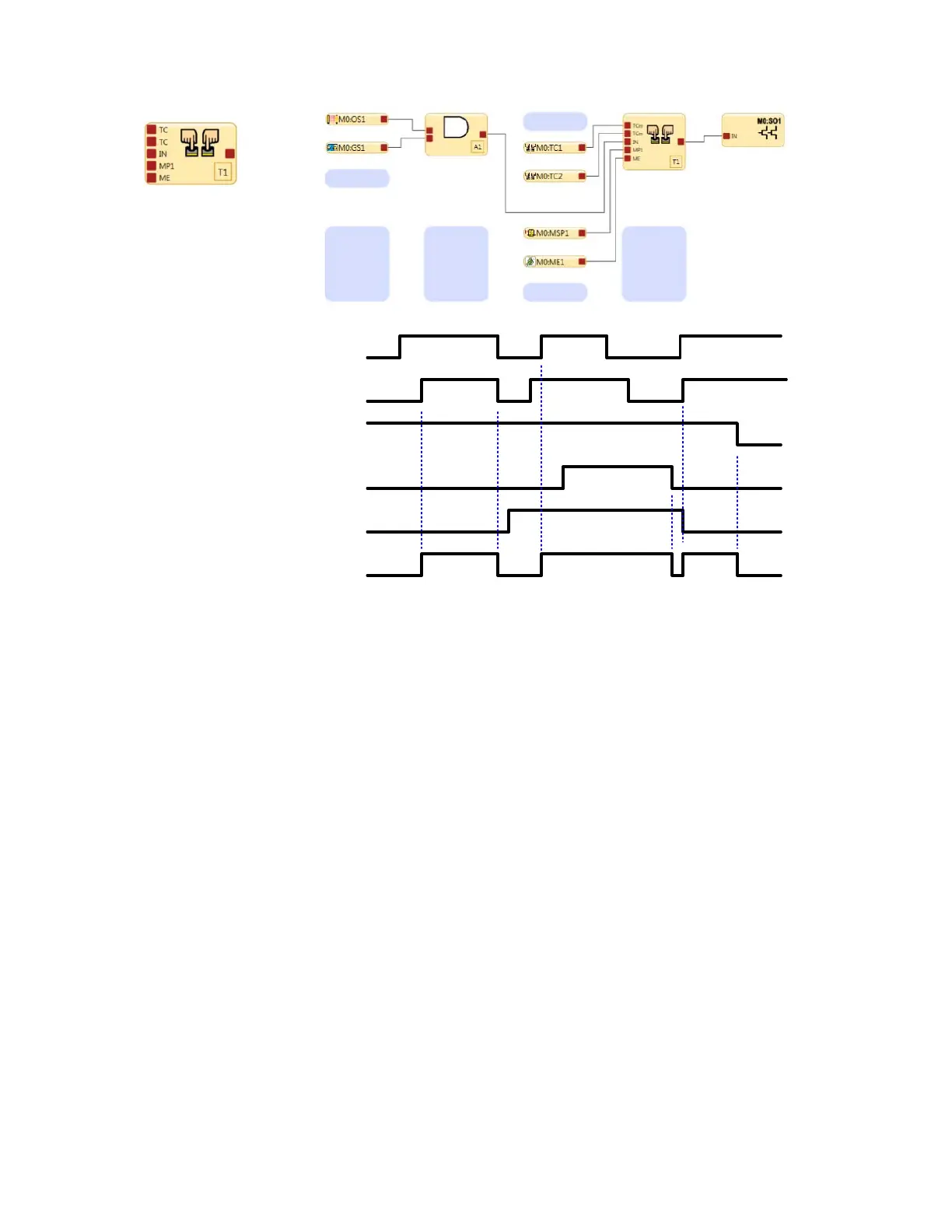

Figure 83. Timing Diagram—Two-Hand Control Block with Muting
Two-Hand Control Activation on Power-Up Protection. The Safety Controller’s two-hand control logic does not permit the
assigned safety output to turn On when power is initially supplied while the THC actuators are in their Run state. The THC
actuators must change to their Stop state and return to the Run state before the Safety Output can turn On. A Safety
Output associated with a Two-Hand Control device will not have a manual reset option.
