9.6 Wiring Diagram Tab

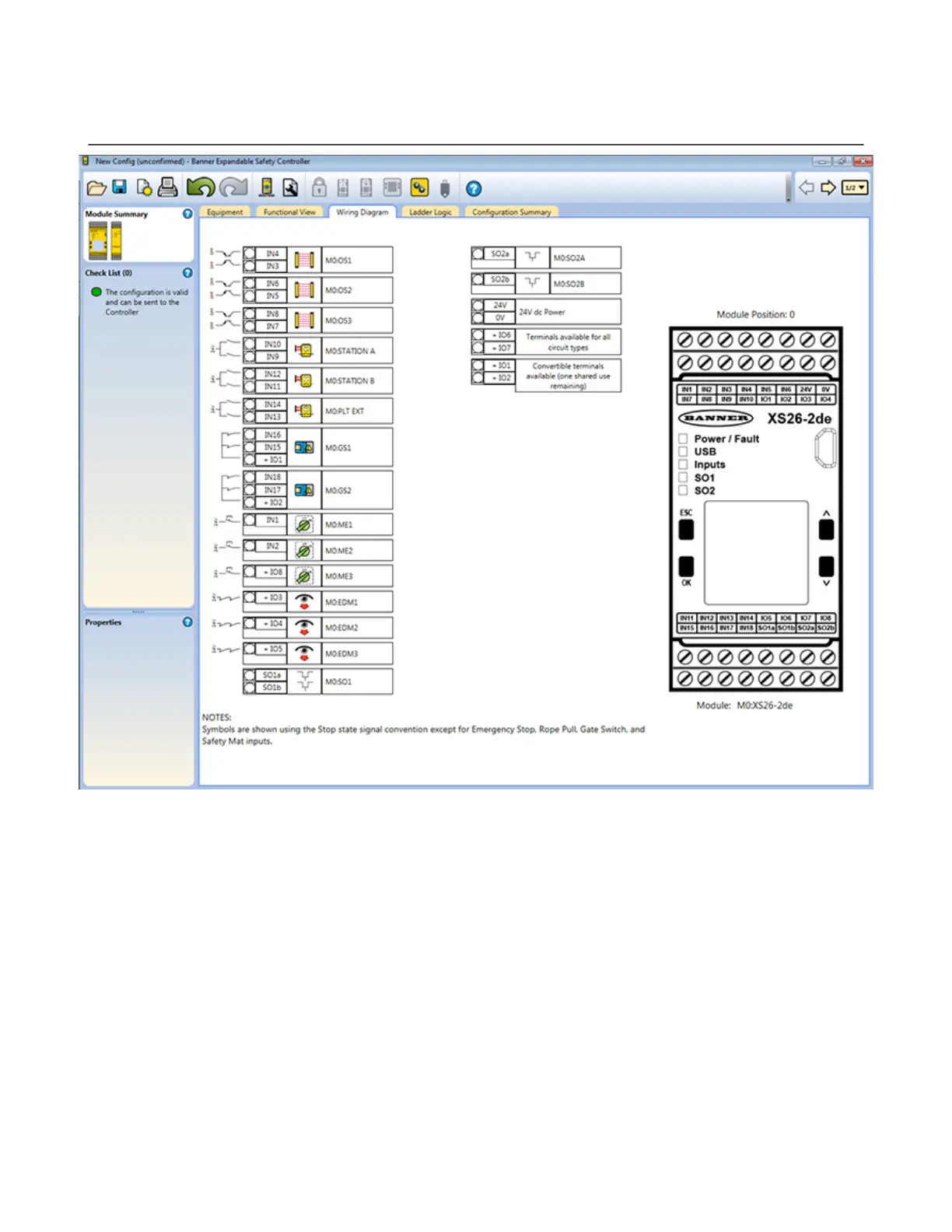

Figure 84. Wiring Diagram Tab—XS26-2
The Wiring Diagram tab shows the terminal assignments and the electrical circuits for the safety and non-safety inputs,
Safety Outputs, and status outputs, and any terminals that are still available for the selected module. Use the wiring
diagram as a guide to physically connect the devices. Navigate between modules using the Page Navigation toolbar at the
top right corner of the Software.
