Accessory jack
The accessory jack on the BaoFeng BF-F8HP is a Kenwood compatible two (2)-pin design.

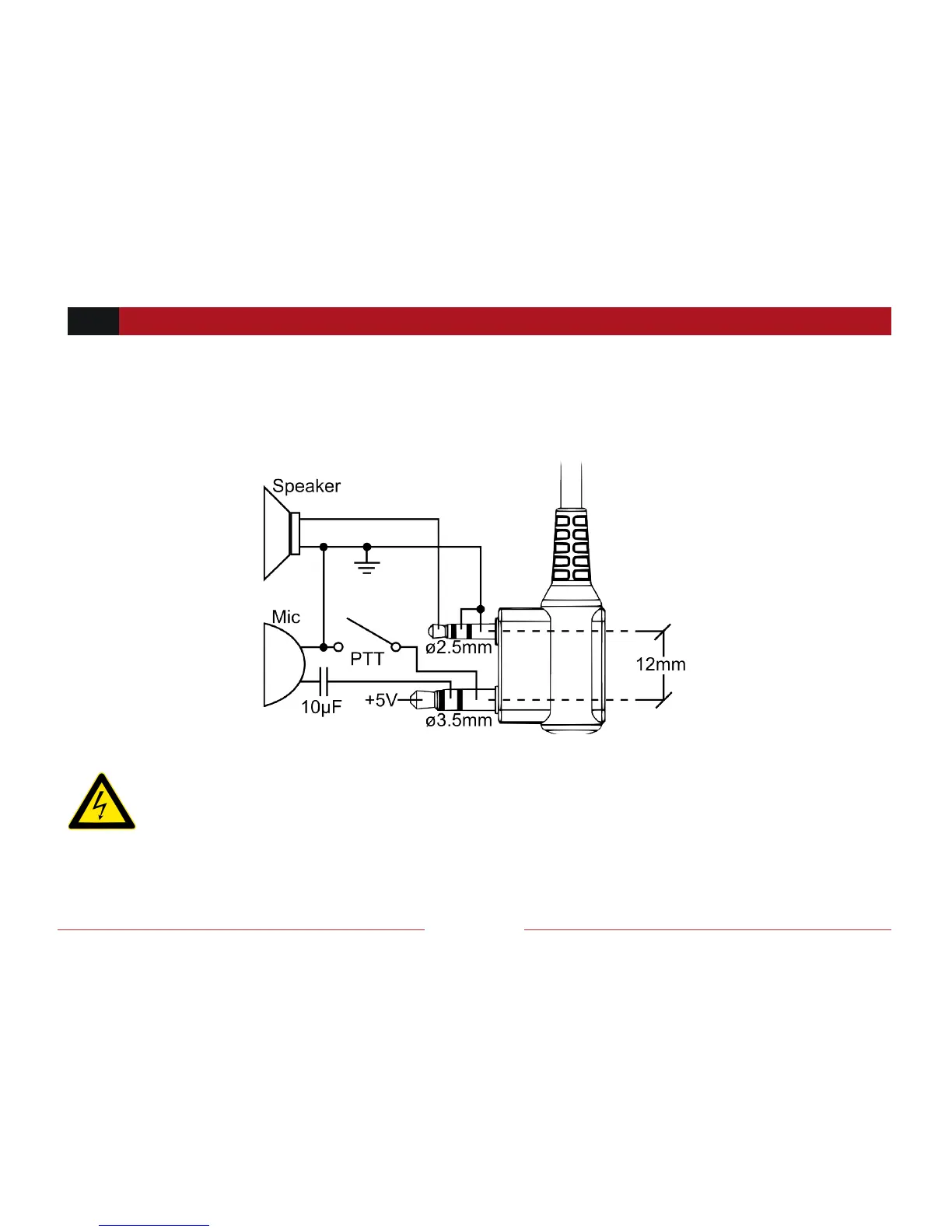

Figure 2.4. Typical 2 pin Kenwood headset configuration.
• To attach accessories such as headsets, speaker-mics or programming cables, align the connectors and
push in fully.
• The fit isn't always perfect on cheap or clone cables and connectors and may require a bit of force to
wiggle them in completely.
• Make sure the radio is off before attaching any accessories.
