1. Housing
2. Half-shaft
3. Wheel brake
4. Brake drum
5. Oil seal
6. Taper bearing
7. Wheel hub
8. Taper bearing
9. Oil seal
10. Tyre
11. Rim
12. Hub nut
13. Lock nut

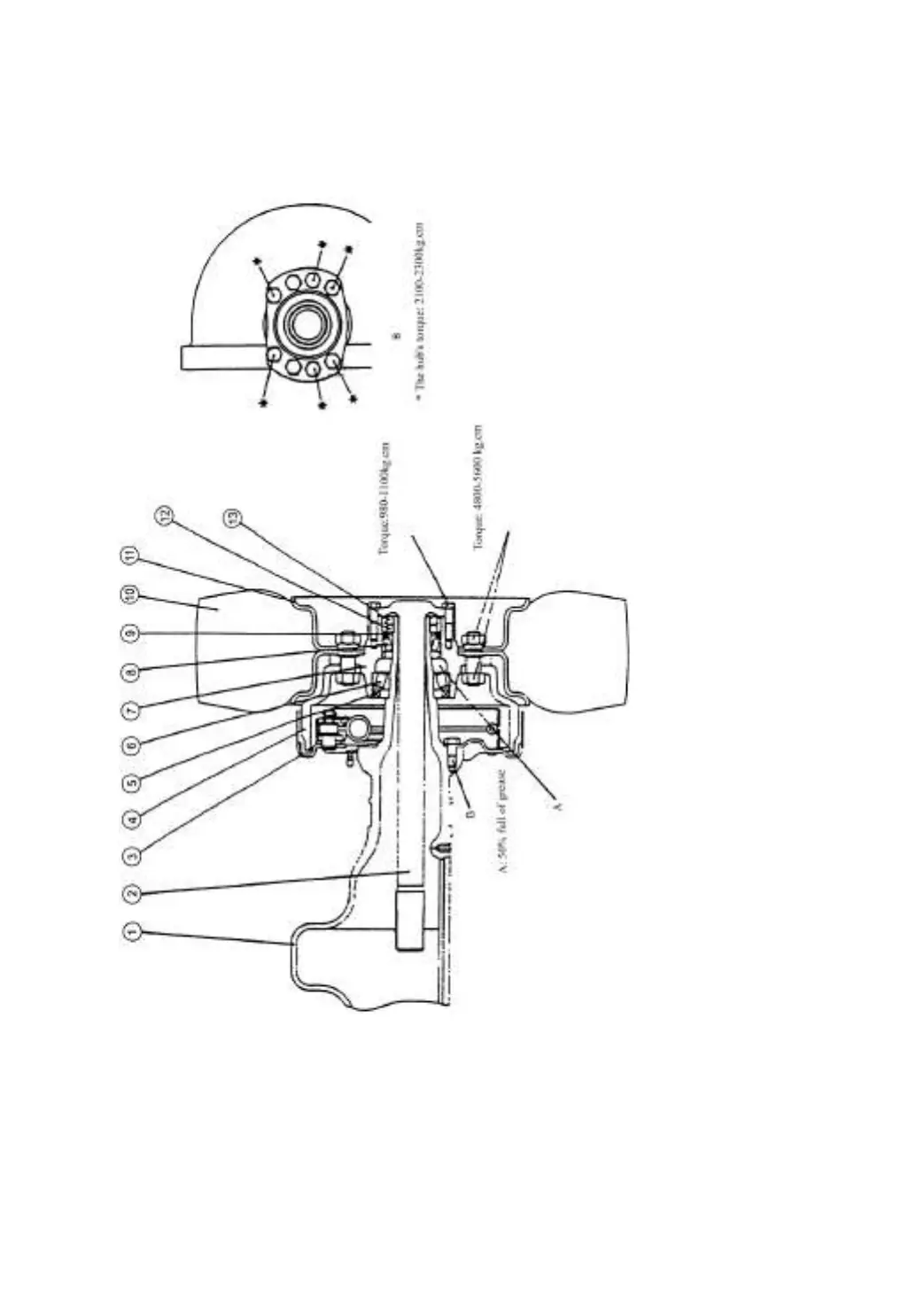

Fig.1-4 Drive axle
