e) Press the pedal slowly until START lamp lights, save it.
f) Select MINIMUM menu, press the pedal slowly until output value is larger than start
value, save it.
g) Select MAXIMUM menu, press the pedal slowly until the max output value occurs, save
it.
h) Get out of menu.
4.6 LED instrument (DC)
The electric forklift truck adopts newly displaying with combination of LED and LCD.
Control circuit adopts micro computer technology, sampling, displaying and controlling in
real-time. The intense and feeble circuit in the instrument adopts light-electricity
separating with control relay. It has under-voltage warning and high automatic supporting
function. Refer to Fig4-9.
4.6.1 Outline and instructions of instrument

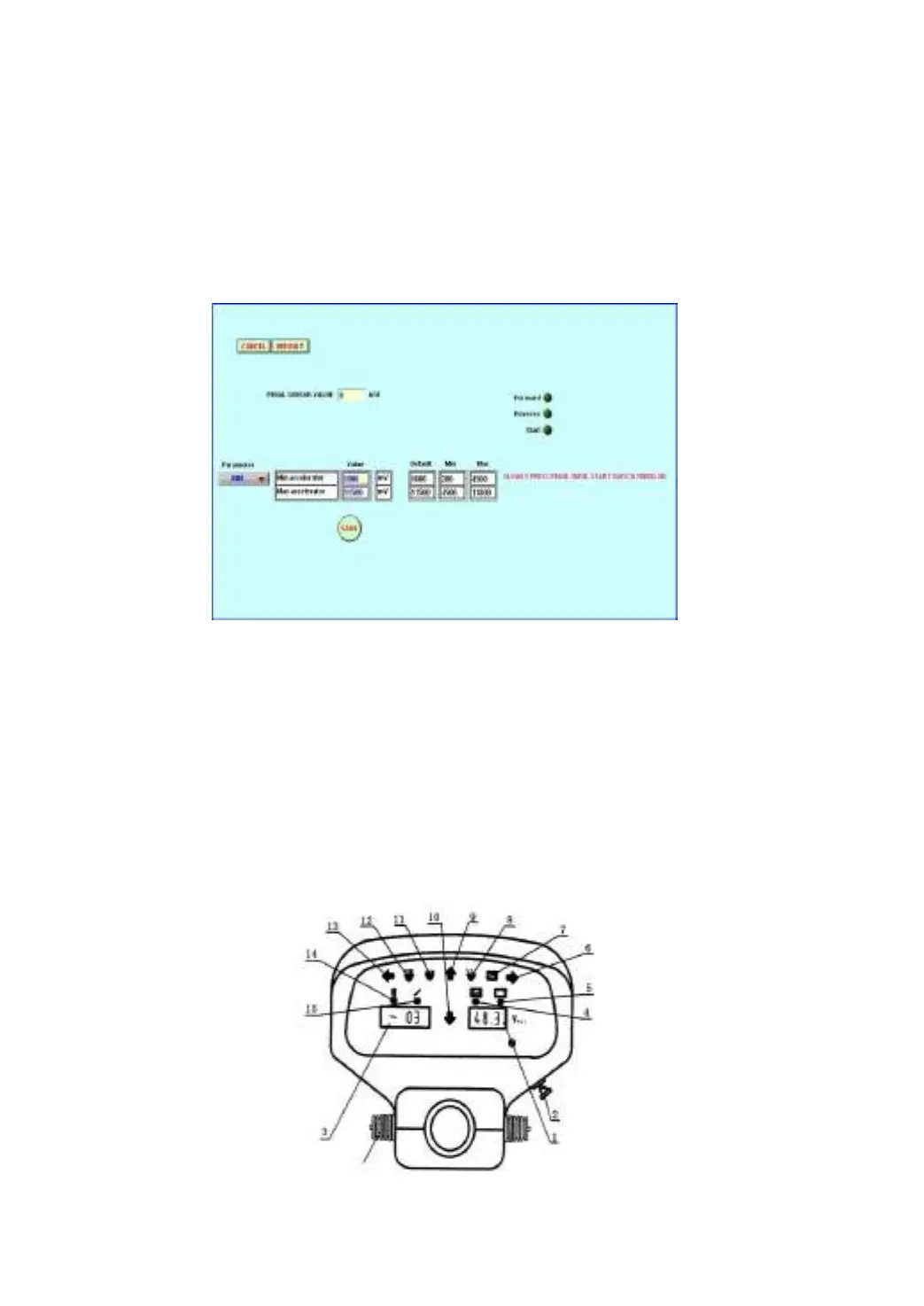

Fig4-9 LED instrument
