2. Brake system
2.1 General description
The brake system is the front two-wheel braking interior extended hydraulic type
consisting of a master cylinder, wheel brakes and brake pedal.
2.1.1 Brake pedal

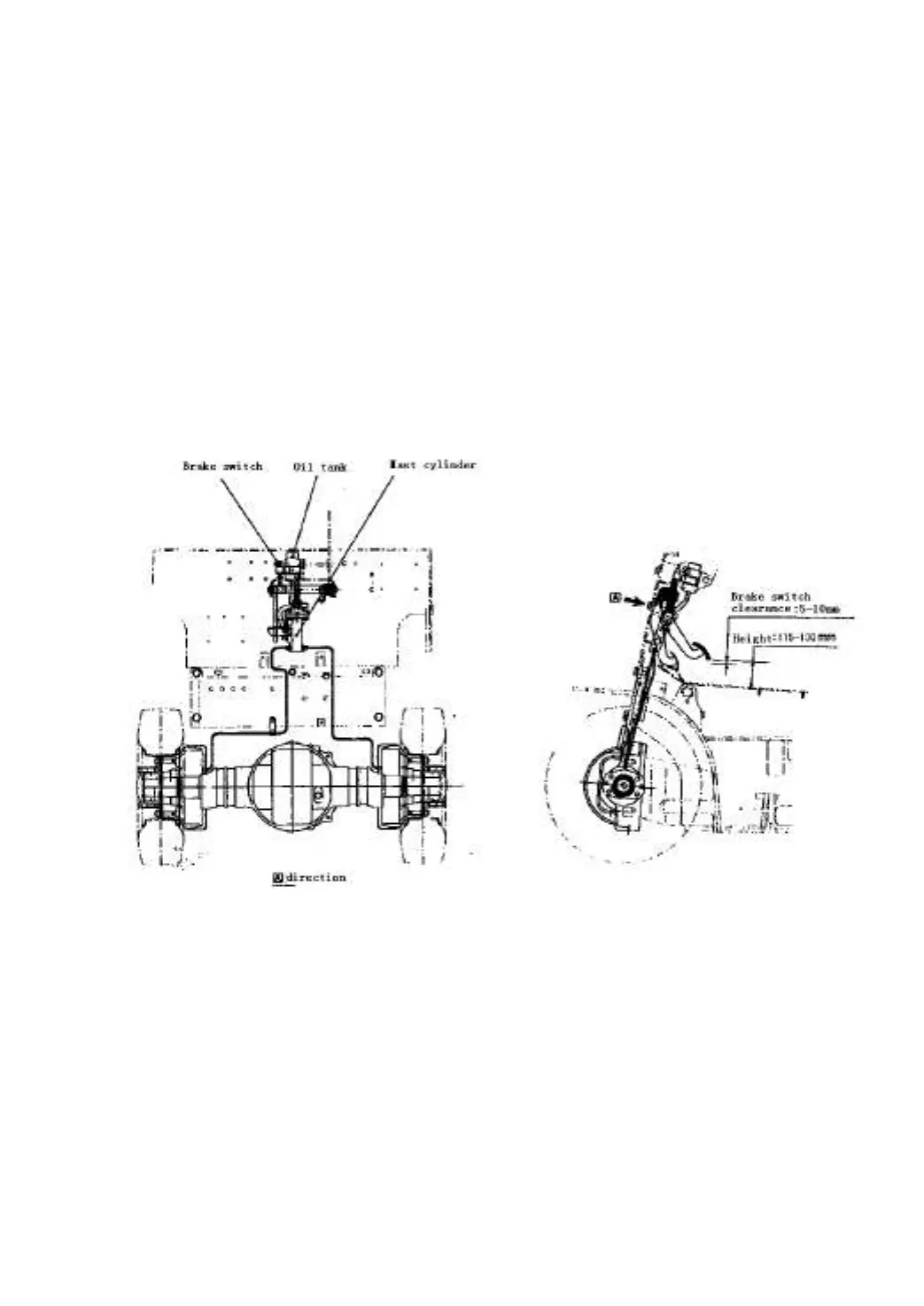

The structure of the brake pedal which is assembled on meter rack with bracket is
indicated in Fig.2-1.
With the push rod of mast cylinder, the pedal converts the force acting on pedal to
brake oil pressure force.
Fig.2-1 Brake pedal
2.1.2 Master cylinder
The cylinder contains a valve seat, a check valve, a return spring, primary cup, piston
and secondary cup, which are all kept in place with a stop washer and a stop wire. The
exterior of the cylinder is protected from dust by means of a rubber dust cover. The piston
is actuated through the push rod by operation of the brake pedal. As the brake pedal is
pressed, the push rod pushes the piston forwards. The brake fluid in the cylinder flows
