Default Configuration Parameters
The configuration parameters can be loaded with
predetermined default values. These are the settings
loaded into the instrument prior to shipment from the
factory. To load the default values proceed as follows:
a)Open switch V2 (see configuration procedure Figure 2).

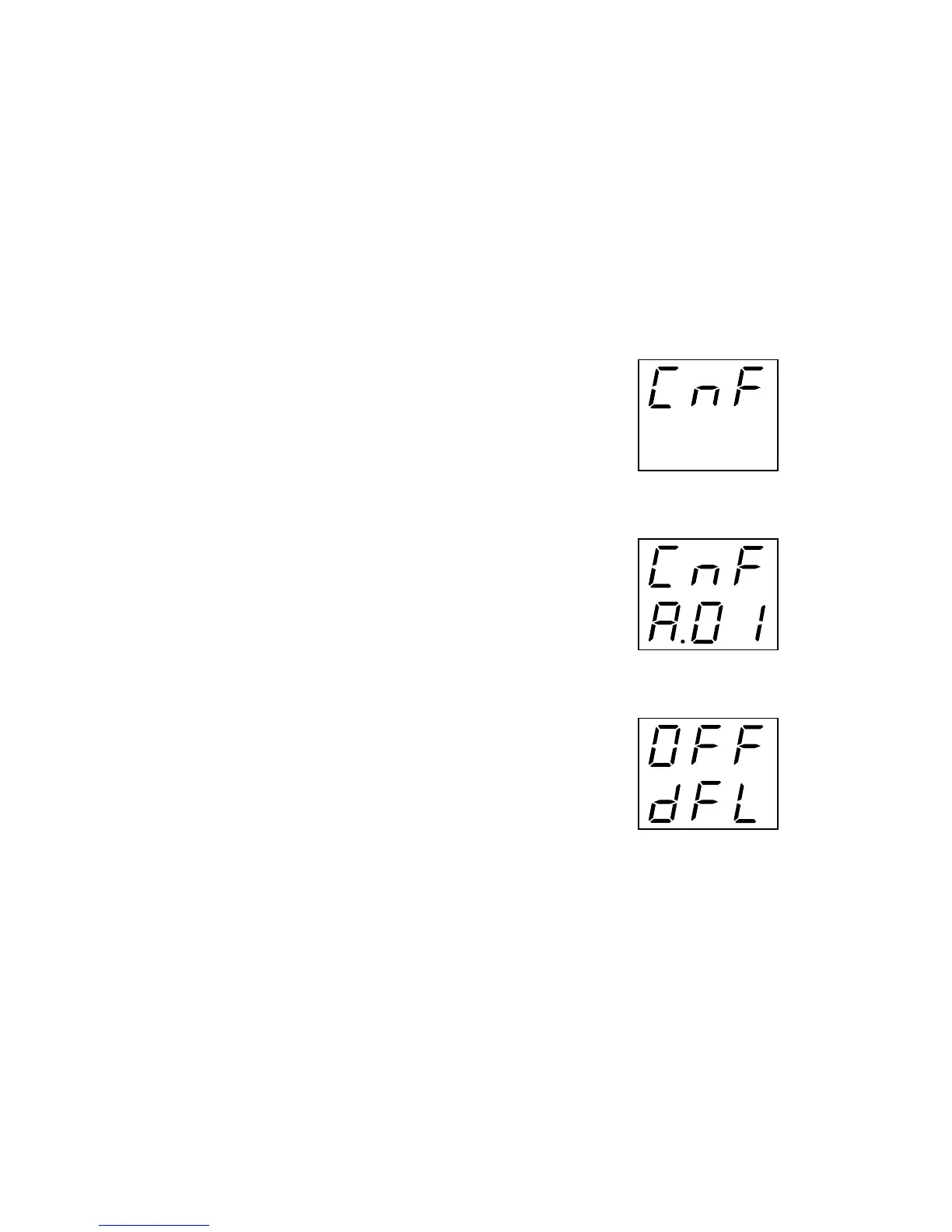

b) The upper display will show:
c)Press the t key; the lower display will show the
firmware version.
d) Still holding the t key, press the s key. The display
will show:
Default operating parameter list
Param Default Value
SP Minimum of range
nnn OFF
n.rS OFF
A1, A2 Minimum of range (process alarms)
0 (deviation or band alarms)
H1, H2 0.1% of span
PB 4.0%
HS 0.5%
tl 4.0 (4 minutes)
td 1.0 (1 minute)
IP 30% for 1 control output
0% for 2 control outputs
C 20 seconds (relay output)
2 seconds (SSR output)
C2 10 seconds for P6 = Alr
4 seconds for P6 = OlL
2 seconds for P6 = H2O
rC 1.00 for P6 = Alr
0.80 for P6 = OlL
0.40 for P6 = H2O
OLP 0
rL Initial scale value
rH Full Scale value
rP Infinite (step transfer), blank screen
OLH 100%
tOL Infinite
Hbd 50% of the full scale
