31R5900100 /02 C-10, C-5
Products Box content
C-10, R9861511xx
2
• R9861511
• 1 x R9861600D1C
3
• DC adapter with AC clips type A, C, G, I
4
• Wall mount system
• Printed safety manual
C-5, R9861505xx
2
• R9861511
• DC adapter with AC clips type A, C, G, I
4
• Wall mount system
• Printed safety manual
R9861600D01C
3
,
5
1 x R9861600D1C
3
,
5
Contact your local sales representative for the correct regional variant to be used in your country.
2.2 About the Base Unit
Base Unit functionality
The Base Unit receives the wireless input and controls the content of the meeting room display.
The Base Unit can be put on the meeting room table or mounted on a wall or ceiling. Check the installation
guide for instructions on how to install the Base Unit.

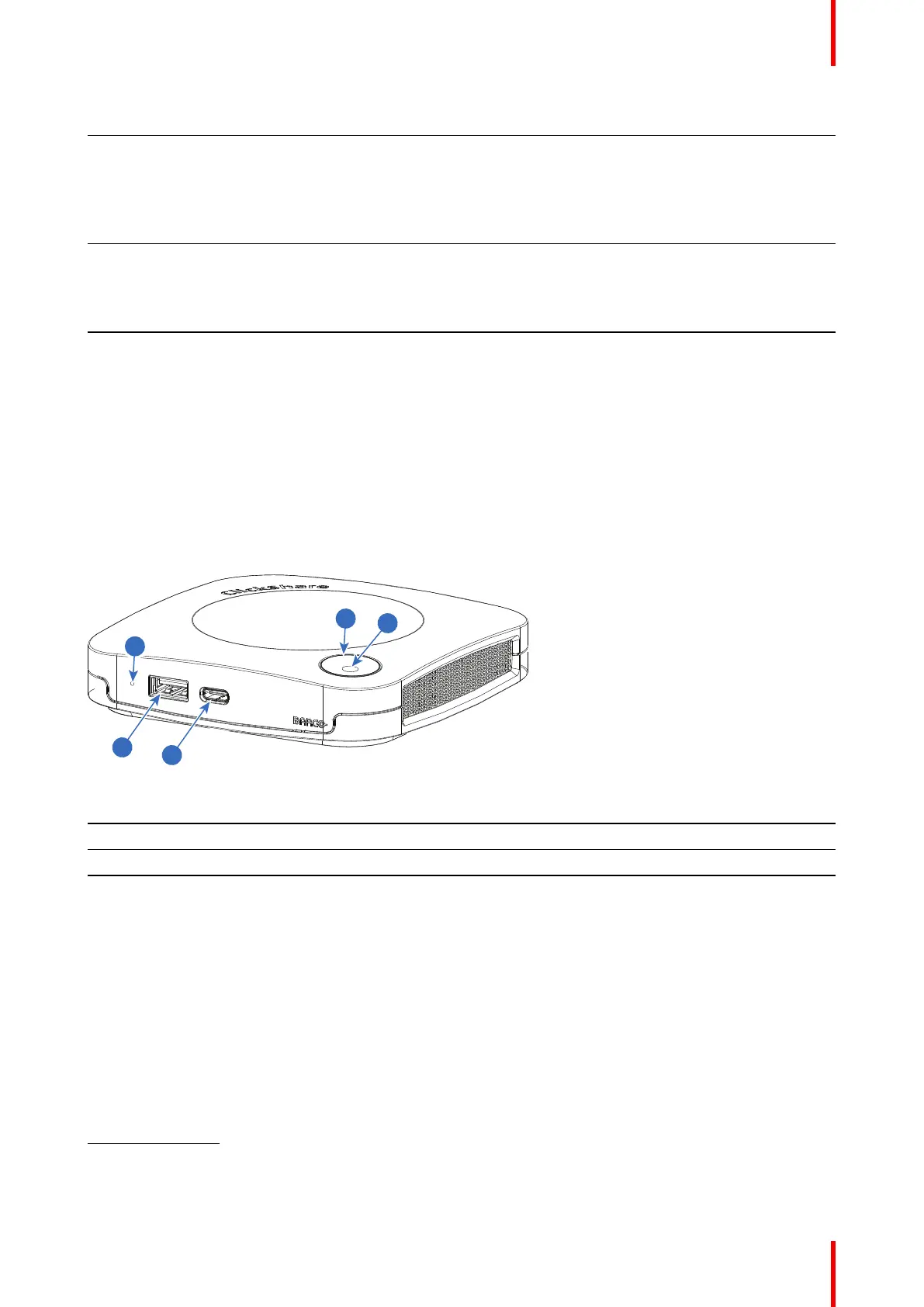

Image 2–3
1 USB Type-A port (USB 2.0)
2 USB Type-C port (USB 2.0)
3 Status LED ring
4 Standby Button
USB ports
The USB Type-C
TM
is used to pair the (optional) available Buttons when not done via XMS. The USB Type-
C
TM
and USB Type-A can be used to update the software when both are not done via XMS.
When plugging in the (optional) Button into the Base Unit, the Button is paired to the Base Unit. The Base Unit
checks whether the software and firmware of the Button is up to date. If not, the Base Unit updates the
software and/or firmware.
Introduction of the C-10, C-5
2. xx=EU, CN, NA, US, ZH, RW,
3. For US, R9861600D1CUS
4. Included AC clips can be different according to the region
5. Not for C-5
