Antenna
Four antennas are included in the CSE-800 box for concurrent dual band Wi-Fi. To avoid damage during
transport, they are not pre-mounted.
The antennas can rotate for a better wireless connection.
Usage of antennas other than the ones provided with the unit are allowed within the restrictions on usage of
other antennas defined by local regulations. Barco does not take responsibility for damage or disturbance of
other devices that may be caused by using a different antenna. The use of an active power amplifier is not
allowed.
Antenna type : Dipole
Gain : Maximum 2 dBi peak gain in 2.4GHz and 5Ghz band
Ventilation grids
Ventilation grids are foreseen on the front side and on the back sides of the Base Unit.

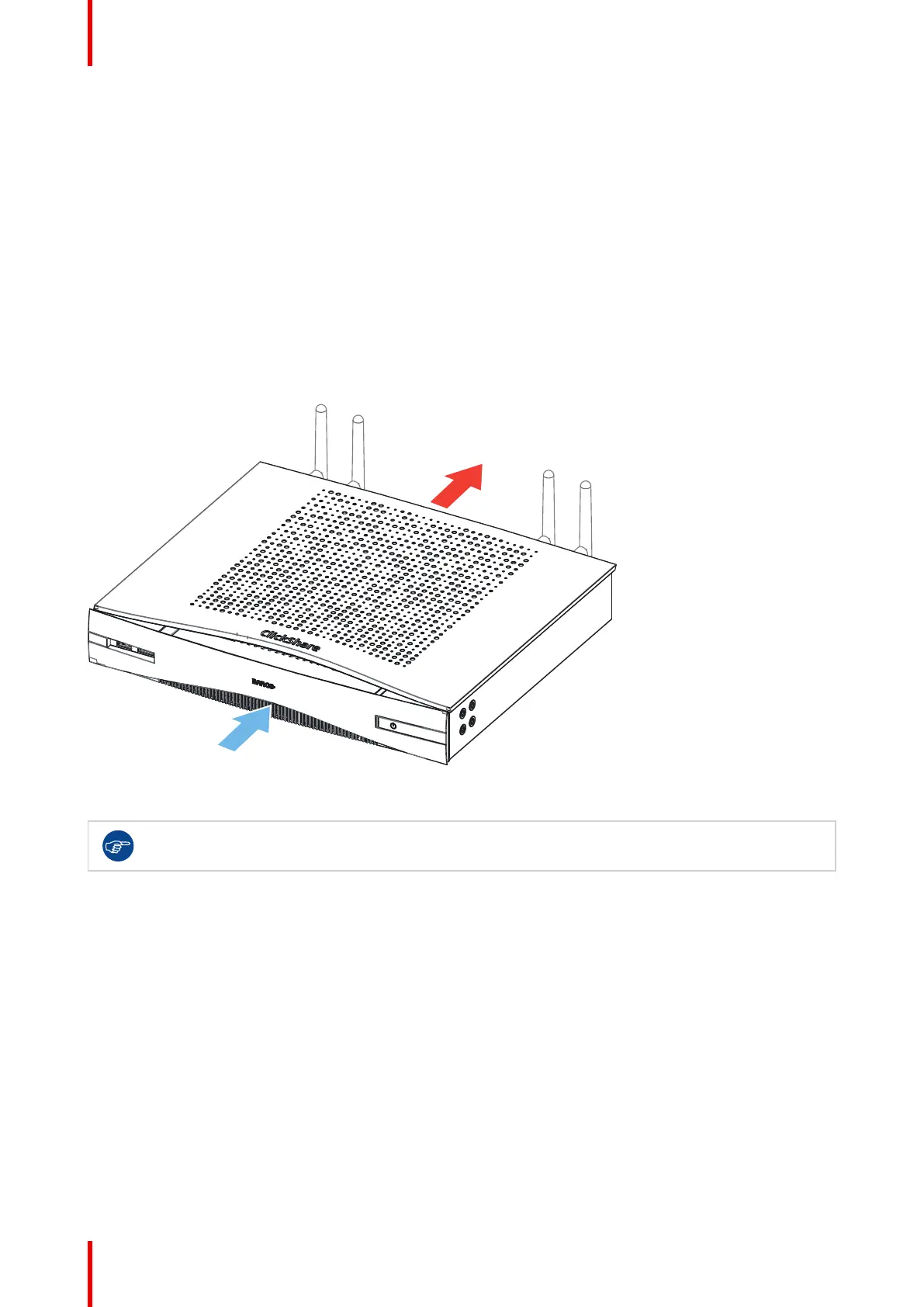

Image 2–4 Ventilation grids IN and OUT
The Base Unit sucks air via the front side ventilation grid and push hot air out on the back side ventilation grid.
Make sure not to cover the ventilation grids during operation of the Base Unit. Always keep a free
area of minimum 50 mm in front of all ventilation grids.
Bottom layout of the Base Unit
The serial number label containing the Barco part number, the revision number, production date (week-year)
and the serial number.
The product label with the applicable certification logos.
The product label contains:
• the Barco logo
• the product name
• the Barco part number
• the power rating
• markings for applicable standards (CE, CCC, UL, ...)
• markings for waste regulation
• “Made in ...”
