R5905753 /17 DPxK-19B/23B/P148

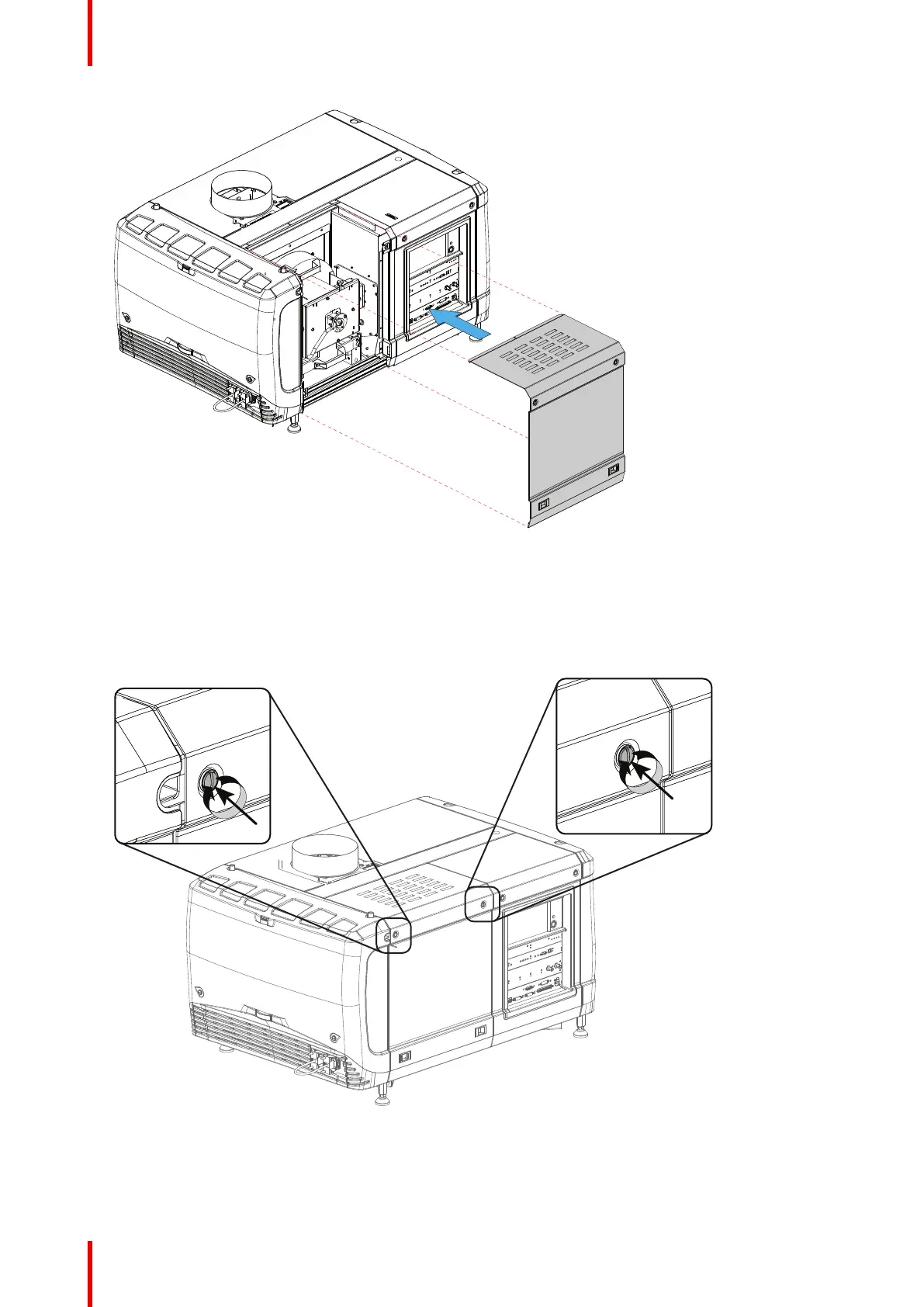

Image 10–17 Mount lamp cover
2. Close the cover as follow:
1. Gently move the bottom side of the cover towards the projector
2. Push both lock to each other and push at the same time the cover against the projector frame.
3. Release both locks so that they lock in their receivers.
3. Secure the cover by fasting both captive screws.
Image 10–18 Secure lamp cover
Removal and installation of the projector covers
