Barco DP K-19B Series - Pin Configurations of the ICMP(-X) Communication Ports

185R5905753 /17 DPxK-19B/23B/P
Peripheral Port
Pin Name
1 +5V
2 SCL
3 SDA
4 +24V
5 GND
3D connector
Pin Name Pin Name
1 +12V 9 +12V
2 Grnd 10 3D Input Reference -
3 Grnd 11 3D Display Reference +
4 RS232 RX 12 3D Display Reference -
5 RS232 TX 13 CONN_3D MODE -
6 CONN_3D_MODE + 14 CONN_SYNC -
7 CONN_SYNC + 15 -
8 3D Input Reference +
B.3 Pin configurations of the ICMP(-X)
communication ports

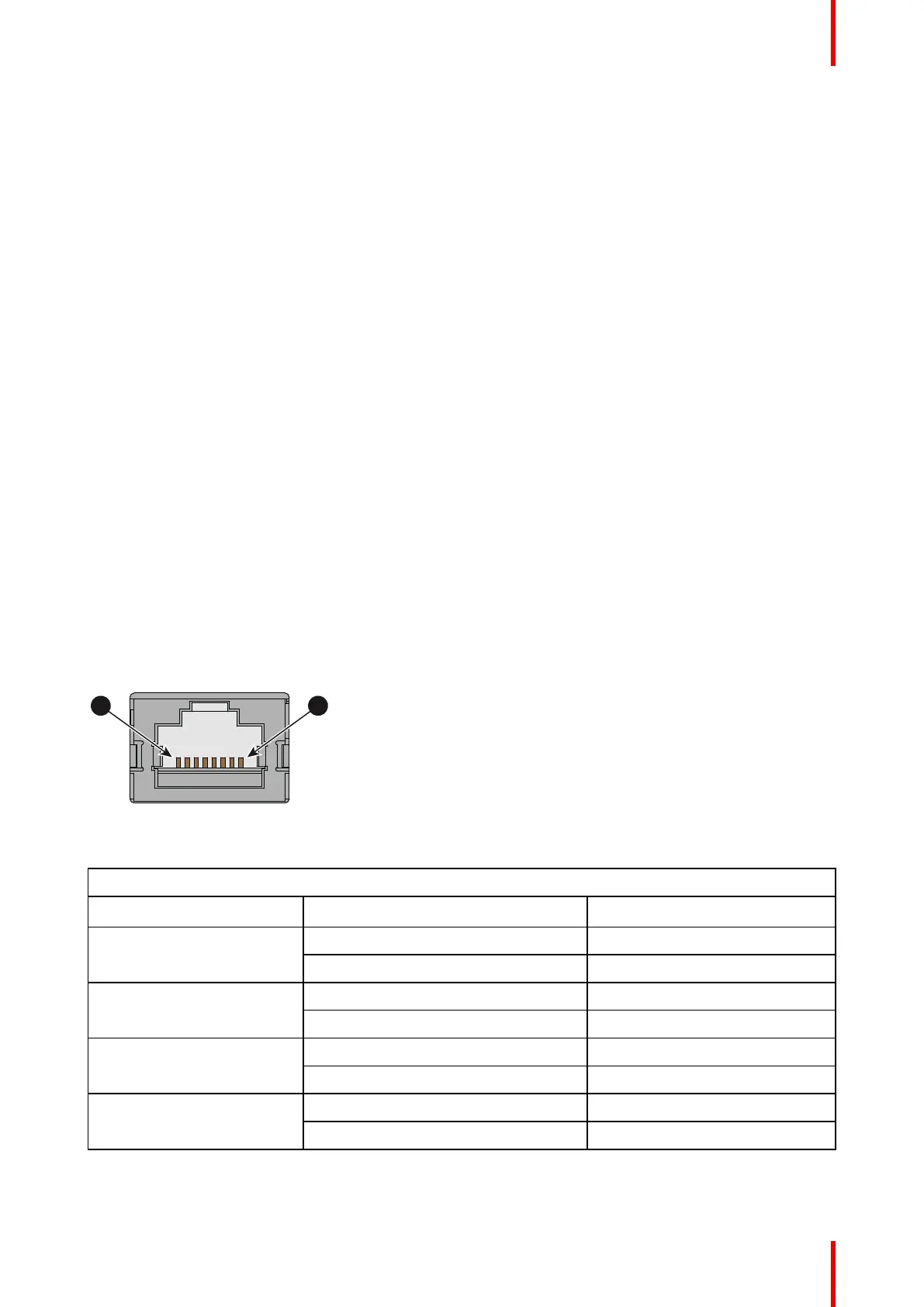

RJ-45 pin configuration
P1P8
Image B–3
Audio Channels:
AUDIO-AES 1-8
Audio channel
AES pair RJ-45 pin
1, 2 1 + 1
1 - 2
3, 4 2 + 3
2 - 6
5, 6 3 + 4
3 - 5
7, 8 4 + 7
4 - 8
Pin configurations
