3. Physical installation
How to connect a UPS unit with the projector electronics?
1. Install the UPS unit according to the instructions of the manufacturer and the local regulations.
2. Connect the power output co rd (reference 1) from the UPS unit with the UPS INLET socket of the projector (upper socket).
3. Secure the UPS INLET socket using the sm all fixation plate and two thumbs crews. U se appropriate spacers to ensure that the
plug is captured without play.
4. Install the large fixation plate (reference 2) upon the power O UTLET socket of the projector (lower socket). This to prevent losing
the fixation parts.
1
2

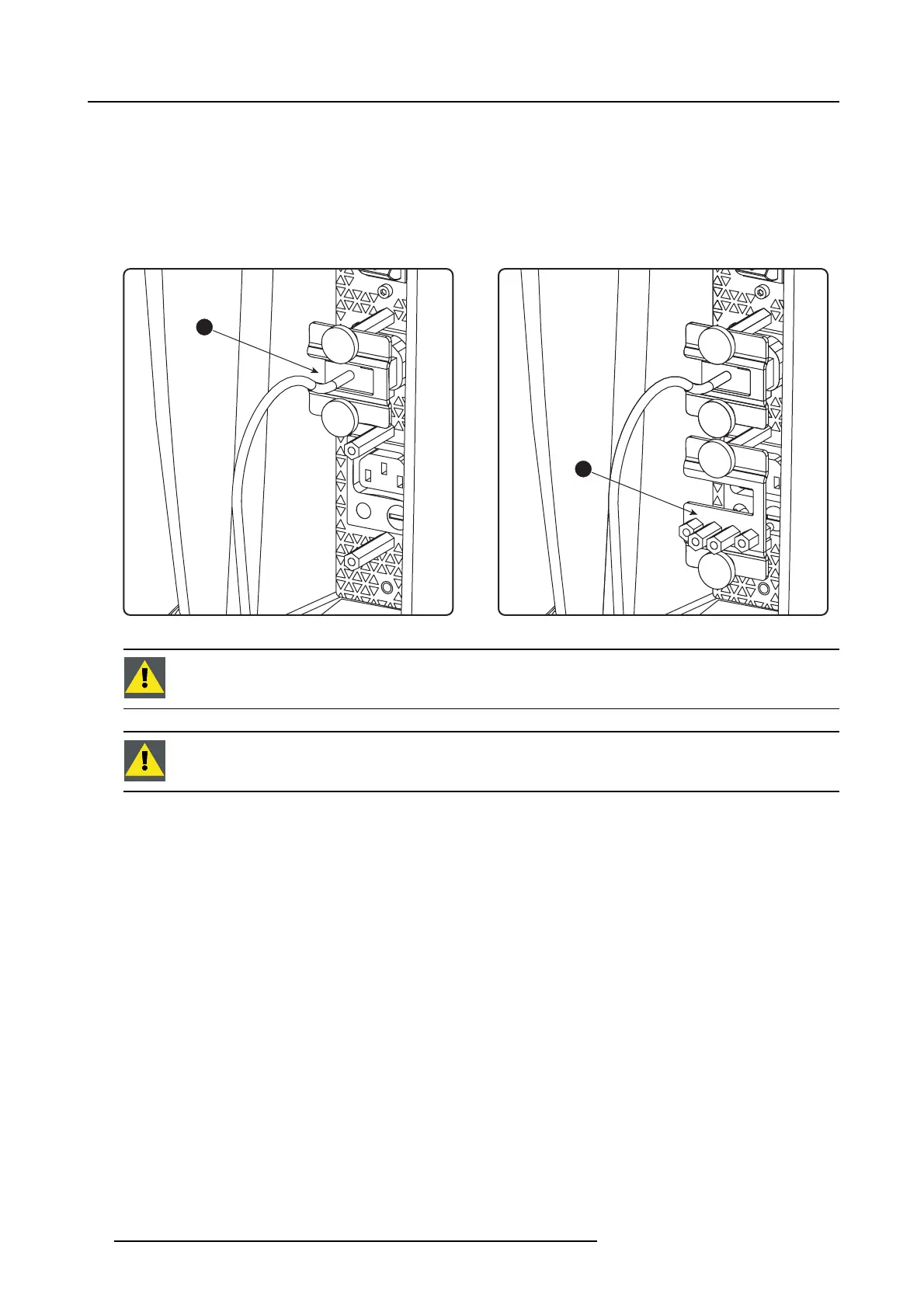

Image 3-12
CAUTION: T he electrical co nn ection with the UPS INLET so cket of the projector m ust be done with a c ertified
AC power supply cord (minimum 0,75 mm² or 18 AWG and minimum 300V )
CAUTION: Do not use t he power OUTLET socket of the projector to provide power to other equipment!
20 R5905050 DP2K C-SERIES 10/07/2012
