10. Removal and installation of projector covers

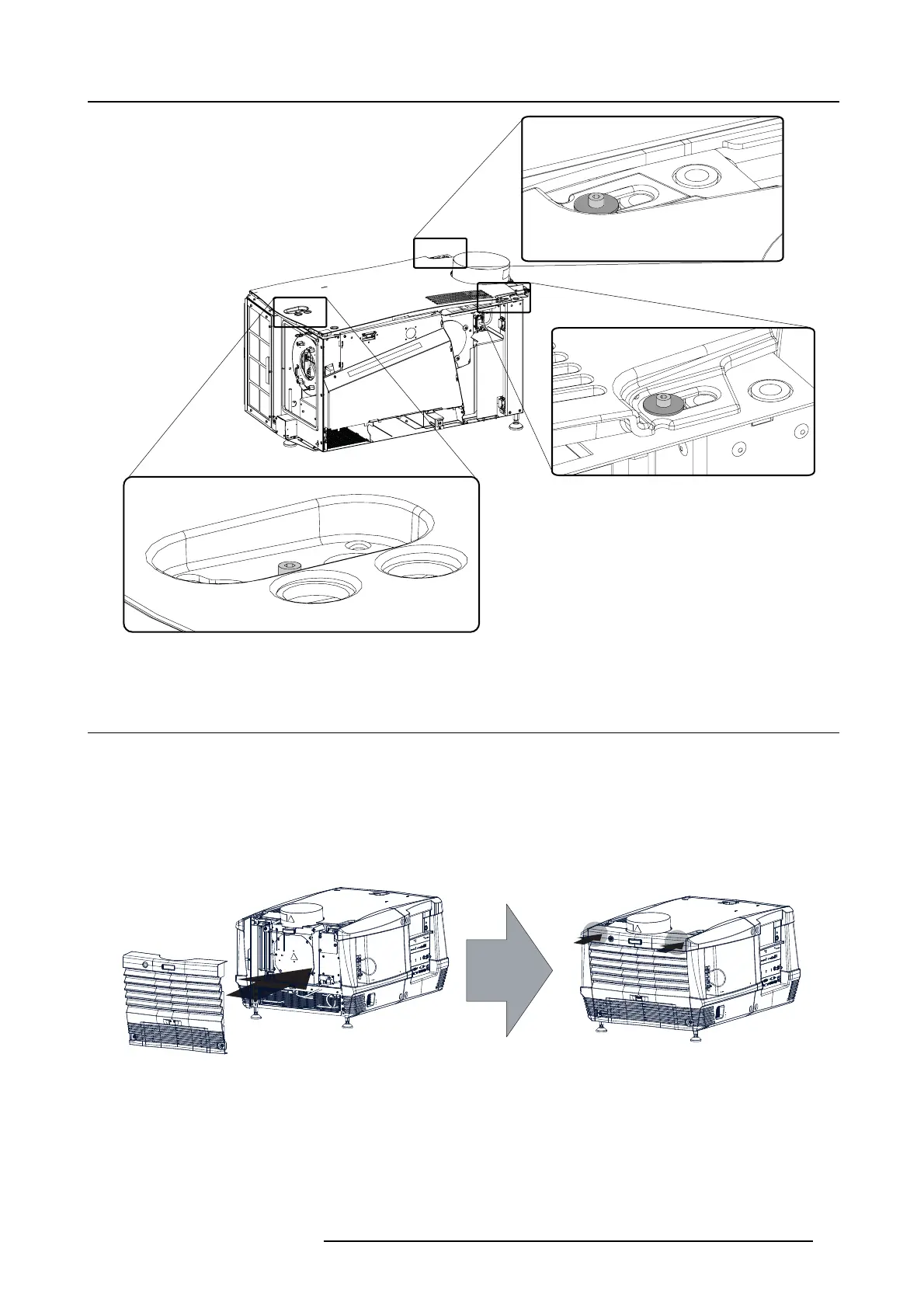

Image 10-18
Fixate top cover
10.10 Installation of the rear cover
Necessary tools
Flat screwdriver.
How to install the rear cov er of the pro
jector?
1. Install the rear cover of the projector doing the following:
a) Bring the rear cover towards it final position,
b) then gently push the locking studs of the top corners into their receivers
B
B
A
Image 10-19
Install rear housing
2. Secure the rear cover by locking the captive screws at the bottom corners of the rear cover.
