7. Communicator touch panel
7. COMMUNICATOR TOUCH PANE L
Overview
• Introduction
• Installing the touch pan el interface
• Reposition the touch panel interface
7.1 Introduction
Communicator Touch Panel for digital cinema projectors
The Comm unicator Touch Panel is designed for multi-user command and c ontrol, the Comm unicator enables users to learn quickly
and operate efficiently - using an elegant and flexible touch panel interface. The interface’s commo nality means that oper ators
can intuitively use any model in the product line, without restriction, and its us er-friendly na
ture translates directly into a short and
enjoyable learning curve.

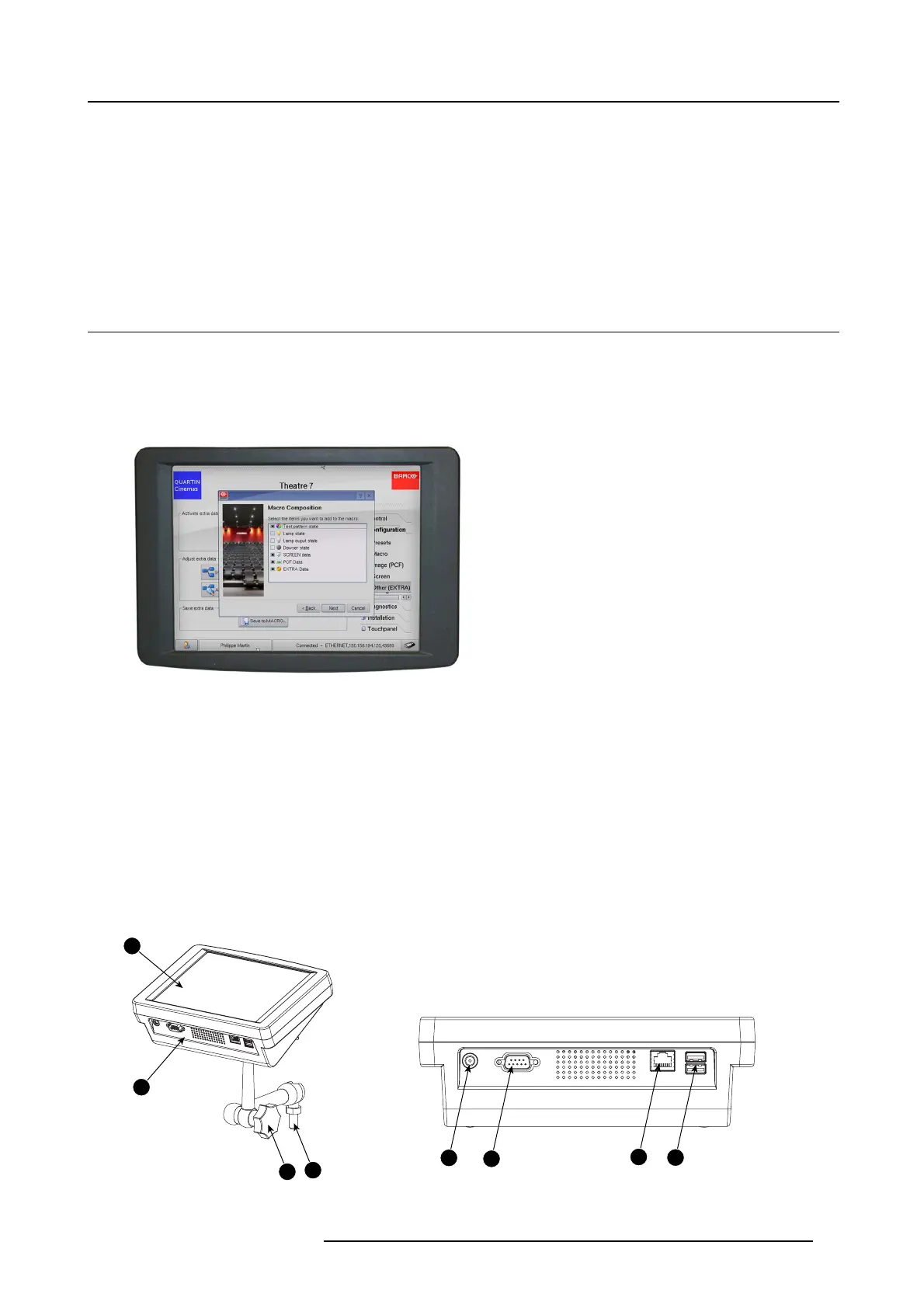

Image 7-1
Flexible touch panel interface
The touch pan el interface can be mounted upon a swivel arm which easily fi ts on top of the DP2 K C-series projector. O ne central
locking mechanism of the swivel arm allows a
n instant fixation of the touch panel interface in any position.
The touch panel interface can also b e installed further away from the DP2 K C-series projector. For that you can use a serial (RS232)
cable up to 10 m eter or an E thernet cable up to 50 m eter to allow a direct data communication between the D P2K C-series p rojector
and the Com mu nicator Touch Panel.
The touch panel interface can also be co nnected w ith a Local Area Network (LAN) just like the D P 2K C-series projector. In this case
both devices can communicate with each other as well.
The touch panel interface requires a +12 VDC voltage, 1,5 ampere . The use of a separate +12 VDC adaptor (1,5 ampere m inimum)
is required.
Parts location of the touch panel interface
A
B
C
D
E
F
G
H
Image 7-2
Communicator touch panel
R5905050 DP2K C-SERIES 10/07/2012 53
