55R5905752 /16 DP2K C

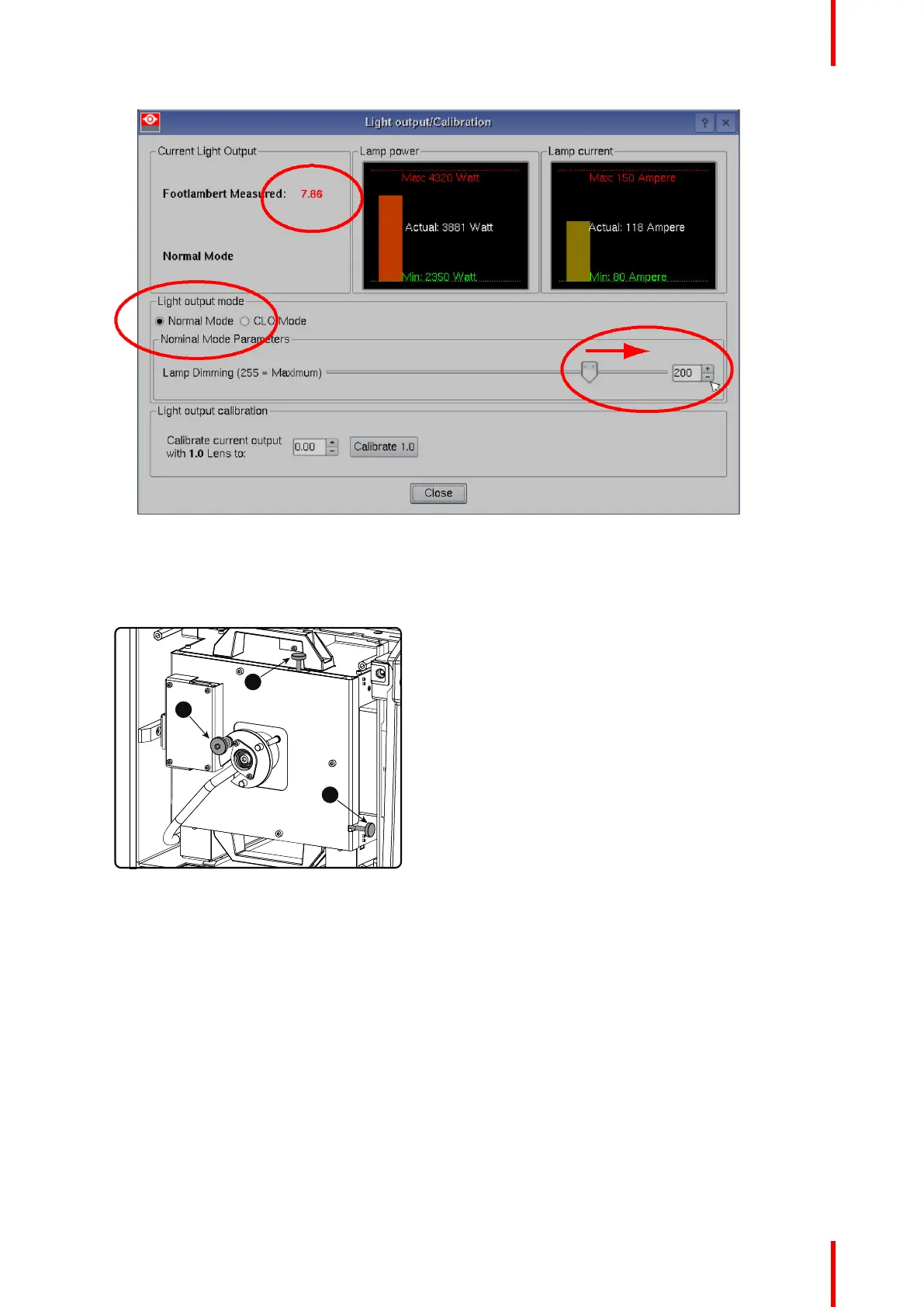

Image 4–28 Light mode selection
6. Adjust the X-axis (ref X Image 4–29), the Y-axis (ref Y Image 4–29) and the Z-axis (ref Z Image 4–29) for
maximum current light output (Footlambert Measured). Carefully turn the thumbscrew for maximum light
output. Once over the maximum, turn slightly in opposite direction to reach the maximum light output
again. Do this for each direction and repeat this adjustment cycle twice.
Image 4–29 Lamp adjustment
7. If lock nuts are available, these nuts can be locked again.
8. Switch off the projector.
9. Reinstall the cover of the lamp compartment.
Lamp & Lamp House
