Barco DP2K-15C

R5905752 /16 DP2K C60
12
1 2

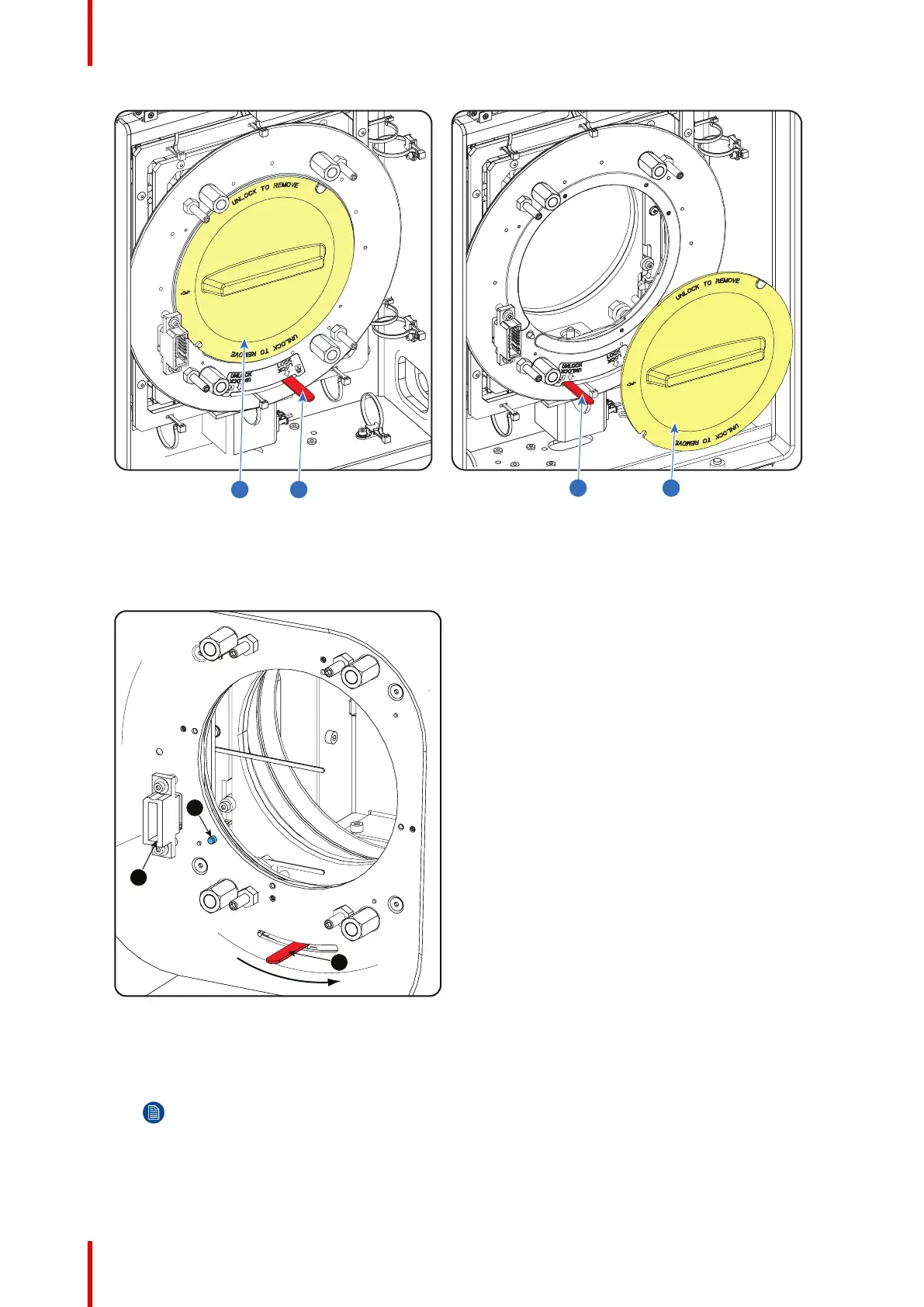

Image 5–7
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Close the lens locking mechanism prior to lens insertion (1). Lens locking mechanism is closed by pushing
the lens lock to the right.
1
2
3
Image 5–8
1 Lens holder lock
2 Power connector lens
3 Alignment pin
4. Ensure that the lens holder stands in the On-Axis position (horizontal and vertical mid position).
Note: The lens holder is placed default in the On-Axis position at factory.
5. Gently insert the lens in such a way that the lens connector matches the socket (B).
Lenses & lens holder
