61R5905752 /16 DP2K C

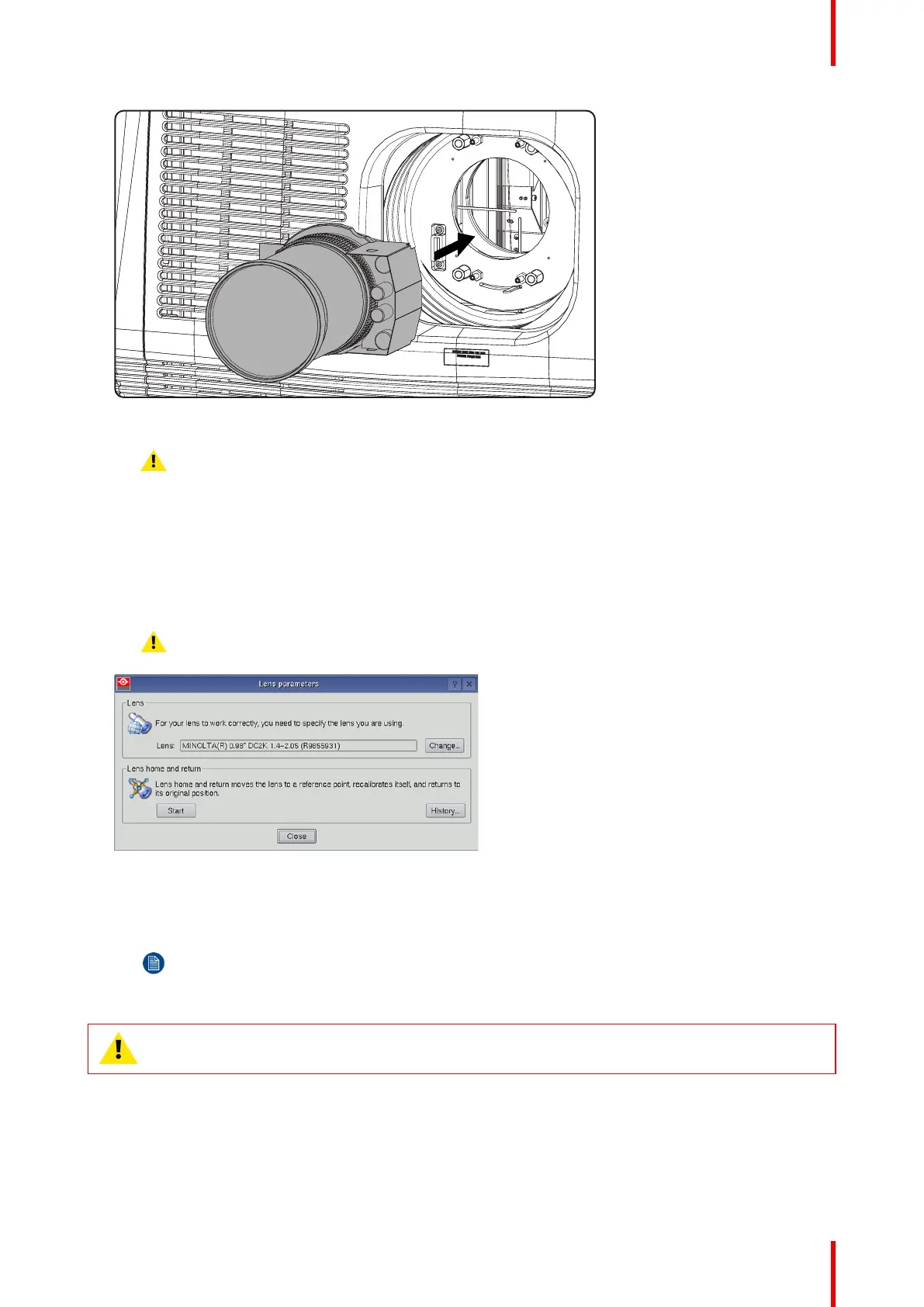

Image 5–9
6. Insert the lens until the connector seats into the socket.
Warning: Do not release the lens yet, as the lens may fall out of the lens holder.
A clear “click” should be heard when the retainer springs engage into the slot provided on the lens.
Besides the clear click, the springs actually help to guide the lens into position and hence prevent
jamming.
7. Check if the lens is really secured by trying to pull the lens out of the lens holder.
8. Activate the corresponding lens parameters for the installed lens. (See user guide of the “Communicator”
chapter Installation > Advanced > Lens parameters)
Caution: Not using the correct lens parameters could result in lens damage.
Image 5–10
9. Perform a lens HOME & RETURN operation. (See user guide of the “Communicator” chapter Installation >
Advanced > Lens parameters)
Note: The HOME & RETURN operation enables the projector to determine the reference
positions of the motorized ZOOM and FOCUS of the installed lens.
For the lenses with a focus adjustment mounted on the lens (4K lenses) , the lens holder goes
to a normal (fixed) focus position. For these lenses, do not mechanically adjust the focus
position of the lens holder, otherwise the normal position will be lost.
CAUTION: Never transport the projector with a lens mounted in the lens holder. Always remove the
lens before transporting the projector. Neglecting this can damage the lens holder and prism.
Lenses & lens holder
