3. Turn in set screw D lightly (by hand) allowing the image to move slightly (1/3 to 1/2 of a square).
1/3 to 1/2

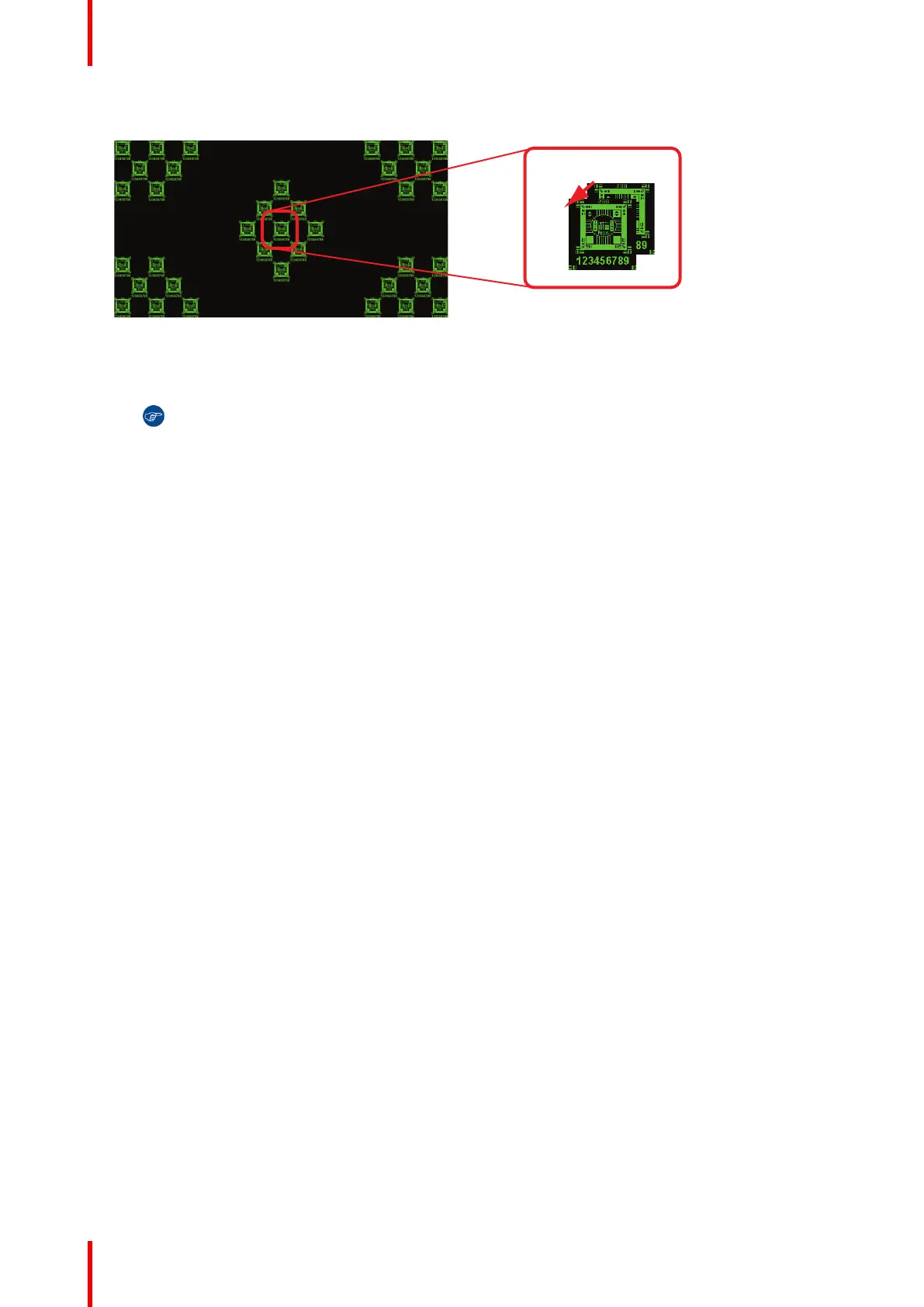

Image 5–24
4. Fasten lock nut d.
5. Tighten nut 4 until the offset of the image movement created in go to step 3 is canceled.
Tip: The amount of image movement in steo 3 will determine how tight the nut in step 5 will need
to be turned to return the image to its original position.
