Barco DP2K-23B User Manual

25R5905753 /17 DPxK-19B/23B/P

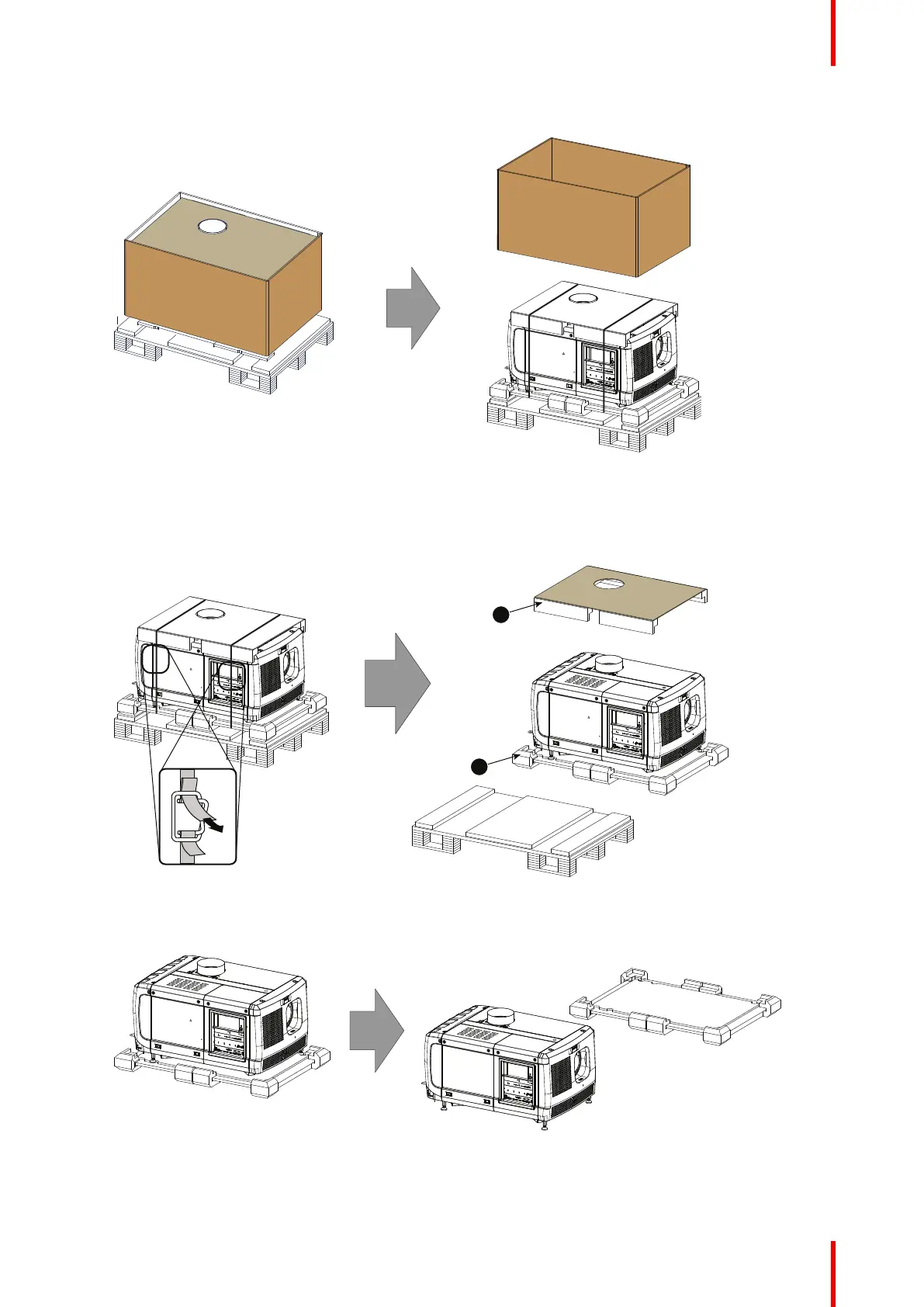

3. Remove the inner carton box.
Image 2–4 Remove inner carton
4. Loosen the banding by pulling the free end of the banding loop in the clip.
Take off the upper carton plate (1)
Remove from the wooden pallet (2)
1
2
Image 2–5 Remove wooden pallet
5. Take the projector from the wooden board by gripping the bottom of the projector and place the projector
on the pedestal.
Image 2–6 Remove projector
General

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
