7. Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure
with two binders.

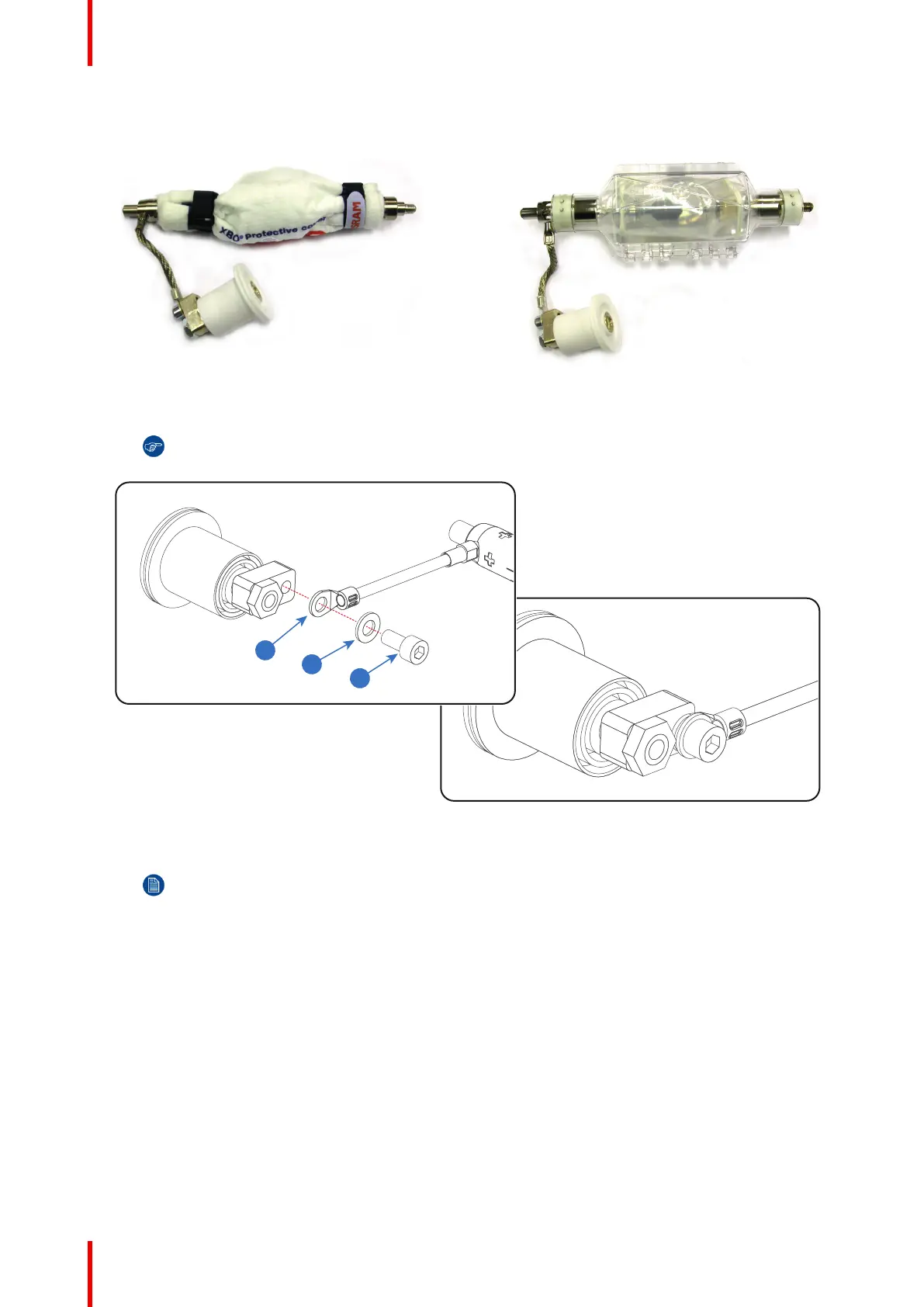

Image 4–12 Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container.
8. Remove the anode wire lug (reference 6 Image 4–13) from the anode socket as illustrated. Use a 8mm
Allen wrench.
Tip: Place the flat washer and bolt (reference 7 & 8 Image 4–13) back on its place after the lug is
removed.
6
7
8
Image 4–13
9. Remove the cathode adapter from the xenon lamp by releasing the hexagon socket head cap screw
(reference 9 Image 4–14) of the adapter as illustrated. Use a 5mm Allen wrench.
Note: Some xenon lamps have a cathode pin with screw threat (reference 10 Image 4–14).
Lamp & Lamp House

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
