Barco DP2K-23B User Manual

49R5905753 /17 DPxK-19B/23B/P

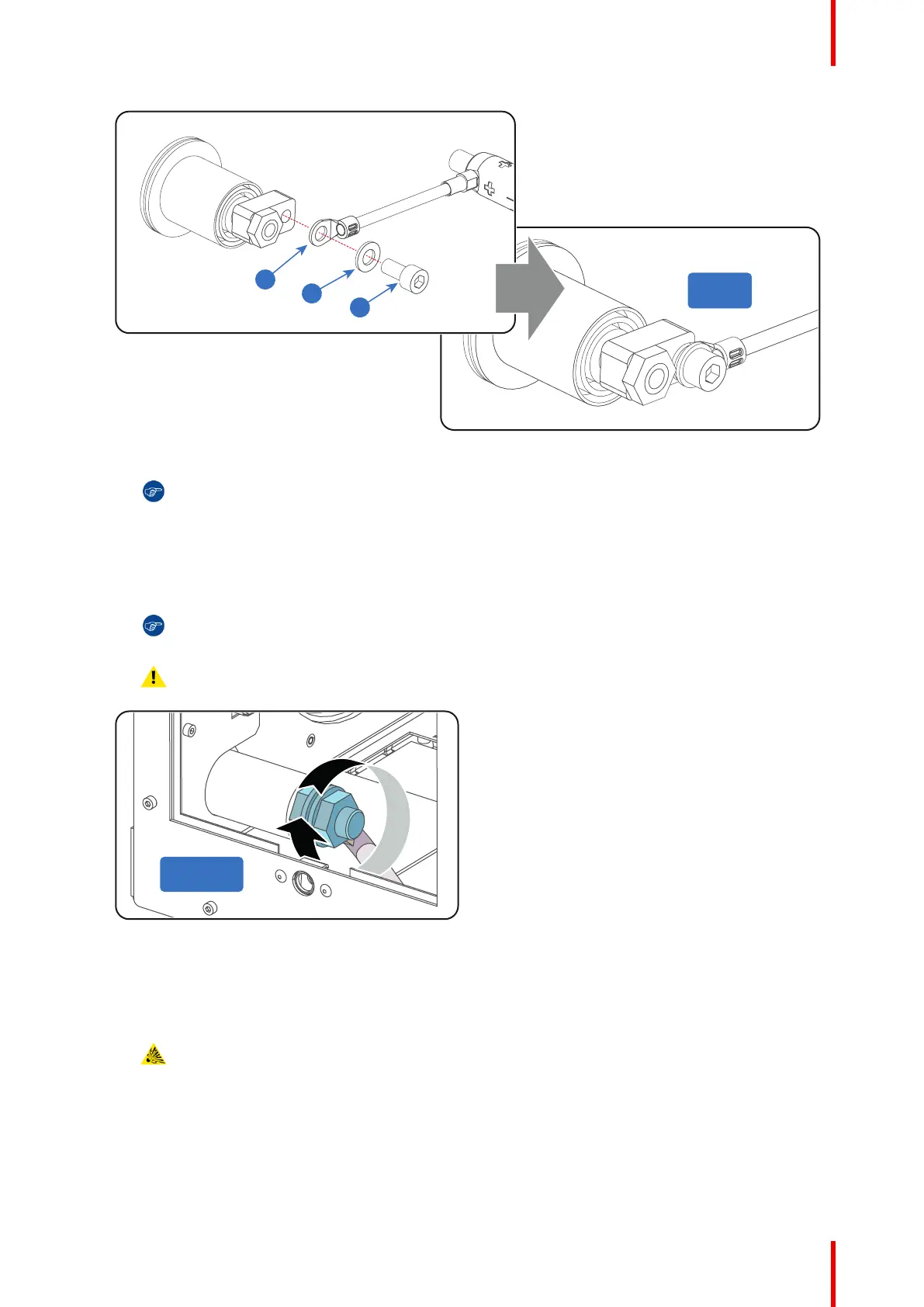

9Nm
6
7
8
Image 4–16
Tip: Write down the serial number of the xenon lamp. You will need this while updating the lamp
parameters after installation of the xenon lamp. The serial number of the xenon lamp is
engraved in the neck of the xenon lamp.
3. Check the cathode connection inside the lamp house. Use an 22 mm open-end wrench to hold the first nut
while fastening the second nut on the rod with a torque of 25Nm (18.4 lbf*ft) using a torque wrench with 22
mm hexagon socket. Ensure that there is a flat washer at both sides of the wire lug. It's safer to do this
check before the xenon lamp is installed to avoid accidental bumping against the xenon lamp.
Tip: The cathode socket can easily pulled out from the Lamp House as a whole to perform this
check.
Caution: These cathode connections must be checked with every lamp change!
25 Nm
Image 4–17
4. Remove the protective packing from the xenon lamp and gently insert the xenon lamp into the Lamp
House as illustrated. Lamp cathode first, Make sure that the wire of the lamp anode is upwards oriented.
While inserting the lamp, rotate it slightly, engaging the pins (reference 11 Image 4–18) of the cathode
adapter in the foreseen slots. This is to ensure the lamp cathode is completely inserted. Keep supporting
the anode of the lamp with one hand once the xenon lamp is in position.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Lamp & Lamp House

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
