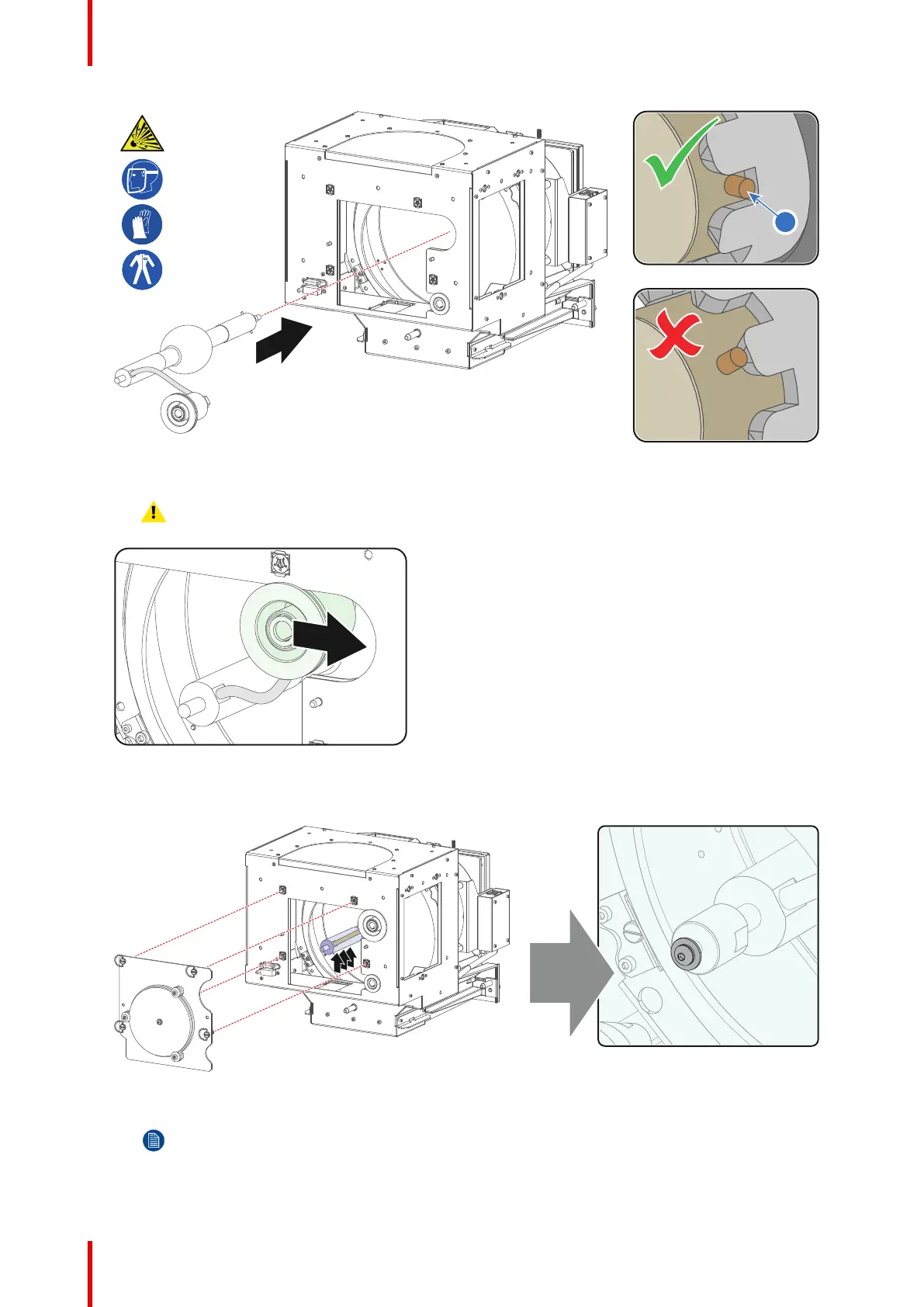

5. Slide the anode connector in its position on the Lamp House as illustrated.
Caution: Avoid any tension on the anode wire, ensuring there is no mechanical stress on the
lamp.
Image 4–19
6. Install the UV blocker assembly as illustrated. Use the opening at the side of the Lamp House to guide the
anode pin of the xenon lamp into the anode supporting mechanism of the UV blocker.
Image 4–20
7. Secure the UV blocker by fastening the four quarter turn screws (reference 5 Image 4–21) as illustrated.
Note: Ensure that the quarter turn screws turning wires are flush with the cover or interference
will occur while inserting the Lamp House into the projector.
Lamp & Lamp House

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
