Barco DP2K-23B User Manual

51R5905753 /17 DPxK-19B/23B/P
5
Image 4–21

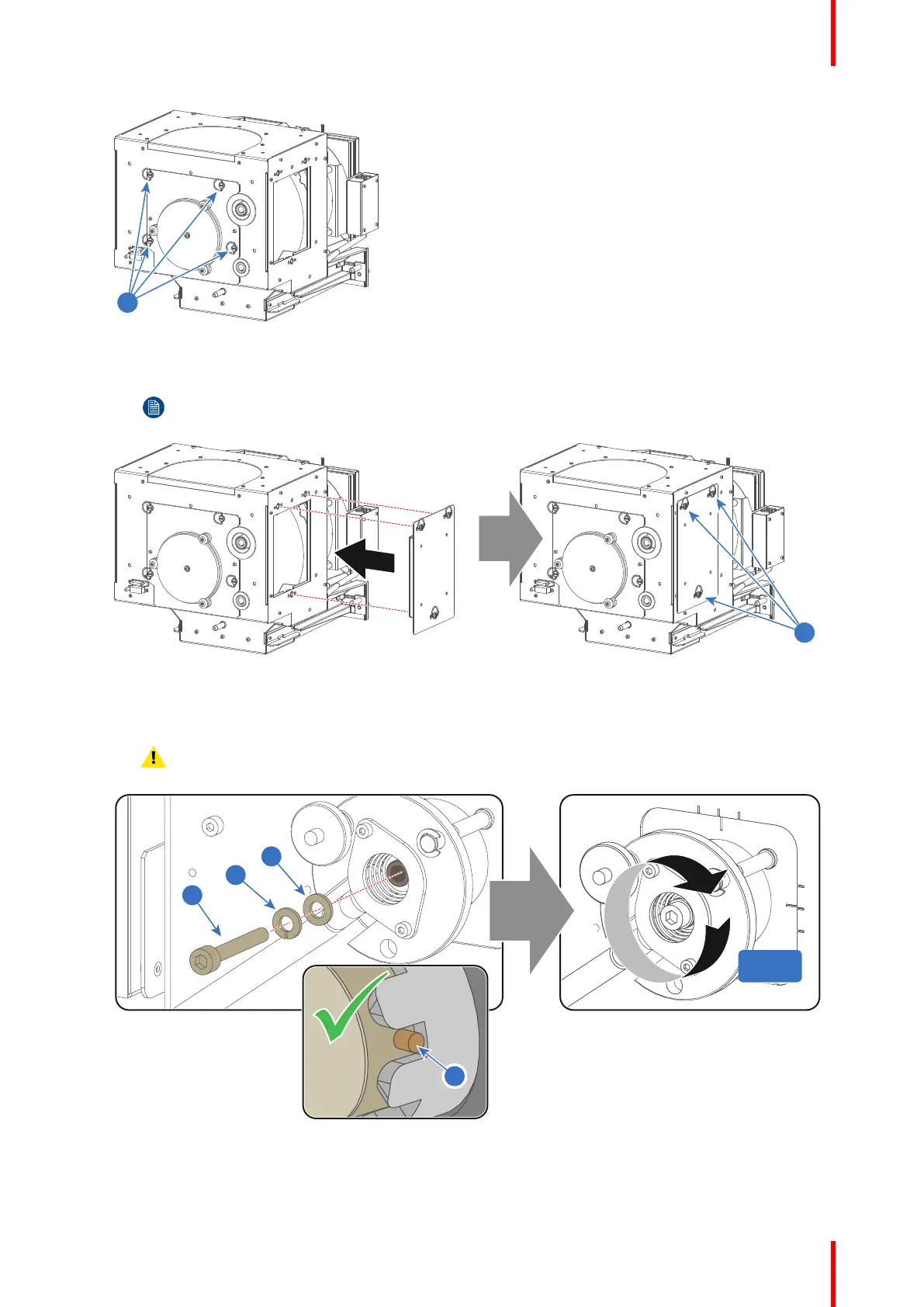

8. Install the side cover of the Lamp House and fasten the three quarter turn screws (reference 4 Image 4–
22) of the cover.
Note: Please ensure that the quarter turn screws turning wires are flush with the cover or
interference will occur while inserting the Lamp House into the projector.
4
Image 4–22
9. Secure the xenon lamp cathode with the hexagon socket head cap screw (reference 1 Image 4–23),
spring washer (reference 2 Image 4–23) and plain washer (reference 3 Image 4–23). Fasten the screw
with a torque of 5 Nm (3,7 lbf*ft). Use a torque wrench with a 5 mm Allen socket.
Caution: Make sure that both pins (reference 11 Image 4–23) of the cathode adapter remain
engaged in the foreseen slots.
5 Nm
5 Nm
5 Nm
5 Nm
3
2
1
11
Image 4–23
Lamp & Lamp House

Barco DP2K-23B Specifications

General

Contrast ratio (typical)	2000:1
Projector native resolution	2K (2048x1080)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	3
AC input voltage	200 - 240 V
Lamp power	4000 W

Weight and Dimensions

Depth	754 mm
Width	604 mm
Height	1129 mm
Weight	133000 g
