Overview
14

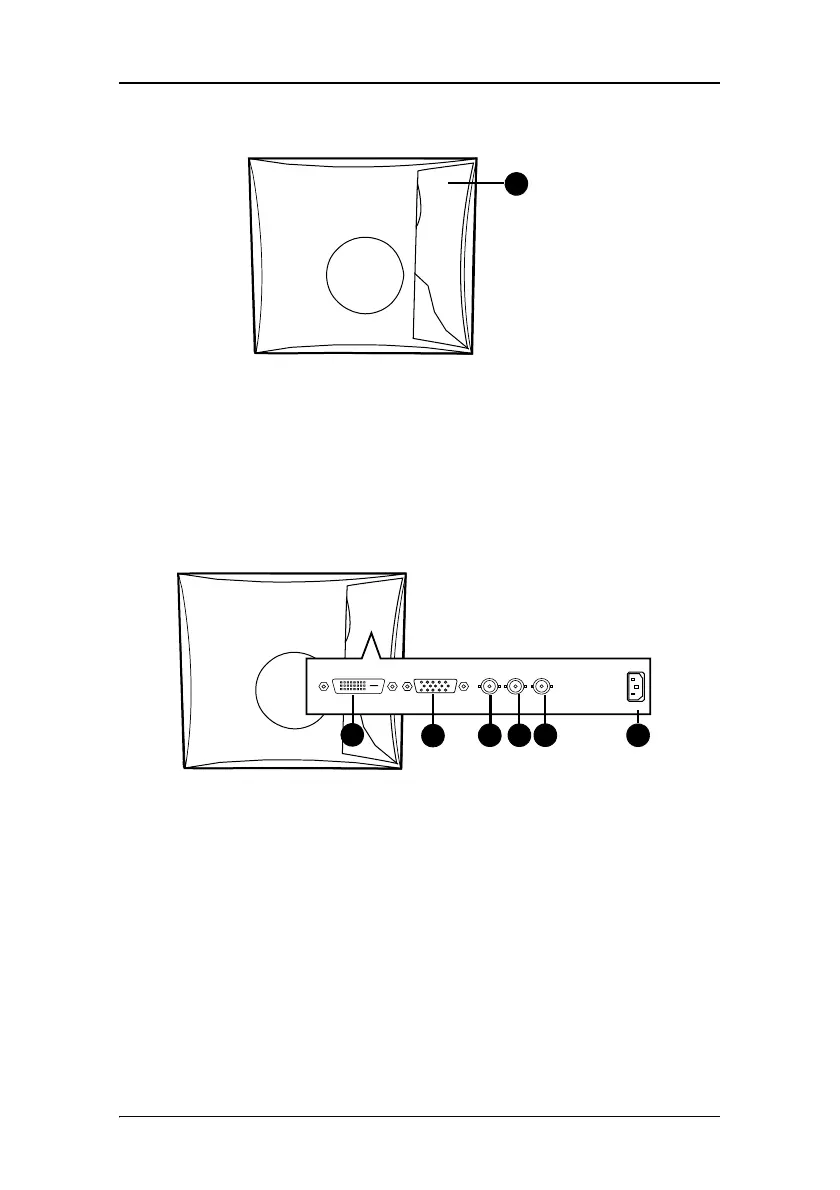

Rear
Figure 2
1. Connector compartment cover
To get access to the connectors, remove the cover by pulling down
the 2 clips at the top of the cover.
Connectors
Figure 3
1. DVI-I video input
2. D-Sub 15 or VGA (analog) video input
3. Analog video input (separate or composite)
This is a monochrome video input
Video amplitude: 500-950 mV
Sync amplitude for composite video: 200-400 mV
1
1 2 3 4 5 6
