3.Physical Installation
3.5
Mounting the Ceiling mount
Necessary tools
Open wrench 17 mm
How to mount
1.
Turn the projector upside down.
2.
Adjustment knob to the back of the projector. Make sure that the mounting holes matches the holes in the projector.
3.
Insert a bolt in each corner and turn in these bolts.

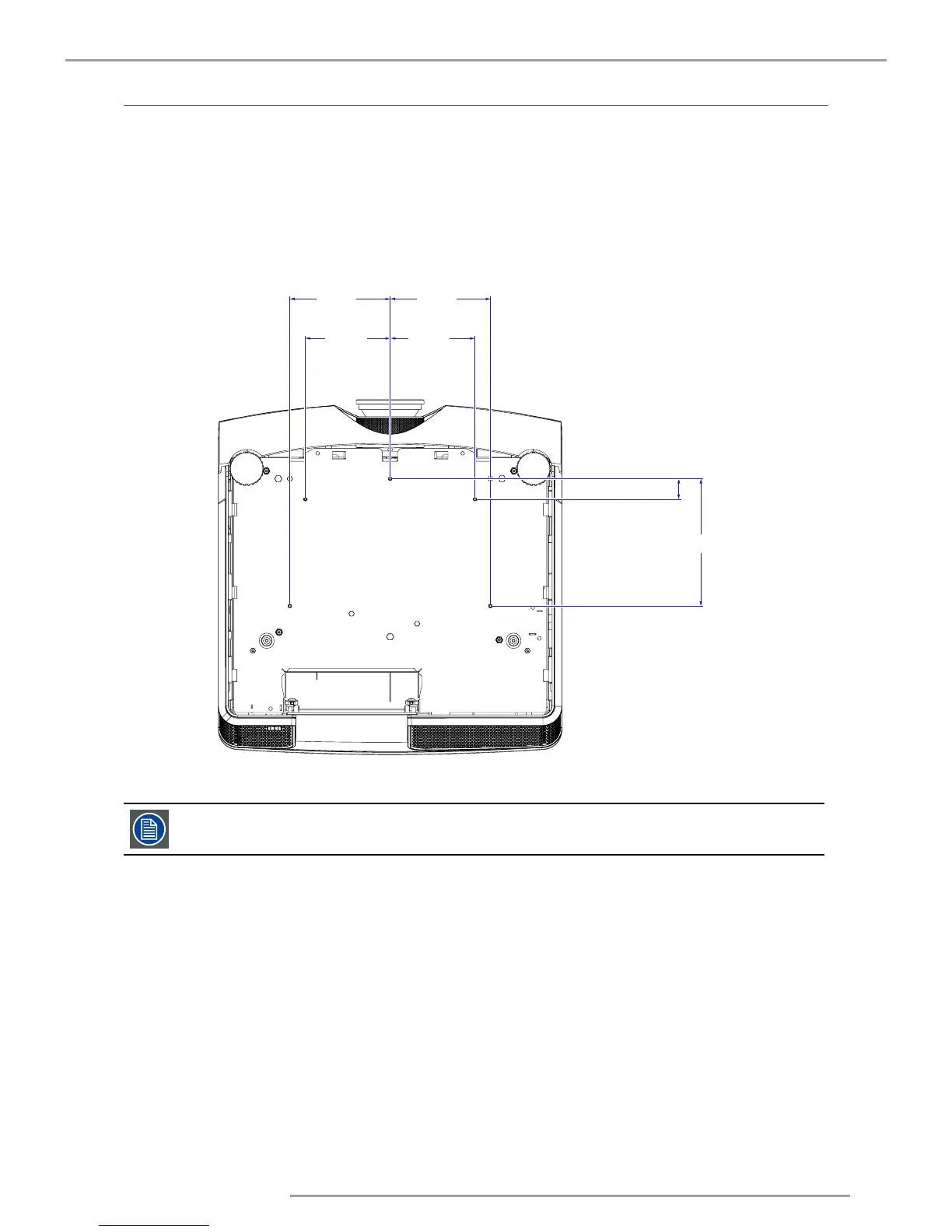

110.00
130.00
110.00
130.00
26.50
165.00
CEILING MOUNT SCREW M M4*0.7*12 PA
N
NOte: Please check your support system for compatability.
