4.Projector Parts and Functions
4.5
Opening the I/O cover

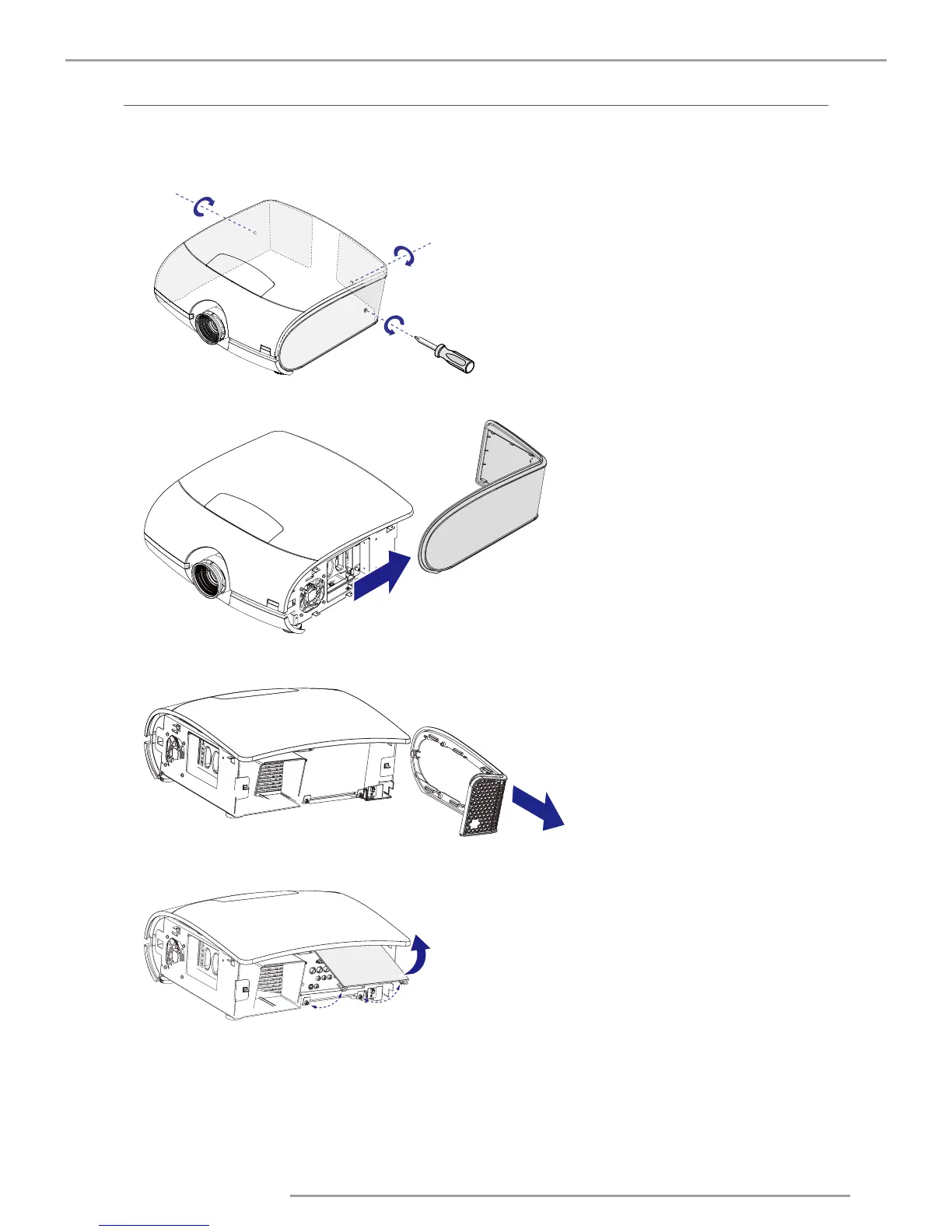

How to open the I/O cover
1.
Loosen the 3 screws from cover.
2.
Pull out the right cover.
3.
Push to release the left cover. And pull out the left cover.
4.
Lift up the I/O cover.
5.
Connect the desired input source.
6.
Install the right and left cover back and tighten 3 screws.
