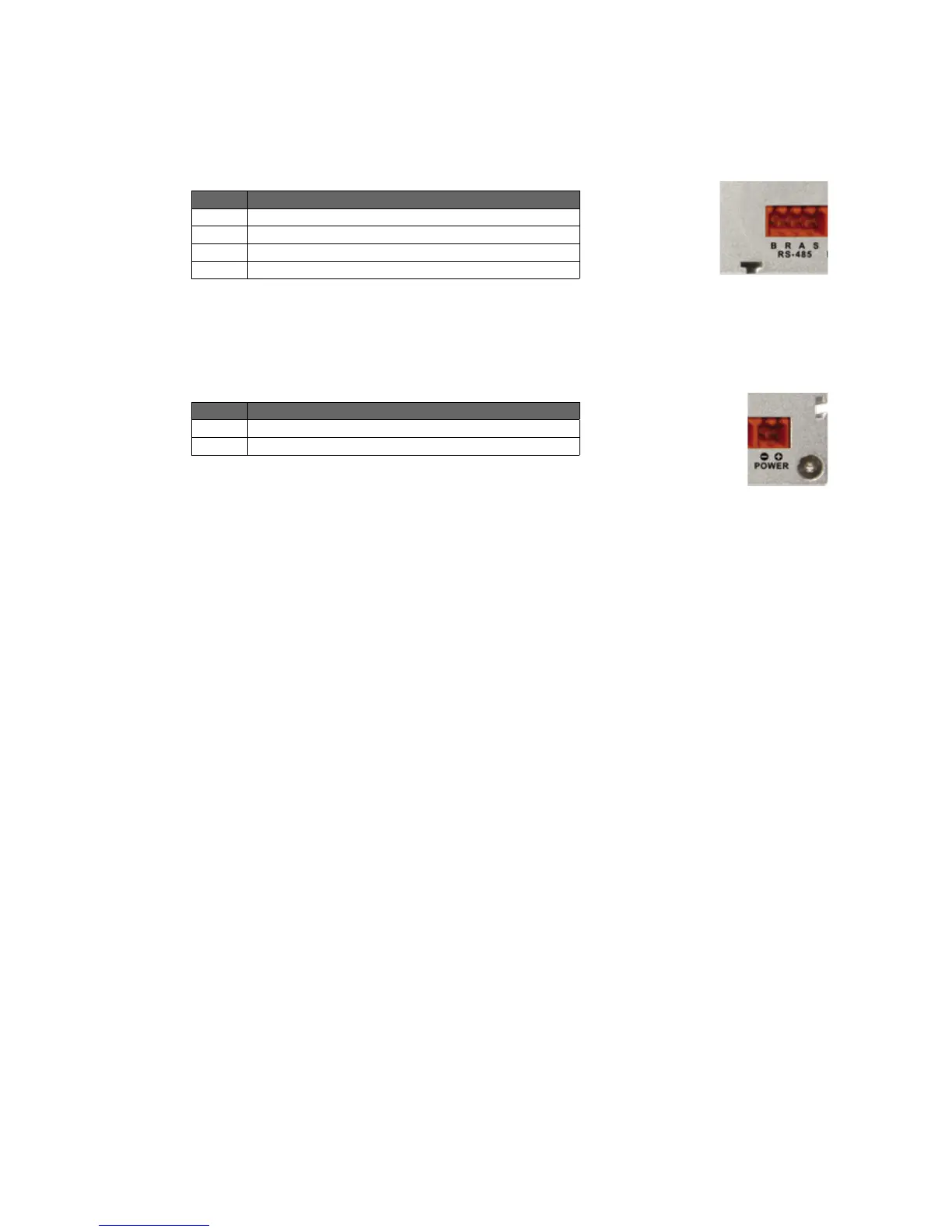

BARIX Exstreamer 1000 - Connector J6 Pinout (RS-485); Connector J7 Pinout (Power)

RS-485 bus (4 pin screw terminal block plug) 1 2 3 4
Pin Description
1
485 B
2
Reference *
3
485 A
4
Shield
*The reference pin is connected via 100 Ohm to the internal ground !
Power (4 pin screw terminal block plug) 1 2
Pin Description
1
Vin -
2
Vin+ 24..48VDC ±20%
BARIX AG | 6 / 14
G) Connector J6
Pin out
H) Connector J7
Pin out
