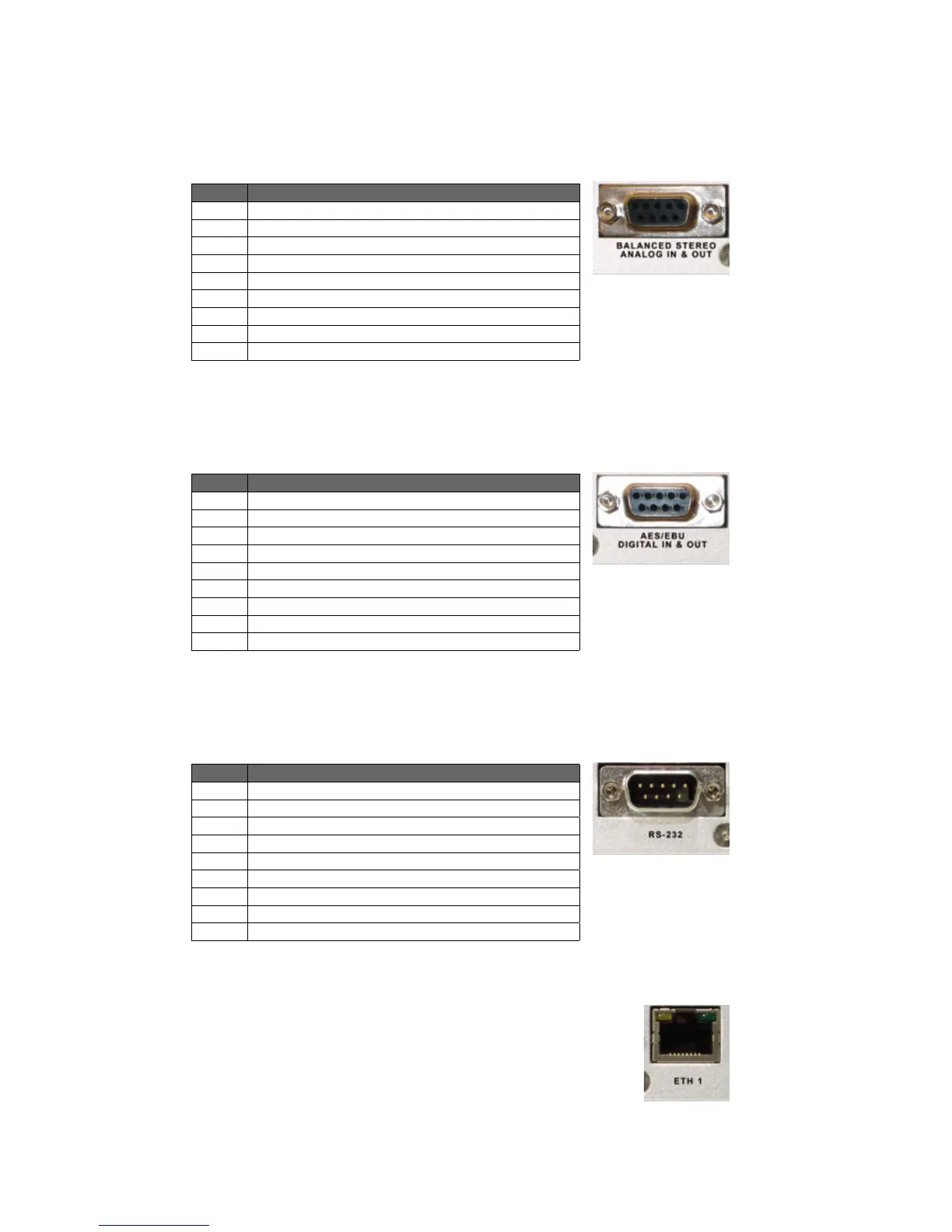

BARIX Exstreamer 1000 - Connector J2 Pinout (Analog Audio); Connector J3 Pinout (AES;EBU Audio); Connector J4 Pinout (RS-232 Serial); Connector J5 Pinout (LAN)

Analog audio In & Out (DSub 9 pin female) 5 4 3 2 1
9 8 7 6
Pin Description
1
Left Out+ [Hot]
2
Left Out- [Cold]
3
Ground [G]
4
Right In+ [Hot]
5
Right In- [Cold]
6
Right Out+ [Hot]
7
Right Out- [Cold]
8
Left In+ [Hot]
9
Left In- [Cold]
AES/EBU In & Out (DSub 9 pin female) 5 4 3 2 1
9 8 7 6
Pin Description
1
AES In- [Cold]
2
AES In+ [Hot]
3
Ground [G]
4
AES Out+ [Hot]
5
AES Out- [Cold]
6
Not connected
7
Ground [G]
8
Ground [G]
9
Not connected
RS-232 serial port (DSub 9 pin male) 5 4 3 2 1
9 8 7 6
Pin Description
1
Not connected
2
Receive Data [RxD]
3
Tran smit Data [TxD]
4
V+ 14.6V, 100mA max
5
Ground [GND]
6
Not connected
7
Ready to Send [RTS]
8
Clear to Send [CTS]
9
Not connected
LAN port 10/100 (RJ-45 socket)
Standard Ethernet pinout
BARIX AG | 5 / 14
C) Connector J2
Pin out
D) Connector J3
Pin out
E) Connector J4
Pin out
F) Connector J5
