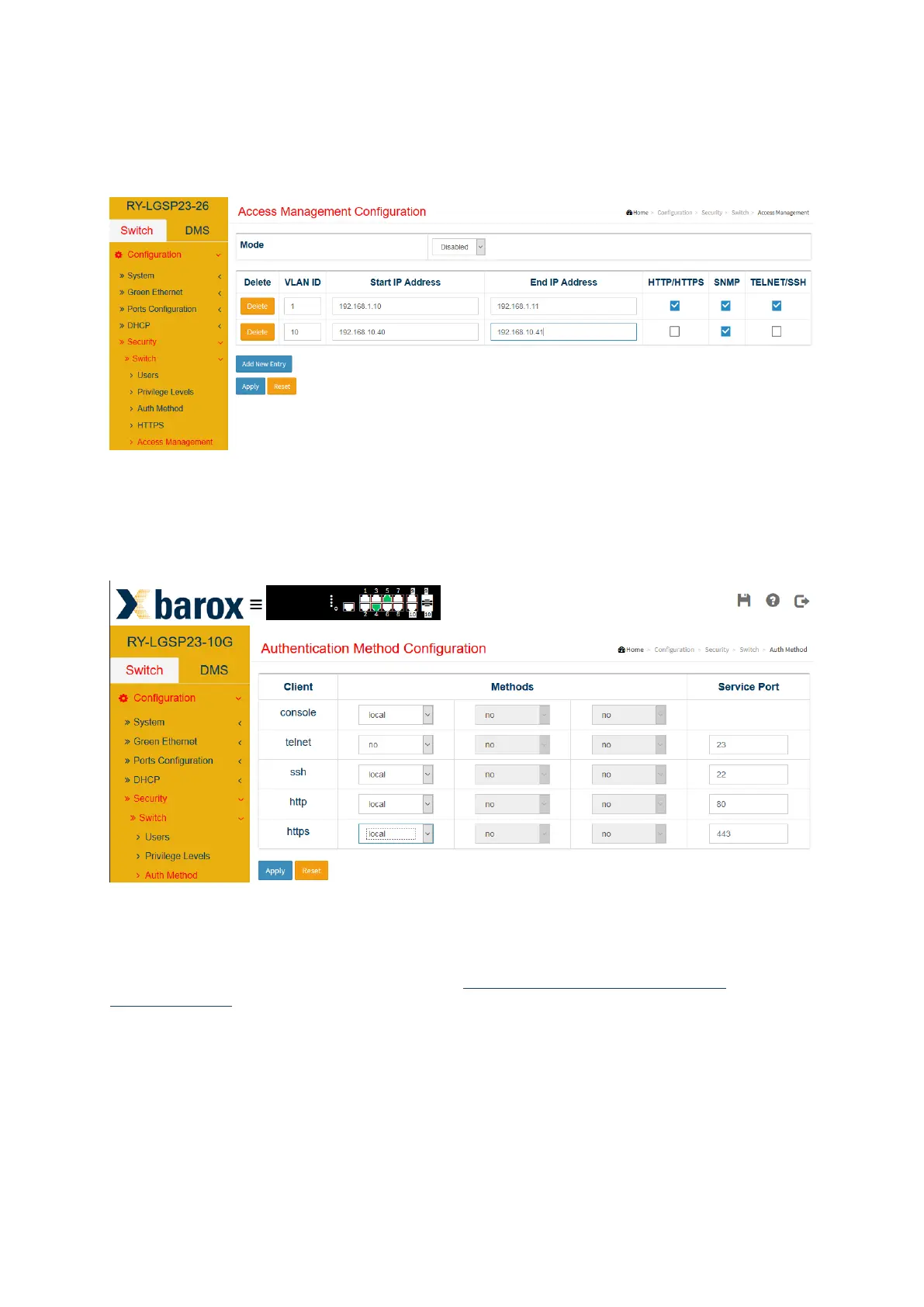

The restriction of the management access and its methods to certain IP address ranges and
VLANs is possible. This can be effected in the access management as shown in the following
example.
5.3.3. Access Management and Use of HTTPS
The setting option for using the HTTPS protocol is shown below.
The standard port can be changed also for this method.
The http option should be disabled where this mode is activated. The switch GUI is called up
in the browser using the HTTPS protocol phrase https://192.168.XX(IhreManagement
IP):1234(IhrPort) in the URL field. Following this the browser communication to the
management interface is effected using encryption.
