barox Kommunikation 65

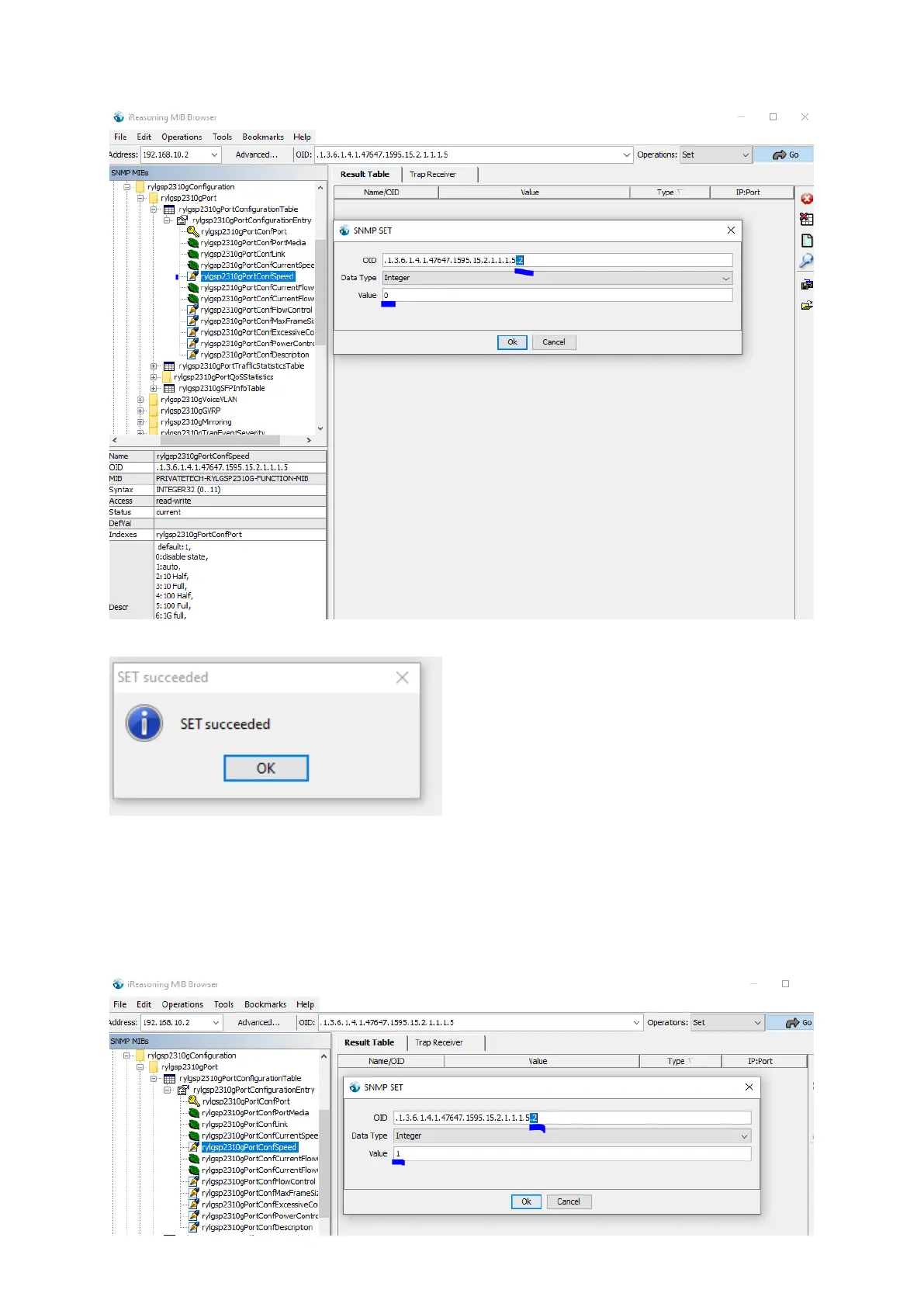

For the activation of port 2 of the switch the port configuration is searched in the MIB directory.
When doing so attention must be paid for selecting the respective information block with write
function. The SET operation is opened by a click on „Go“ and the OID entry is complemented
by „ .2“ (label of port 2). In addition to this the value „1“ (for activation) is entered and confirmed
by „OK“. A respective success message is generated upon a successful operation.
Following the upgrade the new firmware is immediately available. Any old firmware can very
simply be re-activated in the menu „Firmware Selection“ where the old firmware shall be applied
again for some reason.
