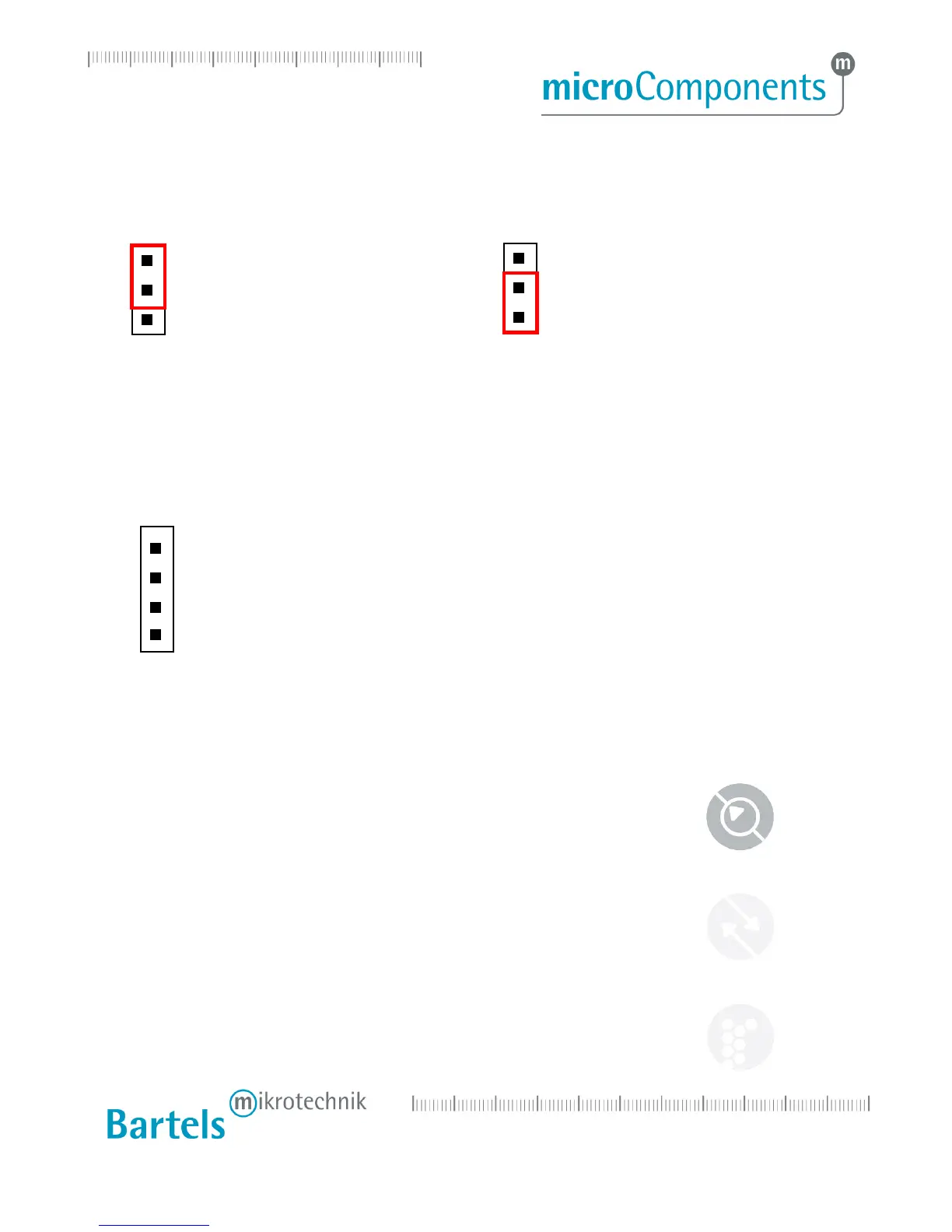

7.4.3 Operation voltage setting with jumper J3
Setting of Jumper J3
Driving voltage via screw terminal CON 1 Driving voltage via USB port
Pin 1 (Vcc) and Pin2 (GND) of CON 1
7.5 Connecting the pump via CON2
If the mp6/mp6-pp micropump shall not be connected directly to the PCB with the Molex connector CON 3,
an extension cable can be soldered to the connector CON 2.
The solder pads have the following pin assignment:
CON 2
For further details, please refer to chapter 4.1.1 of this manual. Please make sure that the cable can handle
voltages up to 250 V peak-to-peak and ensure proper insulation of the cable.
1
1
1
P2 - (negative voltage piezo 2)
P2 + (positive voltage piezo 2)
P1 + (positive voltage piezo 1)
P1 - (negative voltage piezo 1)
