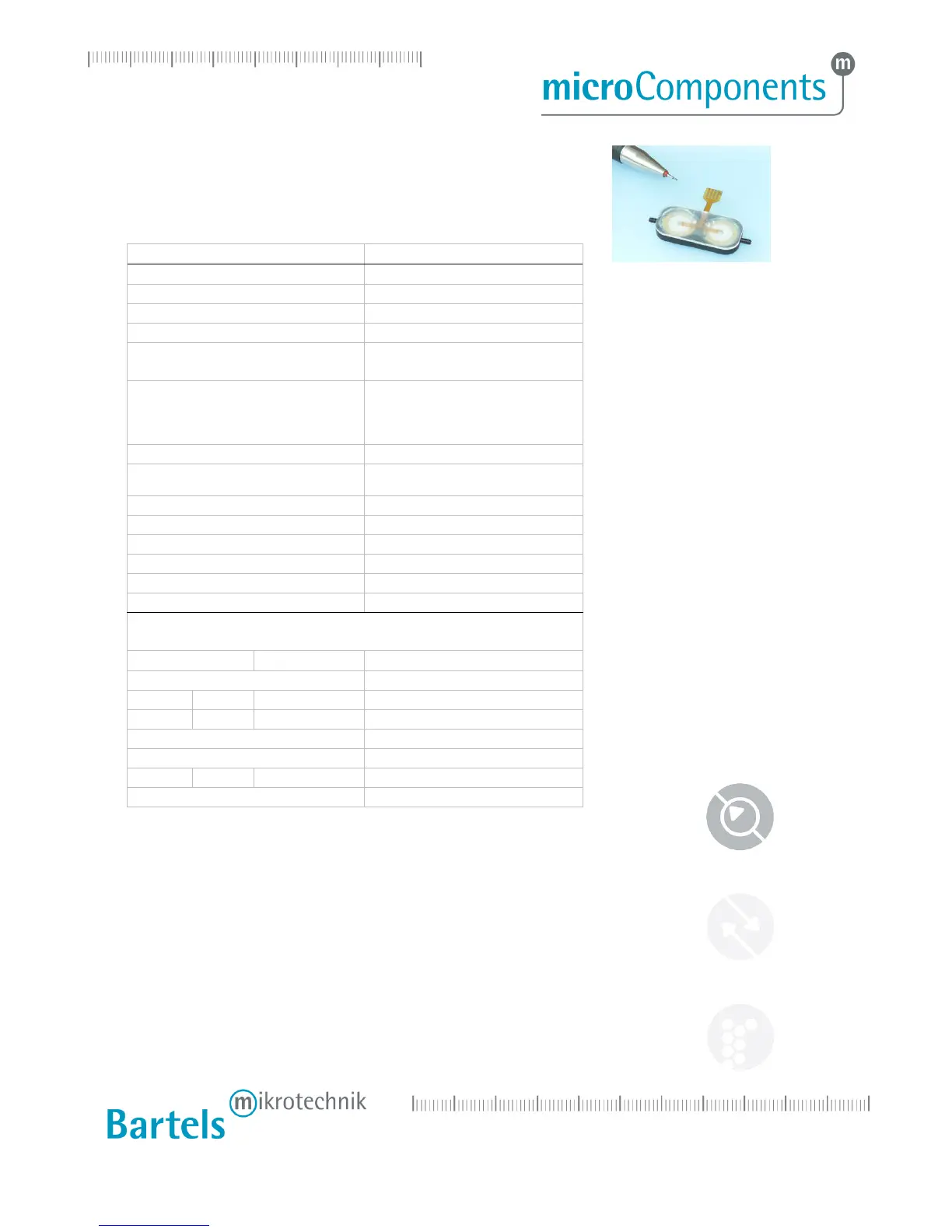

3.2 Technical specifications mp6-pp
1
mp6
-
pp
Order code: mp6
-
pp
Pump type
piezoelectric diaphragm pump
Number of actuators
2
Dimensions without connectors
30 x 15 x 3.8 mm³
Weight
2 g
Fluidic connectors
tube clip (oute
r diameter 1.
8
mm, length 3.5 mm)
2
Electric connector
flex connector / Molex FCC
1.25 mm pitch
Power consumption
< 200 mW
Self
-
priming
yes
3
Pumping media
liquids, gases and mixtures
Operating temperature
t.b.d.
Life time
t.b.d.
IP code
IP33
4
Ma
terials in contact with media
poly propylene (PP)
Suitable evaluation controller
mp
-
x, mp6
-
EVA and mp6
-
OEM
Typical values of flow and back pressure for selected media
(values defined with mp-x: 250 V, SRS):
Gases
Max. flow
14 ml/min
+/
-
15%
(300 Hz)
Max. back pressure
150 mbar
+/
-
15%
(300 Hz)
Liquids
Water
Max. flow
5 ml/min +/
-
15% (100 Hz)
Max. back pressure
650 mbar +/
-
15% (100 Hz)
MeOH
Typ. m
ax. flow
6.8
ml/min (100 Hz)
Typ. m
ax. back pressure
550 mbar (100Hz)
1
Typical values. Values can vary under application conditions. Content is subject to changes without notice.
2
recommended tubing: 1 mm inner diameter.
3
Conditions: suction pressure < 10 mbar, DI water, settings mp-x: 100 Hz, 250 V, SRS, the max. flow rate will be reached after a few minutes of
operation time.
4
Can be changed to IP44.
