6.3 Connecting the mp6 to the mp6-OEM controller
The mp6/mp6-pp pump can be connected to the mp6-OEM via a standard electrical connector
manufactured by Molex, see chapter 4.1.1
6.4 Typical schematics
6.4.1 Fixed pump rate
The mp6-OEM can drive the mp6/mp6-pp without the need of external components. In this case the pumps
frequency and amplitude is fixed determined by internal components to 235 V and 100 Hz.

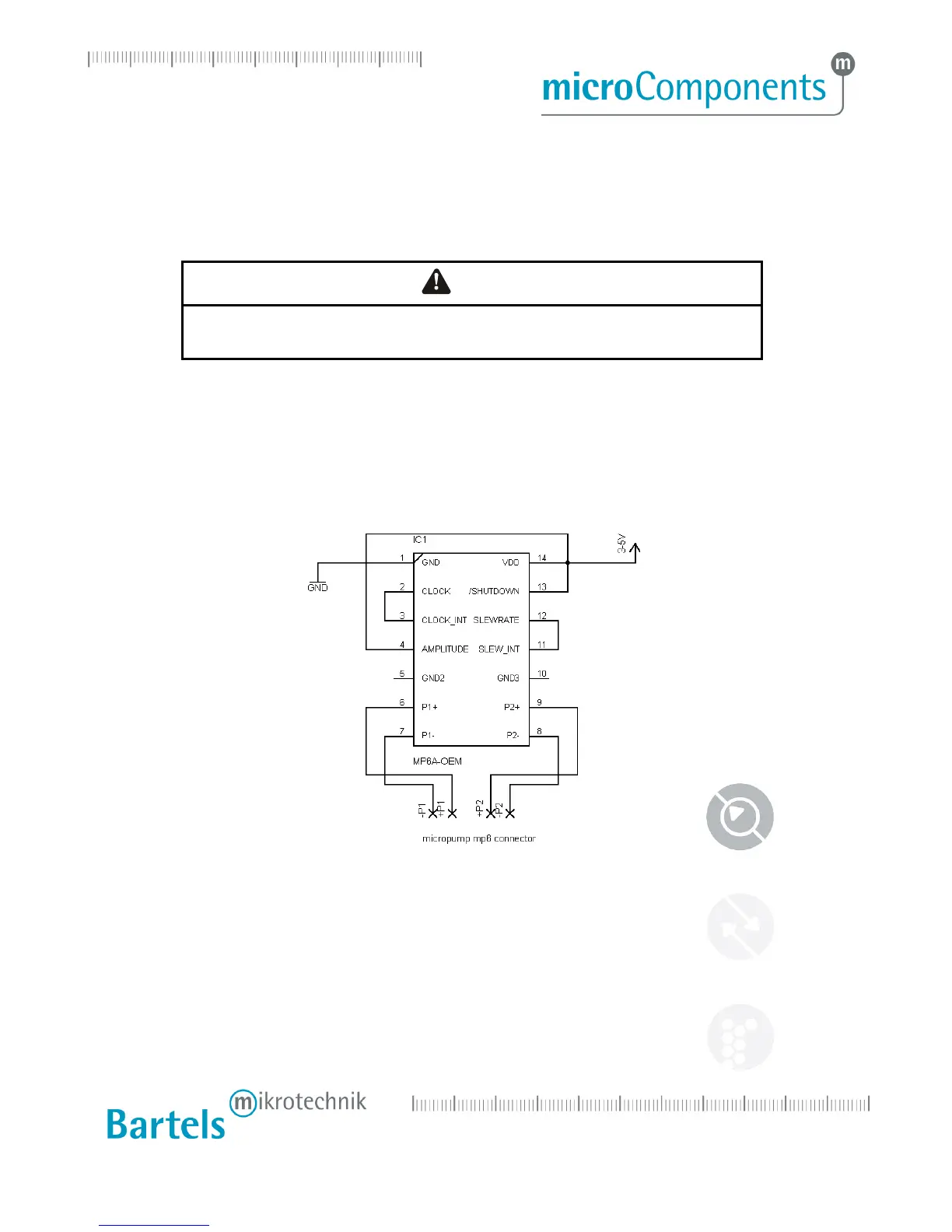

Schematic 1: Fixed amplitude of 235 V and fixed frequency of 100 Hz ±10 % with internal components.
6.4.2 Pump rate set by external components
In this example the frequency and the amplitude is set by external components. The amplitude can be
varied from approximately 85 V to 235 V peak to peak. The frequency can be changed from 25 Hz to 120
Hz. For higher frequencies the amplitude will decrease. Lower frequencies are also possible but stability of
the output signal needs to be checked.
DANGER
THE MP6-OEM MODULE CAN CARRY HIGH VOLTAGE !
BE CAREFUL, WHILE CONNECTING AND HANDLING THE MODULE!
