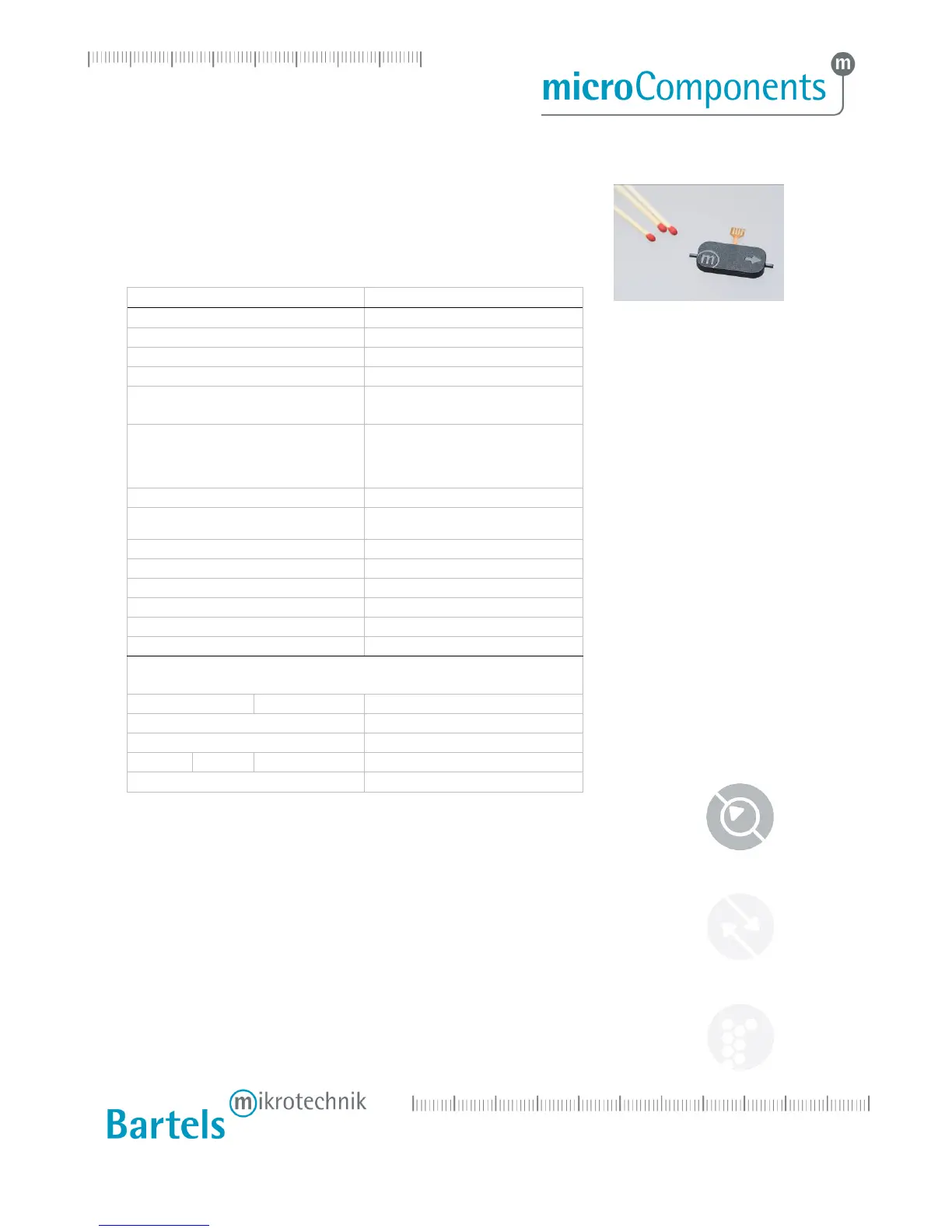

3. Technical specifications
3.1 Technical specifications mp6
1
mp6
Order code: mp6
Pump type
piezoelect
ric diaphragm pump
Number of actuators
2
Dimensions without connectors
30 x 15 x 3.8 mm³
Weight
2 g
Fluidic connectors
barbed tube clip (outer diameter
1.9 mm, length 3.5 mm)
2
Electric connector
flex connector / Molex FCC
1.25 mm pitch
Power consum
ption
< 200 mW
Self
-
priming
yes
3
Pumping media
liquids, gases and mixtures
Operating temperature
0
–
70°C
Life time
5000 h
4
IP code
IP33
5
Materials in contact with media
polyphenylene sulphone (PPSU)
6
Suitable evaluation controller
mp
-
x, mp6
-
EV
A and mp6
-
OEM
Typical values of flow and back pressure for selected media
(values defined with mp-x: 250 V, SRS):
Gases
Max. flow
18 ml/min (300 Hz)
Max. back pressure
100 mbar (300 Hz)
Liquids
Water
Max. flow
7 ml/min +/
-
15% (100 Hz)
Max. back
pressure
600 mbar +/
-
15% (100 Hz)
1
Typical values. Values can vary under application conditions. Content is subject to changes without notice.
2
recommended tubing: 1.3 mm inner diameter.
3
Conditions: suction pressure < 10 mbar, DI water, settings mp-x: 100 Hz, 250 V, SRS, the max. flow rate will be reached after a few minutes of
operation time.
4
Conditions: DI water, room temperature, settings mp-x: 100 Hz, 250 V, SRS.
5
Can be changed to IP44.
6
The mp6 is not stable against concentrated alcoholic solutions as MeOH or EtOH.
