Bartlett Genesis LT3140 User Manual

14
Step 1
Read temperature inside kiln
Step 2
Controller compares
temperature to the
Traveling Set Point
If temperature is above the
traveling set point, the
controller turns the relay off
If temperature is below the
traveling set point, the
controller turns the relay on
The controller repeats
the process continually
throughout the firing.
POWER
PLUG
CONTROLLER
Sensor
(thermocouple)
Relay off when
temperature
above traveling
set point
TRAVELING
SET POINT
KILN
RELAY
SWITCH
Relay on when
temperature
below traveling
set point
CONTROL OUTPUT TO RELAY
Heating Element

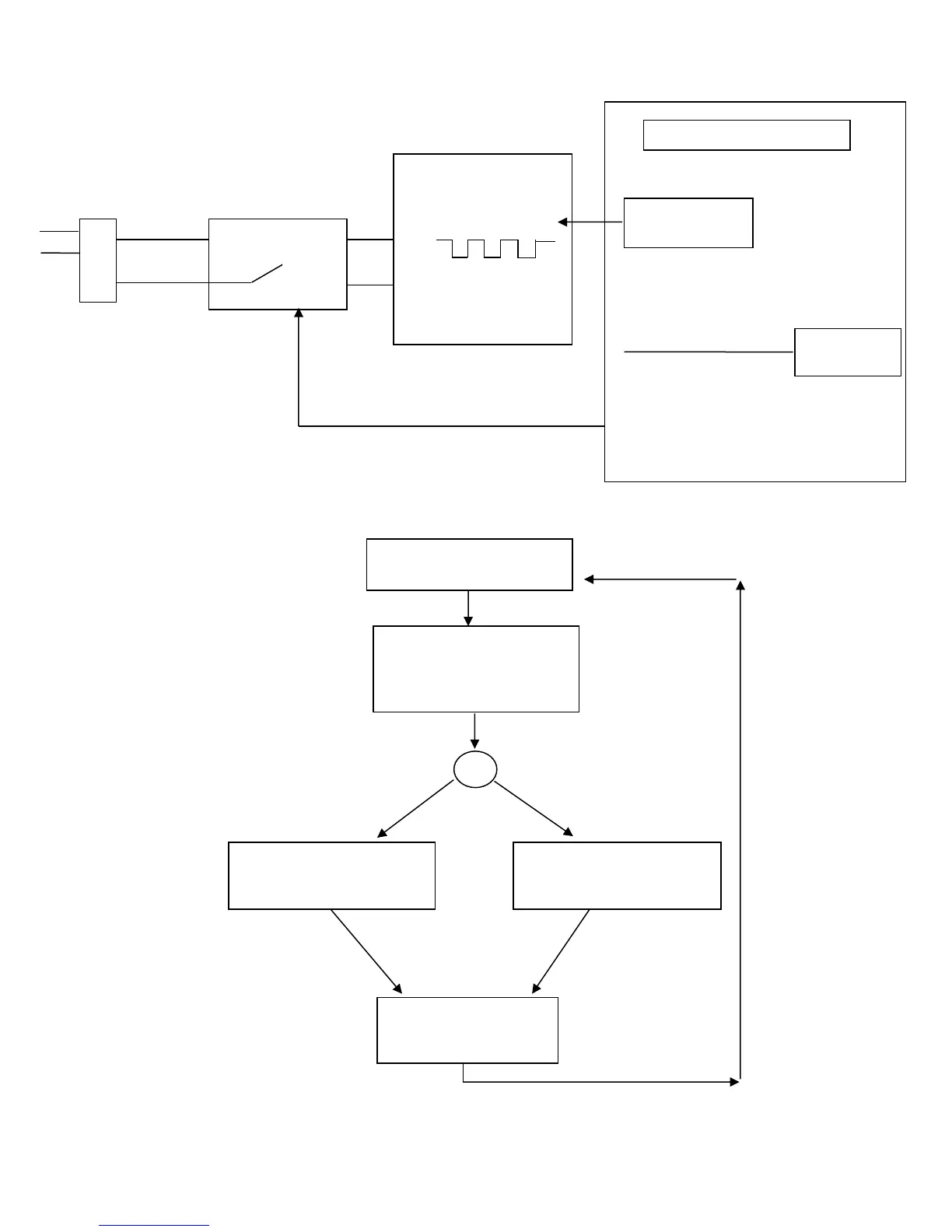

Figure 9: Shows a flow chart of the control algorithm in its simplest form. Like your home thermostat.
Figure 8: Kiln Operation

Bartlett Genesis LT3140 Specifications

General

Brand	Bartlett
Model	Genesis LT3140
Category	Controller
Language	English
