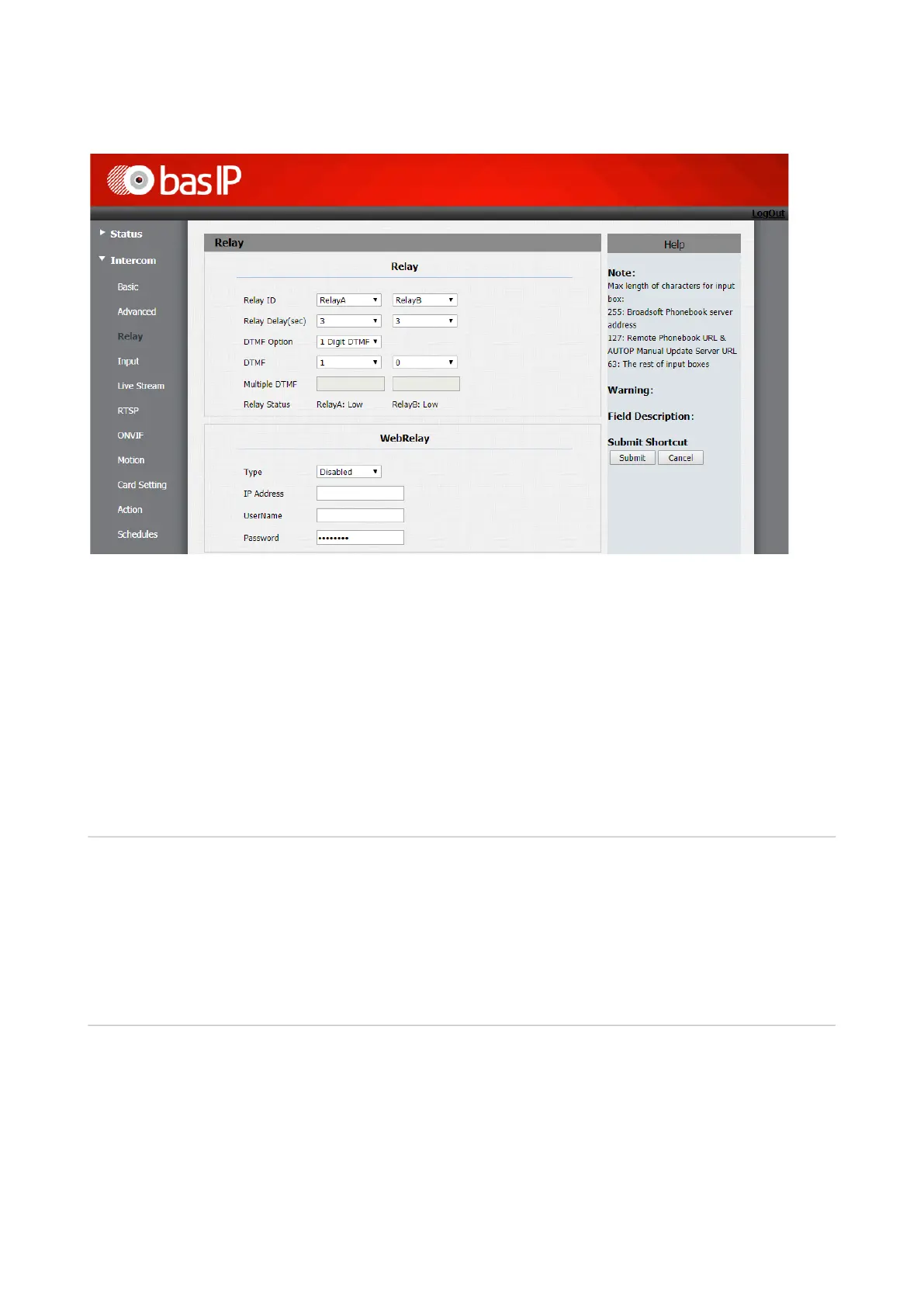

Configuration through web interface– 16
Relay ID: Relay ID.
Relay delay: The time by which the relay will be switched (0-10 sec.).
DTMF option: The number of characters DTMF-code transmitted to trigger the relay.
DTMF: Code transmitted to trigger the relay. The option is active if the item "1 character DTMF"
is selected in the DTMF option.
Multiple DTMF: A field to enter a custom DTMF code transmitted to trigger the relay. The option
is active if the item "2 - 4 DTMF characters" is selected in the DTMF option.
Relay Status: The current status of the relay is closed or open.
Web relay
Type: A function that allows you to enable/disable the ability to work with 2N WebRelay.
IP address: IP address 2N WebRelay.
Username: 2N WebRelay web interface login.
Password: The password for the 2N WebRelay web interface.
Open relay via http
