Configuration through web interface– 34
Payload type: Profile of the RTP data.

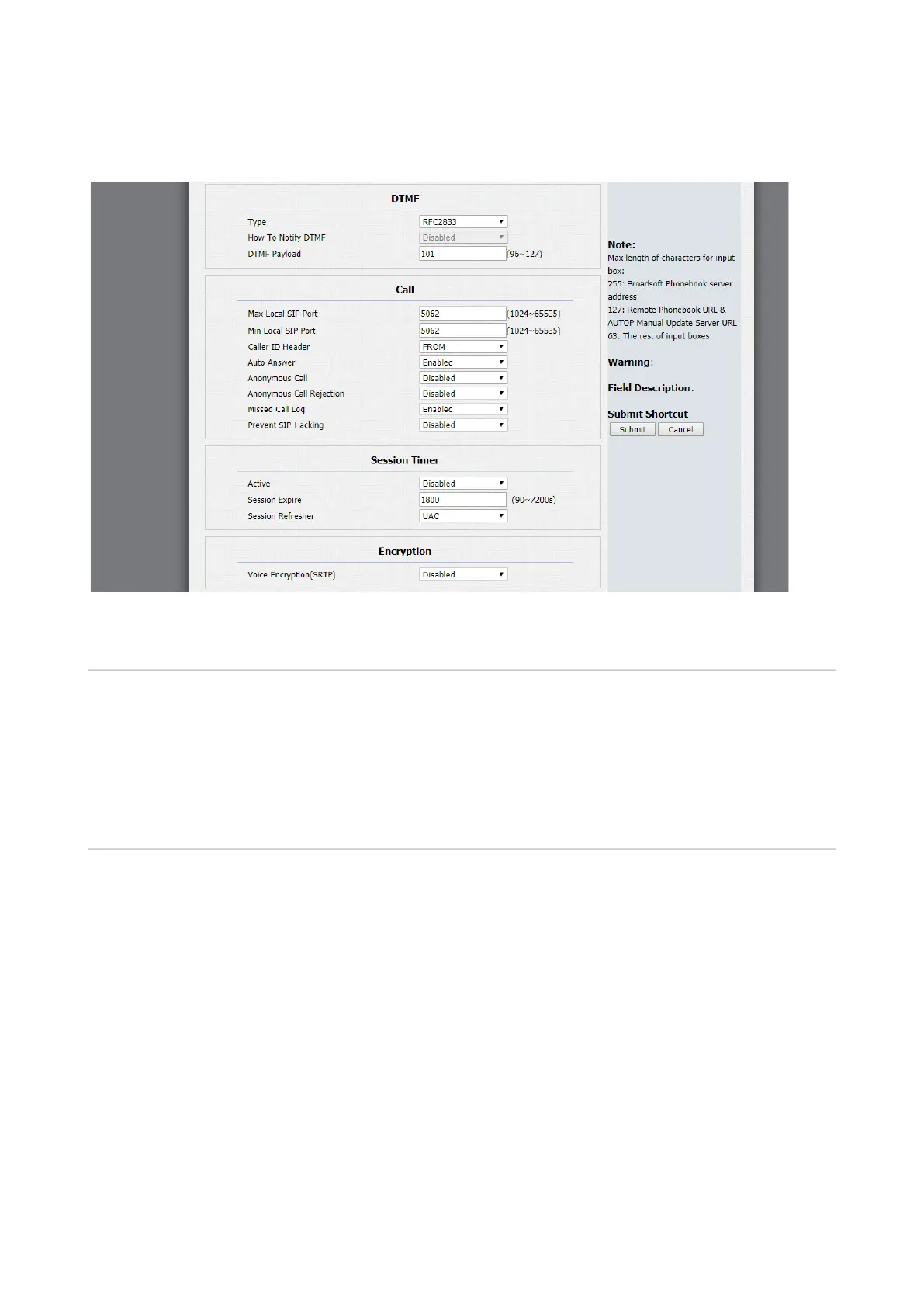

DTMF
Type: Type of used DTMF (Inband, RFC2833, Info, Inband + Info, Info +RFC2833).
Type of notification: Type of used event for SIP Info (Info, Inband + Info or Info + RFC2833). The
item is active if DTMF, DTMF-Relay or Telephone-Event is selected.
DTMF Payload: The data profile may be selected in the range from 96 to 127.
Call
Maximum local SIP port: The maximum value of the ports range used for client registration (1024
- 65535).
Minimum local SIP port: The minimum value of the ports range used client registration (1024 -
65535).
Caller ID Header: The header type used for the Caller-ID.
Auto Answer: Enable/disable auto answer when an incoming call is received.
Anonymous Calls: Enable/disable receiving anonymous calls.
Anonymous Call Rejection: Enable/disable an automatic rejection of anonymous calls.
Missed Call Log: Enable/disable of missed call log.
Prevent SIP Hacking: Enable/disable automatic protection from hacking.
