Installation and connection– 55

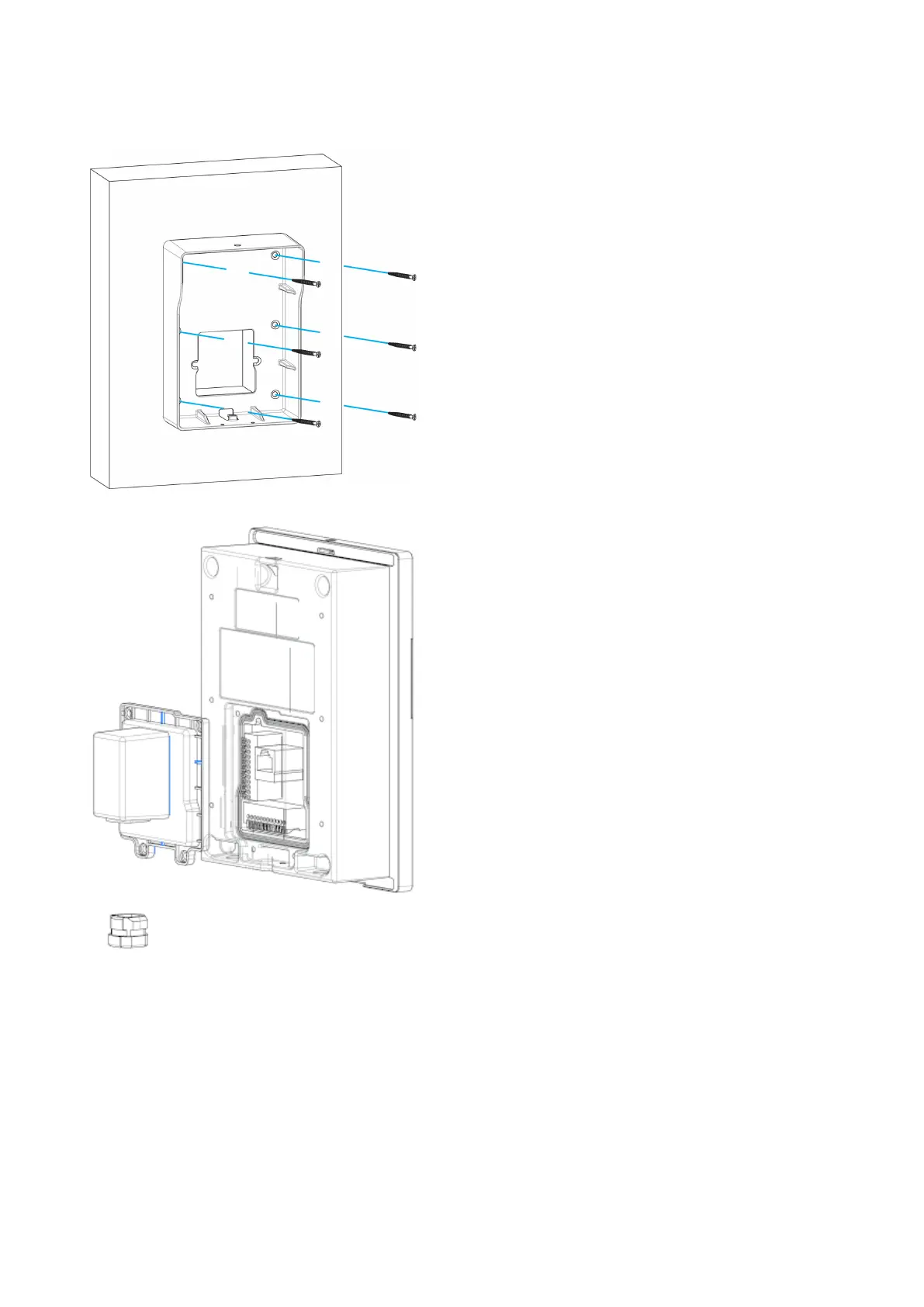

6. Install a protective cover and sealing ring as shown in figure.
7. Make a connection of all wires and connect the sealing ring with protective shroud as shown
in figure.
