Installation and connection– 58

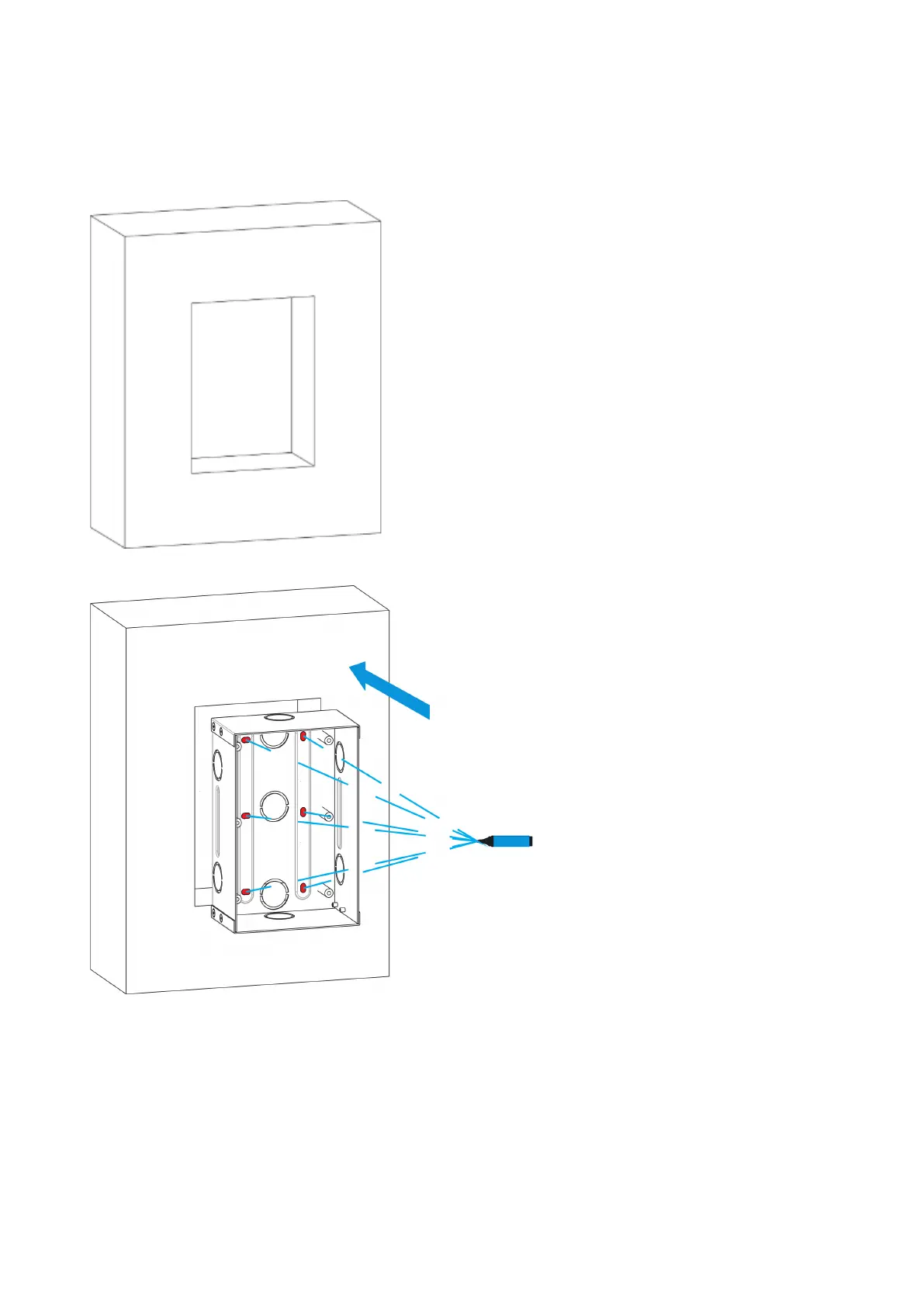

1.Make a hole in the wall of the following sizes 163.8 x 110.1 x 65 mm. It will serve for placing of
bracket for flush mounting and all cable connections.
2. Install the bracket into ready hole and make marks for subsequent bracket mounting.
3. Make holes using an electric drill according to the made marks. Use a drill bit with a diameter
of not more than 5 mm.
