Configuring the Camera
28 Basler IP Camera

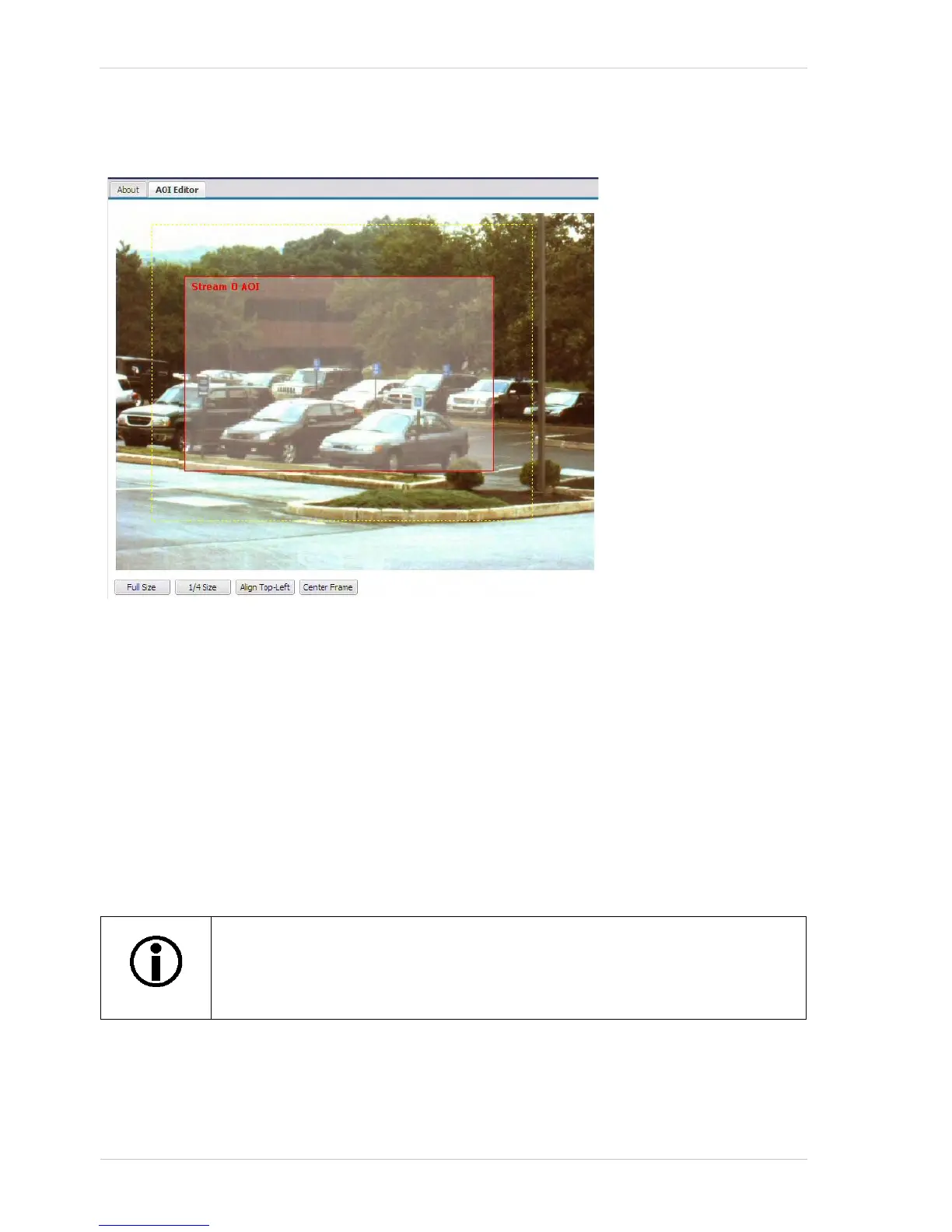

Stream AOI Editor - Whenever a stream tab is selected, an AOI Editor screen will also be
available as shown below.
Rather than setting numbers in the boxes on the stream tab, you can use the editor to set the AOI
size and position for the stream controlled by the currently selected tab. To set the stream AOI with
the editor, simply use your cursor to drag the edges of the red rectangle that represents the stream
AOI. You can also use the buttons at the bottom of the editor to set the stream AOI to the full size
of the sensor AOI, to set the stream AOI to 1/4 of the sensor AOI’s size, to align the stream AOI to
the top left side of the sensor AOI, or to center the stream AOI within the sensor AOI.
When you are working with a stream AOI, remember that the stream AOI must be contained within
the sensor AOI. So if you have changed the size or the position of the sensor AOI, this will restrict
what you can do with the stream AOI.
Note that the dotted yellow rectangle in the stream AOI Editor shows the current size and position
of the sensor AOI.
A stream AOI must be contained within the sensor AOI (see Section 3.4.1 on
page 16, Figure 3 on page 16, and Figure 4 on page 24). So if you have
decreased the size of the sensor AOI, you will find that the allowed settings for the
stream AOIs will be restricted.
