3-14 9469200995
BESTCOMSPlus® DGC-2020ES
1. Place the DGC-2020ES in OFF mode. This can be accomplished by clicking the Off button on the
Control screen inside the Metering Explorer or by pressing the Off button on the DGC-2020ES front
panel.
2. Enable the expansion module that is present in the system. If it has not already been enabled, enable
the expansion module on the SETTINGS > SYSTEM PARAMETERS > REMOTE MODULE SETUP
screen.
3. Verify that the DGC-2020ES and the associated expansion module are communicating. This can be
verified by examining the pre-alarm status using the Metering Explorer in BESTCOMSPlus or from
the front panel by navigating to METERING > ALARMS-STATUS > PRE-ALARMS. There should be
no Loss of Comms pre-alarms in the pre-alarm status when communications are functioning properly.
4. Connect to the DGC-2020ES through the USB port if not already connected.
5. Select Upload Device Files from the Communication pull-down menu.
6. You will be asked to save the current settings file. Select Yes or No.
7. When the Basler Electric Device Package Uploader screen (Figure 3-14) appears, click on the Open
button to browse for the device package you have received from Basler Electric. The Package Files
along with File Details are listed. Place a check in the boxes next to the individual files you want to
upload.

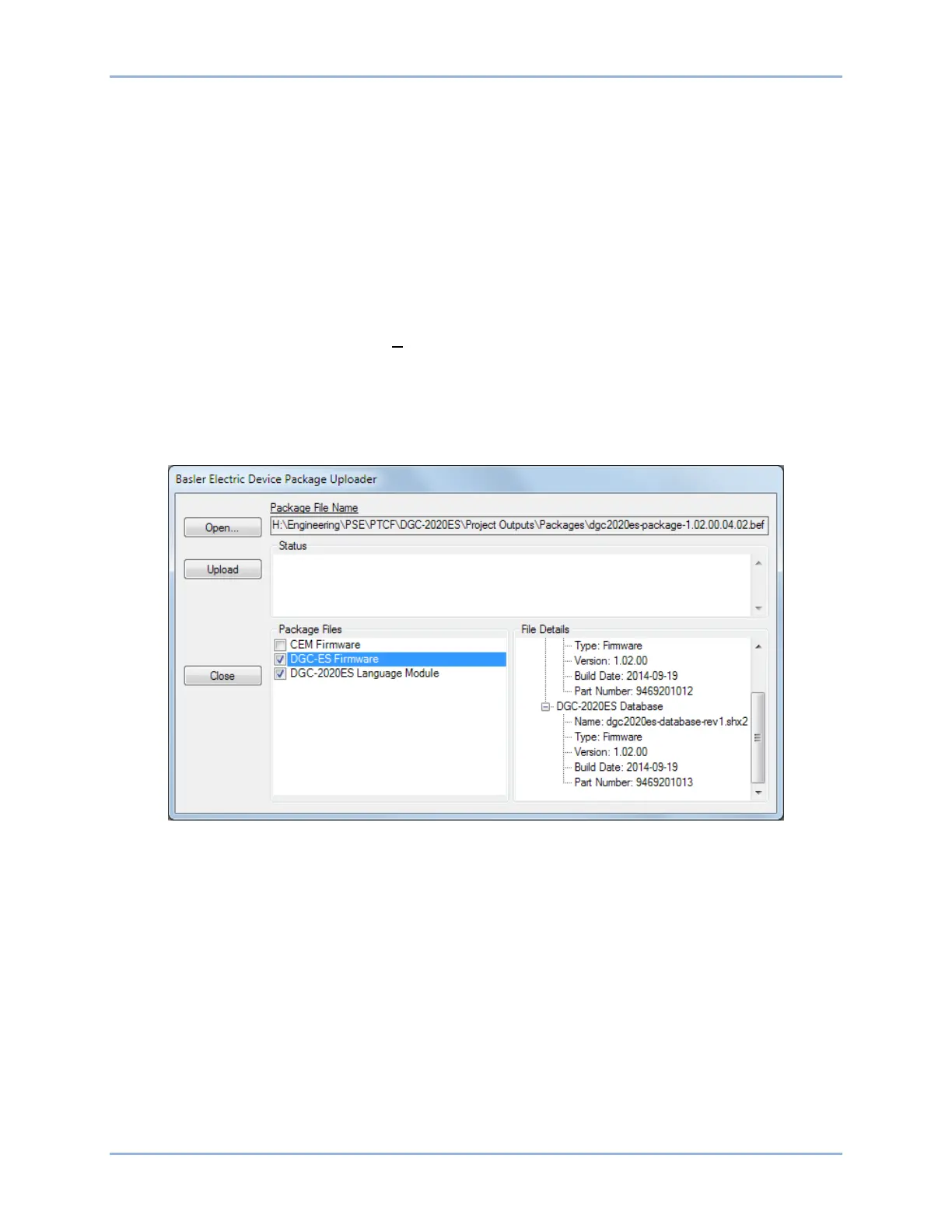

Figure 3-14. Basler Electric Device Package Uploader
8. Click on the Upload button and the Proceed with Device Upload screen will appear. Select Yes or No.
9. After selecting Yes, the DGC-2020ES Selection screen will appear. Select the communication port to
begin upload. Refer to Figure 3-15.
10. After file(s) have been uploaded, click the Close button on the Basler Electric Device Package
Uploader screen and disconnect communication to the DGC-2020ES.
