AW00118702000 Pixel Data Output
Basler racer Camera Link 31

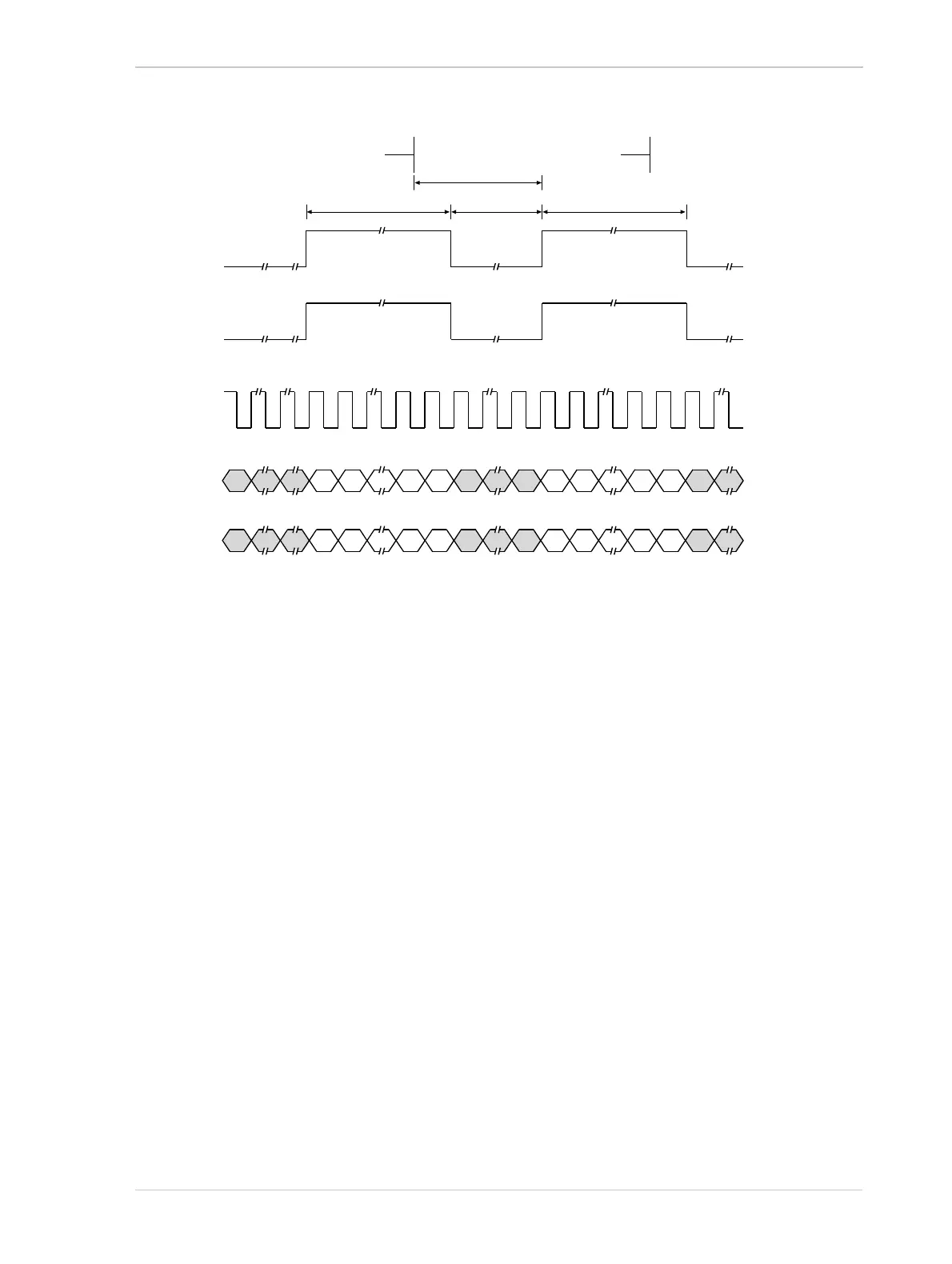

Fig. 10: Timing of Pixel Data Transmission for the 1X2 Tap Configuration
Pixel
Clock
D0
Pixel Data
(12, 10, or 8 bits)
W-3 W-113 1
D1
Pixel Data
(12, 10, or 8 bits)
W-2 W24 2
3
4
Data
Valid
W-3 W-1
W-2 W
Line
Valid
Line N Line N+1
C
BB
End of
Exposure
of Line N+1
A
End of
Exposure
of Line N+2
TIMING DIAGRAMS ARE NOT DRAWN TO SCALE.
W = width = the last pixel according to the current image AOI (e.g., the 2048th pixel of the image AOI
when the image AOI width is set to 2048).
