Item # Part # Description Qty
49 BFP-10963
Leg Ext/Leg Curl Frame Support
1
50 BFP-51836 Curved Anti-Deflection Plate 1
51 BFP-52132 Anti-Deflection Plate 1
52 BFP-10867 Leg Ext/Leg Curl Cam 1
81 BFH-50165 1” Snap Ring 2
100 BFP-51750 SHCS 3/8” x 2 3/4” 2
106 BFP-51756 SHCS 3/8” x 5 1/4” 2
110 BFH50204 3/8” Curved Washer 4
111 BFH-50146 3/8” Flat Washer 4
112 BFH-50157 3/8” Nylock 4

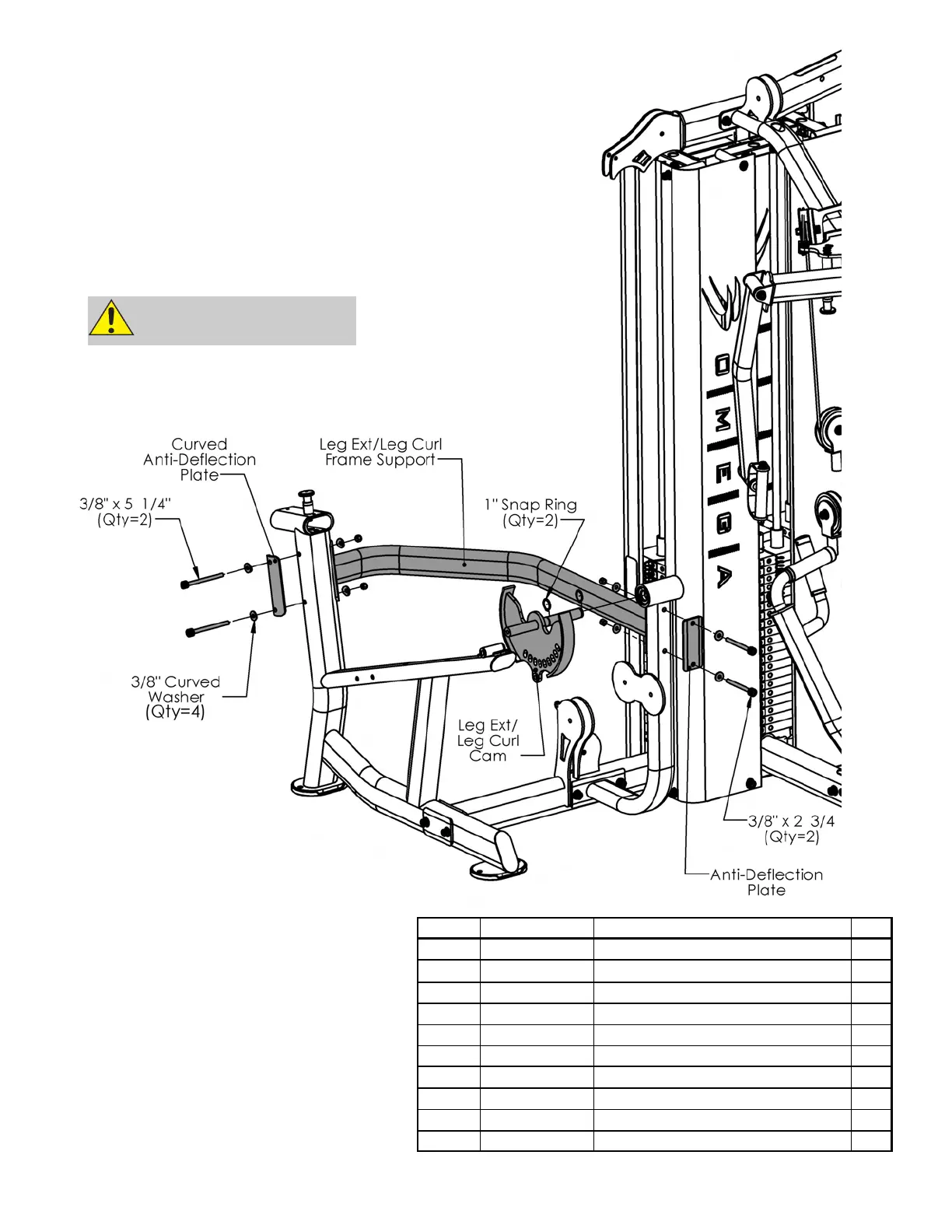

Step 14:
Figure 14
Make Sure All Bolts Are
Tightened before moving on
All Flat Washers and Nylocks are 3/8”
unless otherwise noted. Anywhere a
washer is against the round side of a tube
there is to be a
3/8” CURVED WASHER
instead of a
3/8” FLAT WASHER.
To Next Page
