All Flat Washers and Nylocks are 3/8”
unless otherwise noted.

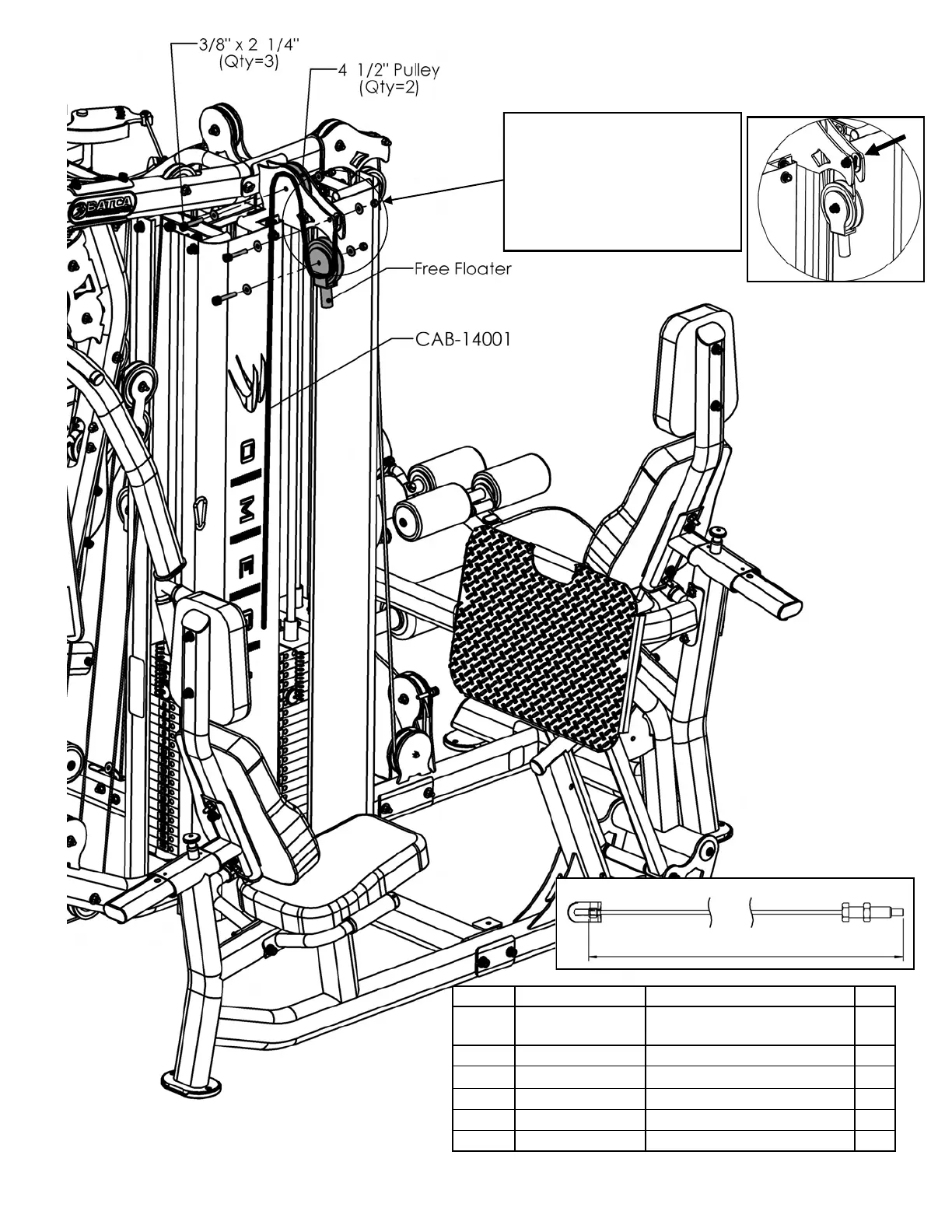

Step 29:
Figure 29
Item # Part # Description Qty
168 CAB-14001
Weight Stack to Free
Floater 1
144 BFP-10838 Free Floater 1
149 BFH-50174 4 1/2” Pulley 2
156 BFP-51752 SHCS 3/8” x 2 1/4” 3
165 BFH-50146 3/8” Flat Washer 6
166 BFH-50157 3/8” Nylock 3
Do not over tighten the
2 1/4” bolt that goes
through the Cable
Strap End. The Strap end
should be able to pivot
after the bolt is
tightened.
CAB-14001
72 3/16”
To Next Page
