Batca Fitness Systems 32 Omega 4 Owner's Manual
All Flat Washers and Nylocks are
3/8” unless otherwise noted.
Item # Part # Description Qty
126 CAB-14000
Free Floater to Leg Ext/Leg Curl Cam
1
68 BFP-51883 Double Pulley Cover 1
76 BFH-50174 4 1/2” Pulley 4
94 BFH-50351 1 3/8” Shoulder Bolt 1
97 BFP-51759 SHCS 3/8” x 2” 1
96 BFH-50145 FHSCS 3/8” x 2” 2
98 BFP-51752 SHCS 3/8” x 2 1/4” 2
108 BFH-50267 5/16” Nylock 1
111 BFH-50146 3/8” Flat Washer 6
112 BFH-50157 3/8” Nylock 5

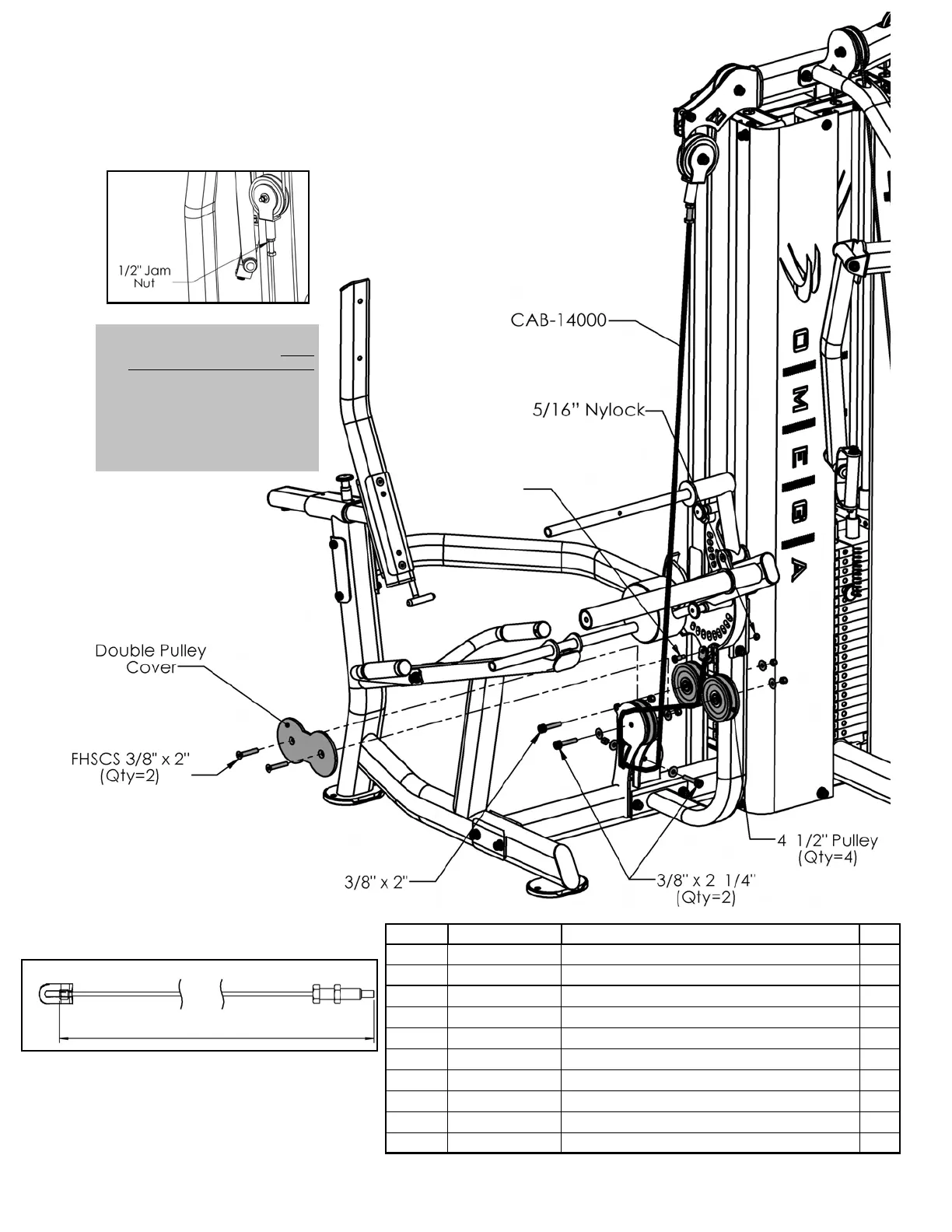

Step 22:
Figure 22
CAB-14000
83 7/8”
Note: The threaded bolt on
the end of the cable must
be threaded at least 1/2”
the Free Floater. The bolt
must also be secured with
a 1/2” Jam Nut to ensure a
s a f e a n d p r o p e r
connection.
1 3/8” Shoulder
Bolt
To Next Page
