Batca Fitness Systems 40 Omega 4 Owner's Manual
All Flat Washers and Nylocks are 3/8”
unless otherwise noted.
Step 30:

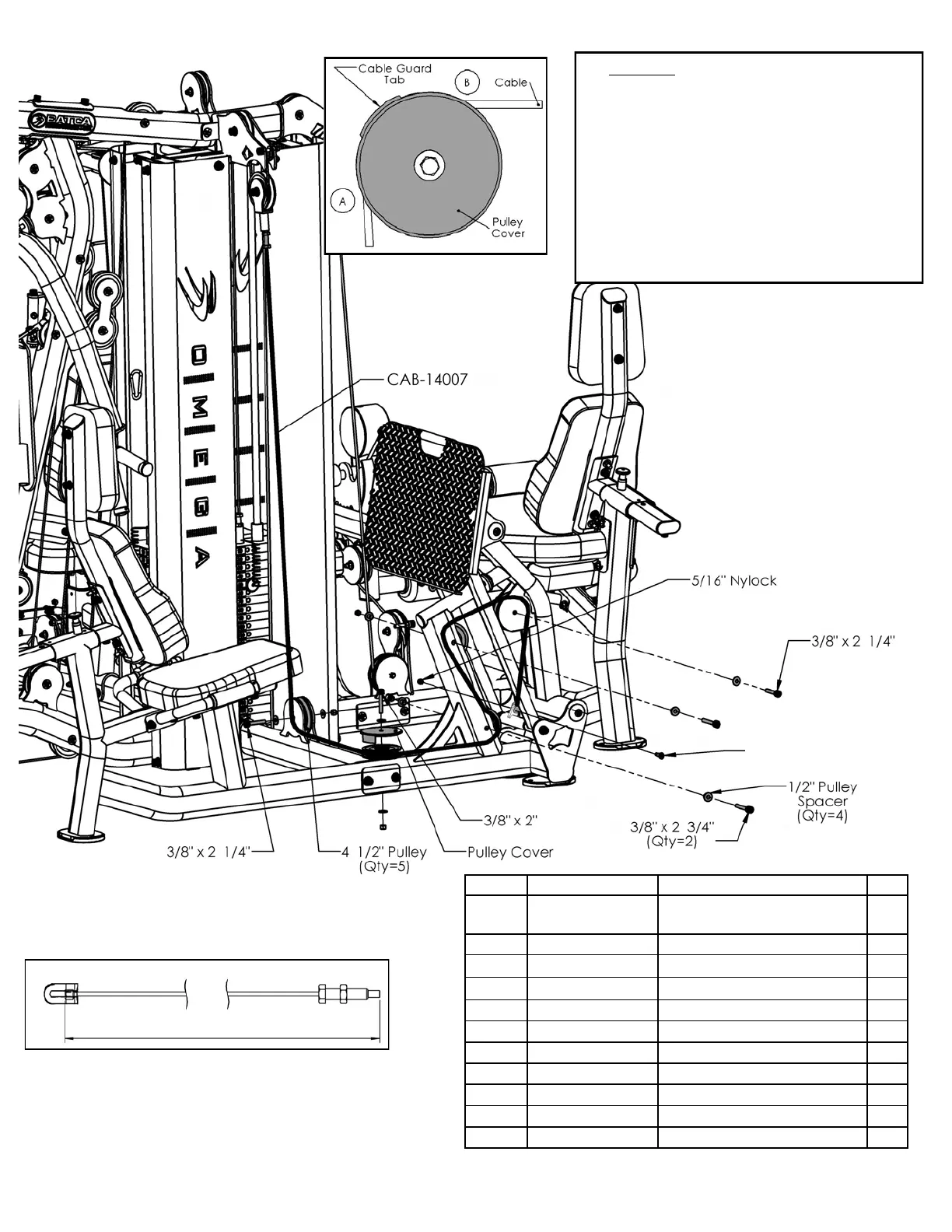

Figure 30
Item # Part # Description Qty
167 CAB-14007
Free Floater to Leg
Press Lockout 1
145 BFM-50345 Pulley Cover 1
149 BFH-50174 4 1/2” Pulley 5
151 BFP-51746 1/2” Pulley Spacer 4
154 BFH-50351 1 3/8” Shoulder Bolt 1
155 BFP-51759 SHCS 3/8” x 2” 1
156 BFP-51752 SHCS 3/8” x 2 1/4” 2
158 BFP-51750 SHCS 3/8” x 2 3/4” 2
162 BFH-50267 5/16” Nylock 1
165 BFH-50146 3/8” Flat Washer 6
166 BFH-50157 3/8” Nylock 5
Position the cable guard tab on the
Pulley Cover so that the tab prevents
the cable from coming out of it’s track
on the 4 1/2” Pulley. An example of this
positioning can be seen in the figure to
the left. The cable guard tab should be
positioned so that it is in the middle of
the cable wrap on the 4 1/2” Pulley,
between points “A” and “B”. This will
allow better protection and prevent
the cable from rubbing the cable guard
tab.
CAB-14007
135 3/8”
1 3/8” Shoulder
Bolt
To Next Page
