7) Fully tighten the support screws A and then screw the anchoring
screws B through the relevant holes in the range hood. Tighten the
anchoring screws fully into the wall.

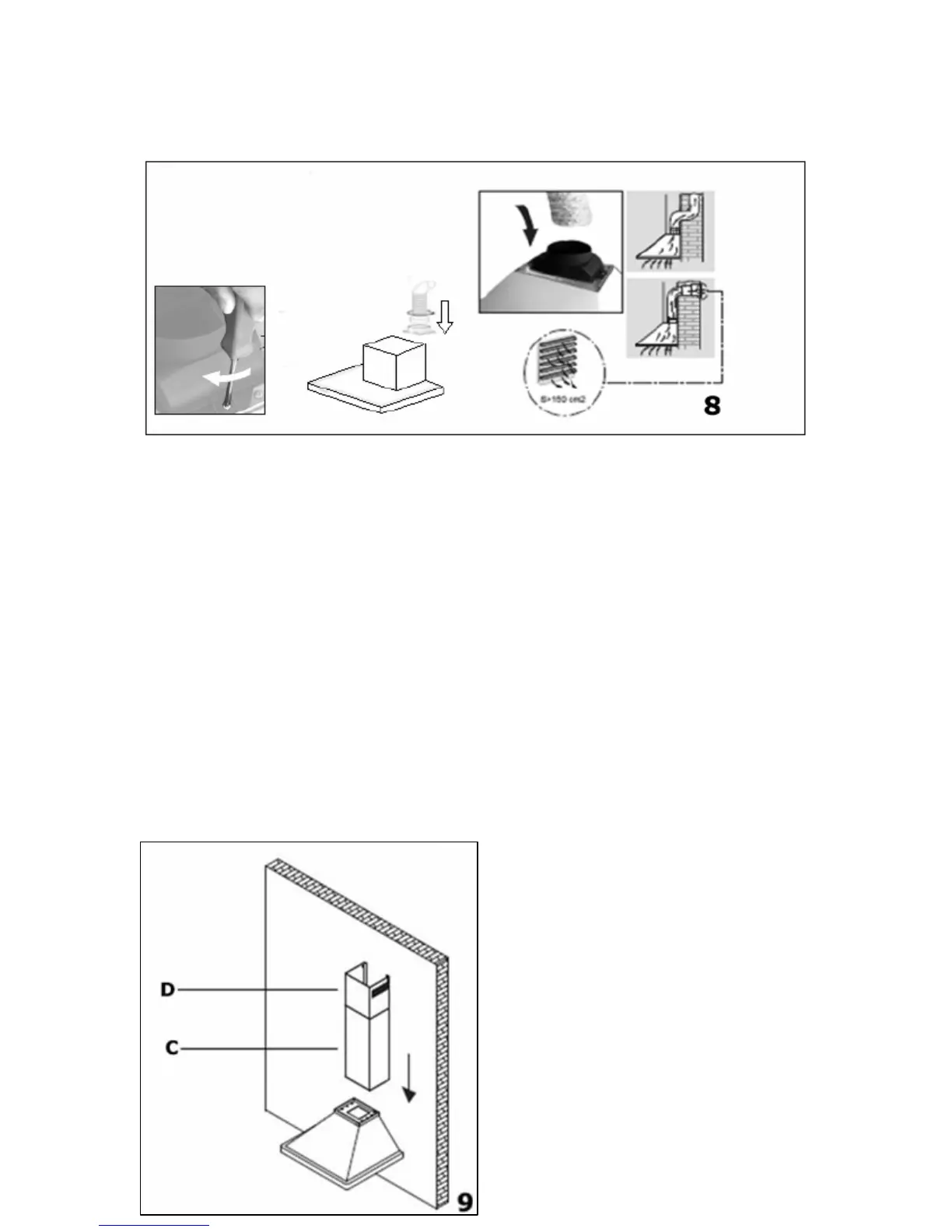

Connecting to external ducting
8) Connect the coupling to the top of the range hood, and then
connect a 150 mm ducting hose to the coupling (please note that the
ducting hose is not supplied with the appliance).
o The other end of the ducting hose should be connected to your
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend.
o For each additional 90 degree bend that is made, the maximum
distance between the coupling and your discharge outlet is
reduced by 1 metre.
Fitting the chimney
9) Take the two chimney sections
C and D.
o Rest the bottom of the
chimney section C on the
top of the hood. You should
take care to position the
tabs on the chimney
section into the rear of the
hood.
