o Mark the side measurement of both sides of chimney section C on
the wall with a pencil.

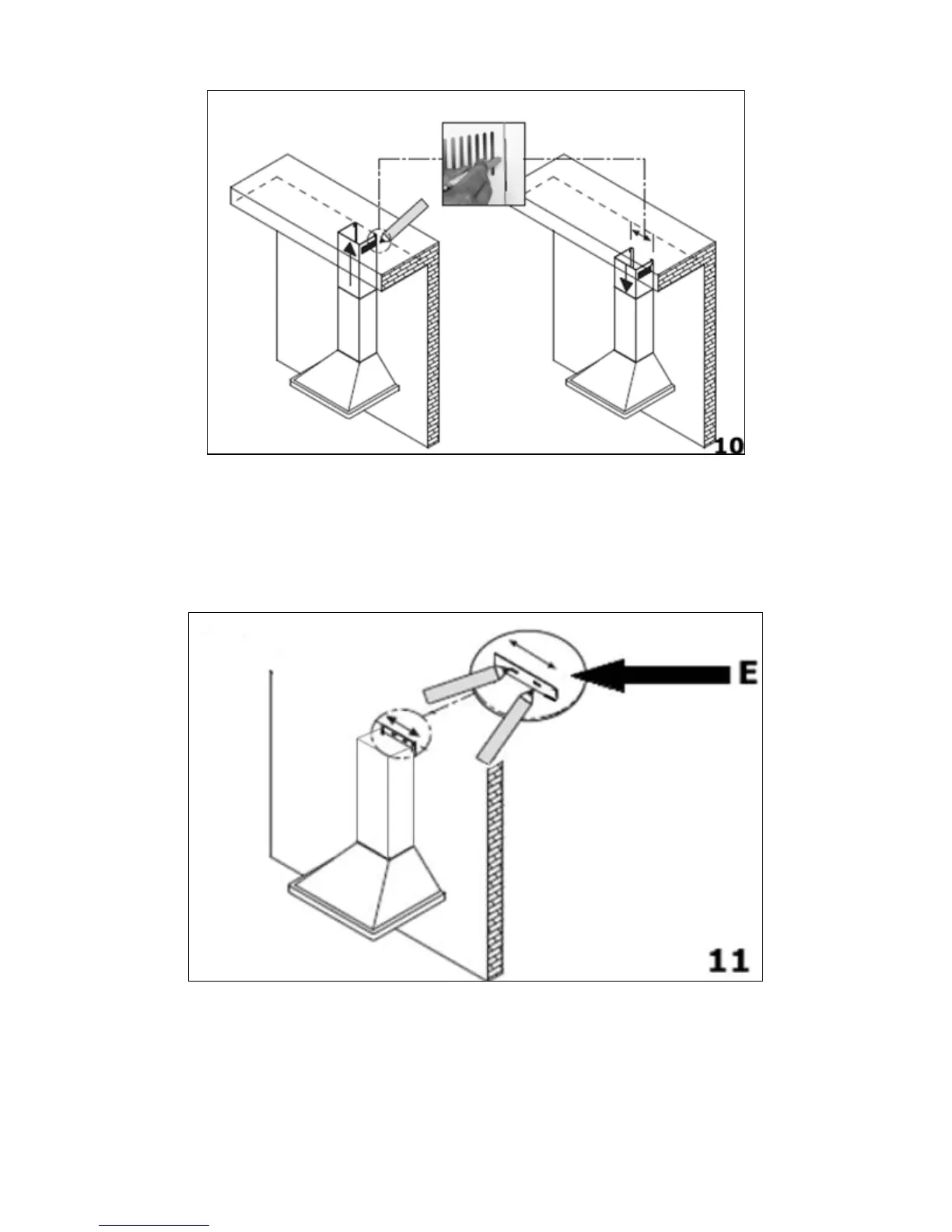

10) Lift chimney section D upwards until it reaches the ceiling. You
must ensure that it is perpendicular to the hood.
o Mark the side measurements of both sides of chimney section D
on the wall with a pencil and then remove chimney section D.
11) Take the flat bracket E and place it between the two pencil marks
that you made in step 9.
o Keeping the bracket in contact with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the
bracket.
27
