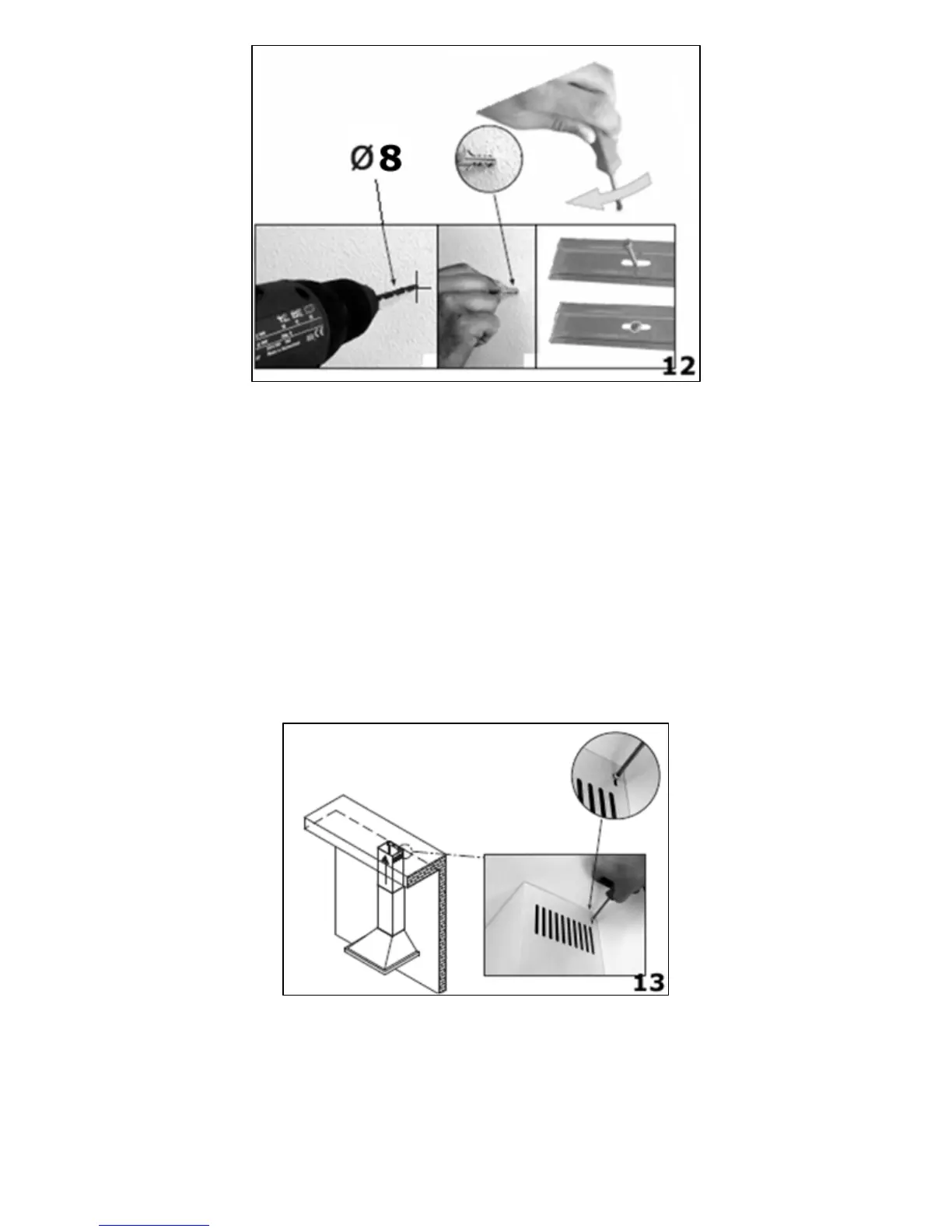

12) Using an 8 mm drill bit, drill out two holes on the pencil markings
that you made in step 11. Insert rawl plugs into the holes and then
use a screwdriver to secure the fixing bracket to the wall.
o Refit chimney section C to the hood and fix it onto the hood
using the two screws that are supplied.
o Secure the top of chimney section C to the flat bracket, using
the screws provided.
o Slide chimney section D inside of chimney section C. Then
secure the L shaped bracket to the wall, using the same method
as you have just used to secure the lower bracket.
13) Lift chimney section D up to the ceiling and secure it to the L
shaped bracket using the screws provided.
28
