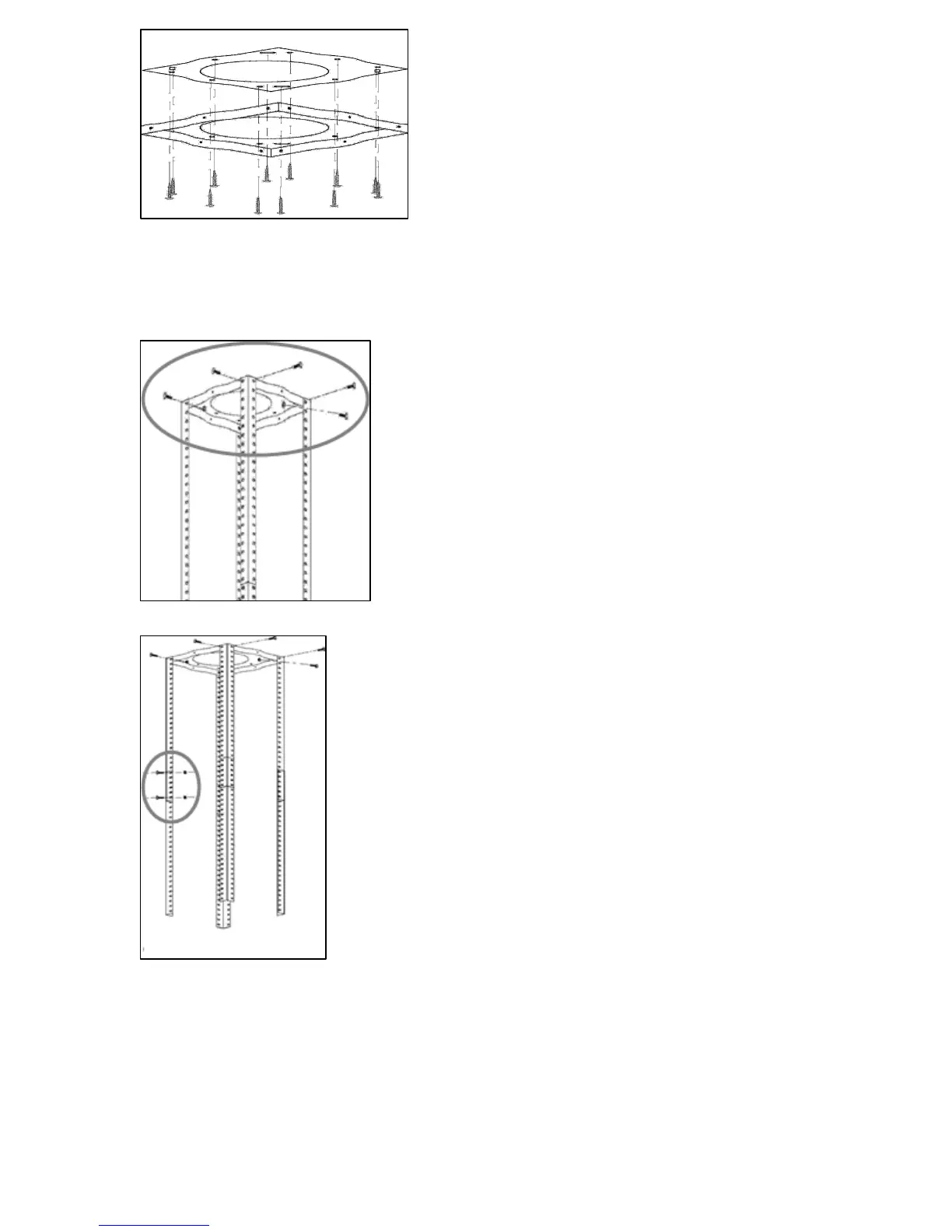

1) Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
o The hanging plate should be
securely fixed to the ceiling, using
the 12 x ST6 (40 mm) screws.
o Depending on the surface of the ceiling that you are fixing the
hanging plate to, you may need to use 8 x expansion bolts (for
concrete).
2) Fix the angle bars to the hanging plate,
using the 8 x M4 nuts and bolts with metal
washers.
3) Extend the angle bars to the required height
and then fix them in position using the 16 x M4
nuts and bolts with metal washers.
o IMPORTANT: The angle bars must have an
overlap of AT LEAST 100 mm.
